| Part number | 182.835 |
|---|---|
| Motor Type | AC |
| Phases | 3 |
| Frequency | 50 Hz |
| Nominal voltage | 400 V |
| Nominal power | 150 W |
| Nominal speed | 2800 rpm |
| Nominal continuous current | 0.46 A |
| Nominal continuous torque | 0.65 Nm |
| Starting current | 1.15 A |
| Input power | 273 W |
| Capacitor value | - |
| Starting torque full load | 200% |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP20 (VENT) / IP54 (TE/TFC) |
| Enclosure | Ventilated / Enclosed |
| Insulation class | F |
| Type | Permanent Capacitor, Asynchronous |
| Direction | Bi-directional |
| Motor Poles | 2 |
| Stack length | 46 mm |
| Motor length | 158 mm |
| Weight | 5.40 Kg |
| Weight (kg) | 5.40 |

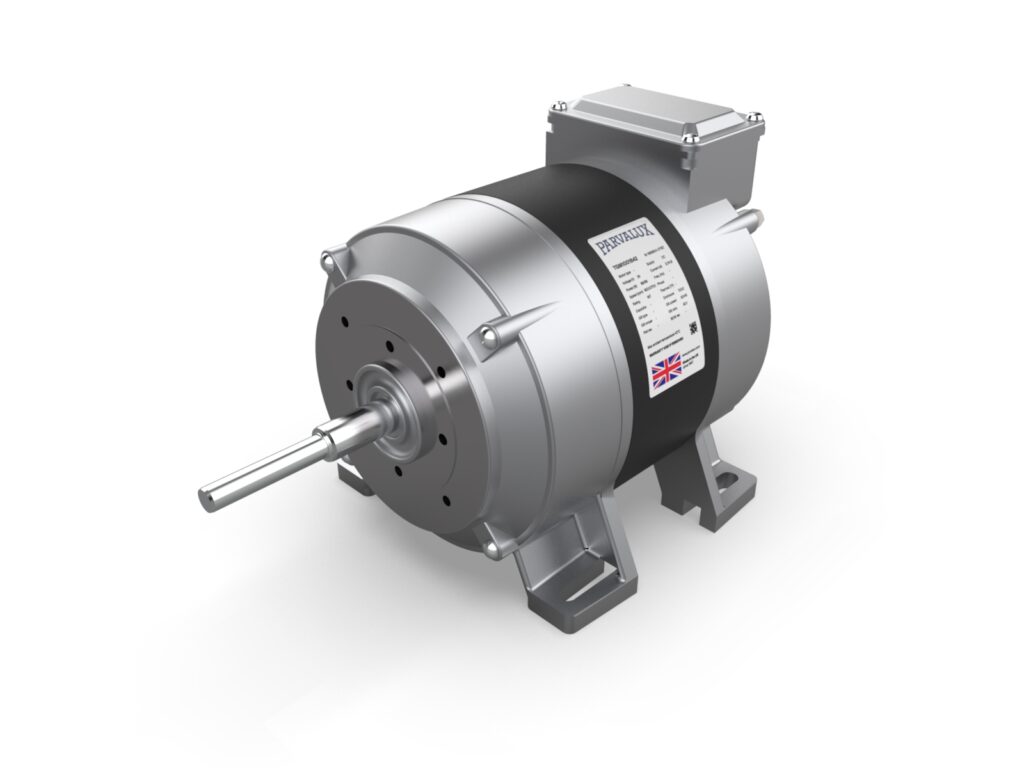

SD18 400V 2800 RPM 3 PHASE 50Hz
Part No:182.835
L: 158.0 × W: 133.0 × H: 135.0mm
SD18 400V 2800 RPM 3 PHASE 50 Hz - AC motor - 400 V - 150 W - Delivers up to 0.65 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
SD18 400V 2800 RPM 3 PHASE 50 Hz - AC motor - 400 V - 150 W - Delivers up to 0.65 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
