| Part number | 775299 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 110 V |
| Nominal power | 25 W |
| No load speed | 3849 rpm |
| No load current | 0.05 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 0.34 A |
| Nominal continuous torque | 0.08 Nm |
| Max intermittent torque | 0.11 Nm |
| Stall current | 1.3 A |
| Stall torque | 0.30 Nm |
| Maximum efficiency | 62% |
| Thermal resistance Ra | 72.0 Ohms |
| Speed constant | 34 rpm/V |
| Torque constant | 0.260 Nm/A |
| Speed torque gradient | 13485 rpm/Nm |
| Rotor inertia | 523 gcm² |
| Radial load | 110 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 24 mm |
| Motor length | 95 mm |
| Weight | 0.60 Kg |
| Weight (kg) | 0.6 |

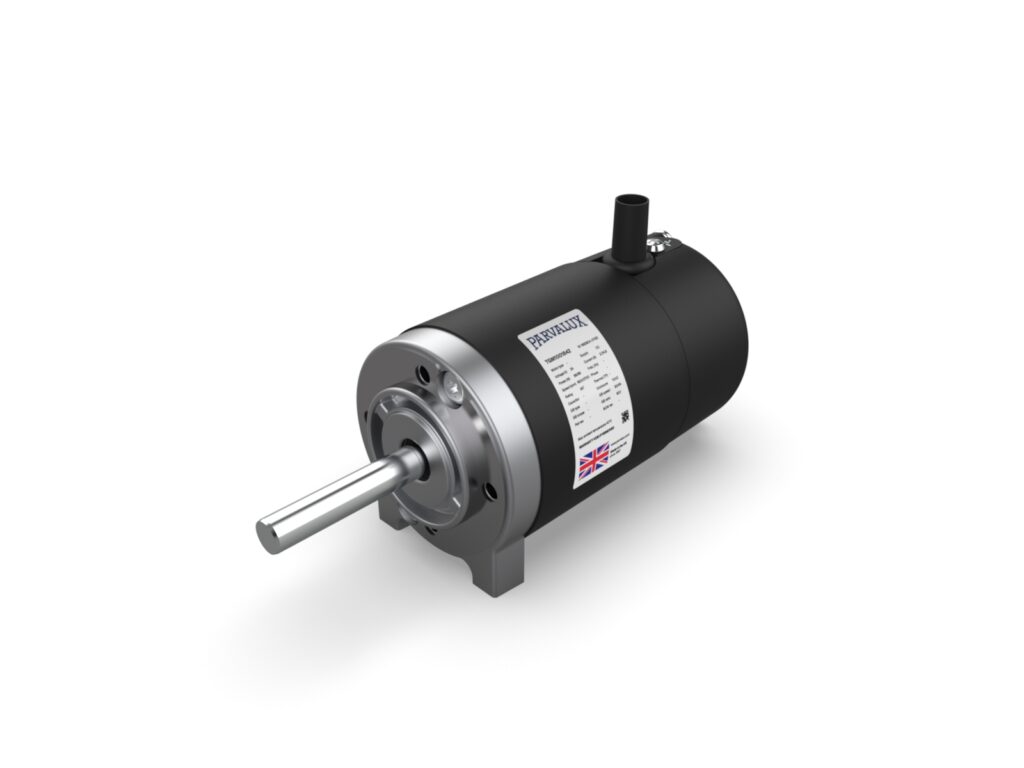

PM8 110V 3000 RPM
Part No:775299
L: 95 × W: 56 × H: 56mm
PM8 110V 3000 RPM - PMDC motor - 110 V - 25 W - Delivers up to 0.11 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux PM8 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 220V DC and output power up to 25 Watts. It is rated for nominal continuous torque up to 0.08 Nm (S1) and maximum intermittent torque up to 0.11 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
