| Part number | 774714 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 110 V |
| Nominal power | 141 W |
| No load speed | 3856 rpm |
| No load current | 0.18 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 2.0 A |
| Nominal continuous torque | 0.45 Nm |
| Max intermittent torque | 0.58 Nm |
| Stall current | 10.4 A |
| Stall torque | 2.6 Nm |
| Maximum efficiency | 72% |
| Thermal resistance Ra | 10.4 Ohms |
| Speed constant | 35 rpm/V |
| Torque constant | 0.250 Nm/A |
| Speed torque gradient | 1470 rpm/Nm |
| Rotor inertia | 2830 gcm² |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 57 mm |
| Motor length | 146 mm |
| Weight | 2.50 Kg |
| Weight (kg) | 2.5 |

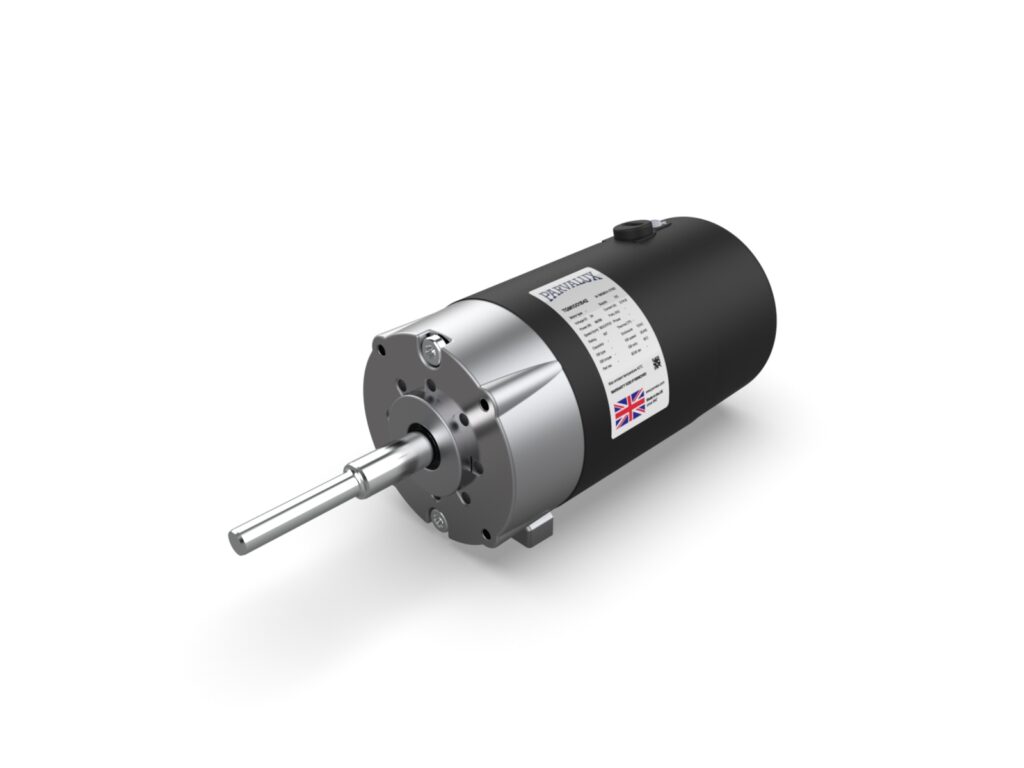

PM4 110V 3000 RPM
Part No:774714
L: 146 × W: 77 × H: 77mm
PM4 110V 3000 RPM - PMDC motor - 110 V - 141 W - Delivers up to 0.58 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux PM4 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 220v DC and output power up to 141 Watts. It is rated for nominal continuous torque up to 0.45 Nm (S1) and maximum intermittent torque up to 0.58 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
