| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal continuous torque | 8.0 Nm |
| Max intermittent torque | 12.4 Nm |
| Nominal power | 182 W |
| Nominal speed | 300 rpm |
| Nominal continuous current | 23.5 A |
| No load speed | 148 rpm |
| No load current | 1.90 A |
| Stack length | 57 mm |
| Motor IP rating | IP21 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 30:1 ratio |
| Gear Material | Bronze |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 61% |
| Gearbox Axial Load | 300 N |
| Gearbox Radial Load | 350 N |
| Backlash | 10-25 arc.min |
| Max ambient temperature | 40°C |
| Weight | 3.4 kg |
| Enclosure | Ventilated |
| Insulation class | F |
| Reversible | Yes |
| Motor length | 159 mm |
| Gearbox length | 78 mm |
| Weight (kg) | 3.4 |

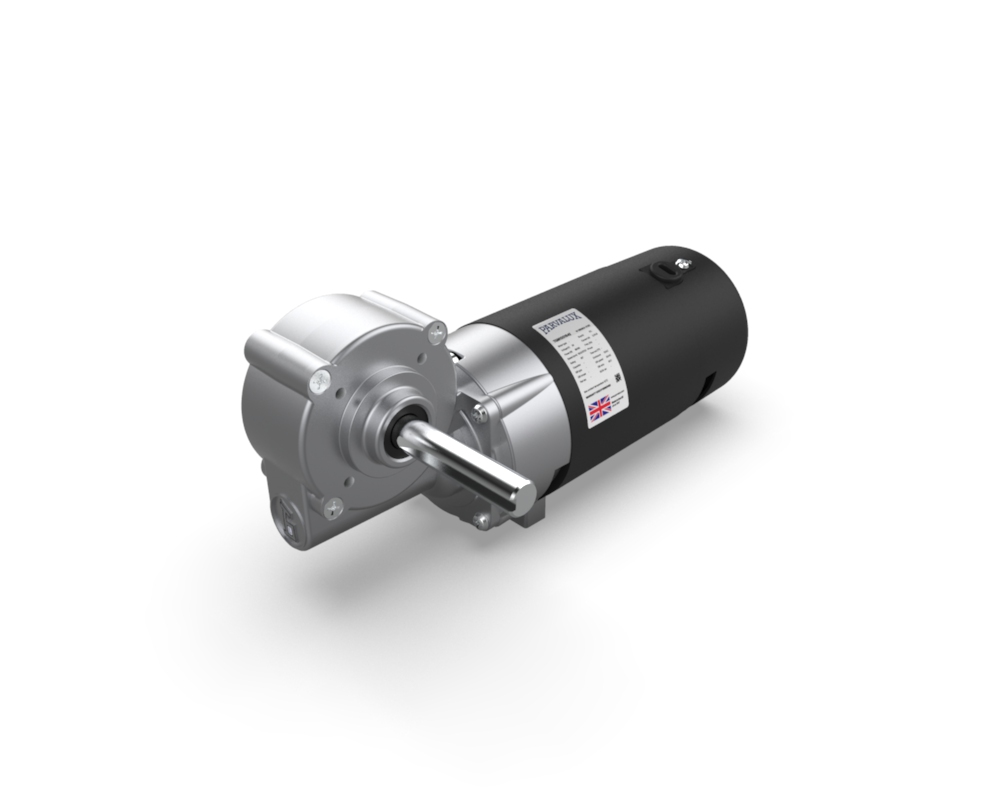

PM2 12V 3000 RPM – M Box 30:1 Bronze
Part No:212M30B
L: 238 × W: 77 × H: 100mm
PM2 12V 3000 RPM - M Box 30:1 Bronze - PMDC geared right-angle motor - 12 V - Delivers up to 12.4 Nm of torque (S2 - 15 minutes) - 30:1 gear ratio with Bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM2 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 220v DC and output power up to 182 Watts. When combined with our M gearbox, the wide selection of gear ratios, as well as the choice of bronze or composite gears, allows for a nominal continuous output torque of up to 8.0 Nm (S1) and maximum intermittent torque of up to 13.2 Nm (S2 - 15min). Contact our sales team today to discuss the additional options available with this unit, including brakes, encoders, output shaft customisation, etc.
