| Part number | 775332 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 110 V |
| Nominal power | 101 W |
| No load speed | 3627 rpm |
| No load current | 0.12 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 1.2 A |
| Nominal continuous torque | 0.32 Nm |
| Max intermittent torque | 0.53 Nm |
| Stall current | 6.4 A |
| Stall torque | 1.90 Nm |
| Maximum efficiency | 80% |
| Thermal resistance Ra | 17.2 Ohms |
| Speed constant | 33 rpm/V |
| Torque constant | 0.30 Nm/A |
| Speed torque gradient | 1914 rpm/Nm |
| Rotor inertia | 1260 gcm² |
| Radial load | 150 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 44 mm |
| Motor length | 126 mm |
| Weight | 1.60 Kg |
| Weight (kg) | 1.6 |

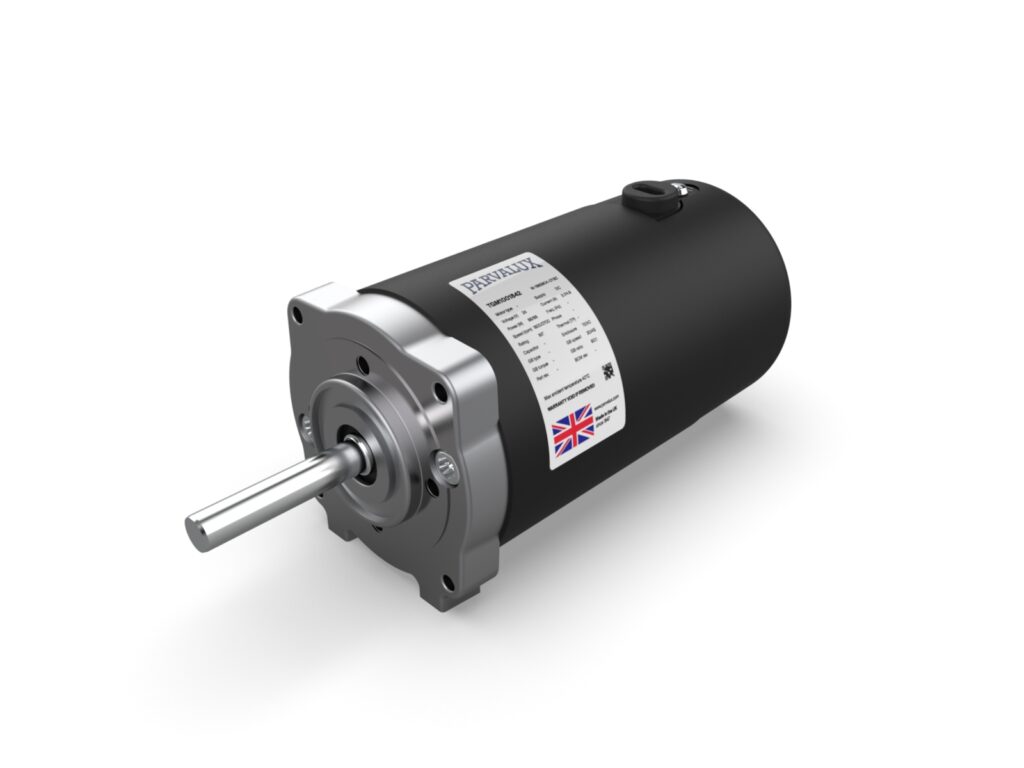

PM11 110V 3000 RPM
Part No:775332
L: 126 × W: 66 × H: 66mm
PM11 110V 3000 RPM - PMDC motor - 110 V - 101 W - Delivers up to 0.53 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux PM11 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 220v DC and output power up to 101 Watts. It is rated for nominal continuous torque up to 0.32 Nm (S1) and maximum intermittent torque up to 0.53 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
