GB28 15:1 Bronze

Type

Worm Wheel

Gear Ratio

15

Nm (Cont.)

5

Nm (Int)

8

Part No:735904

L: 88.0 × W: 63.0 × H: 92.0mm

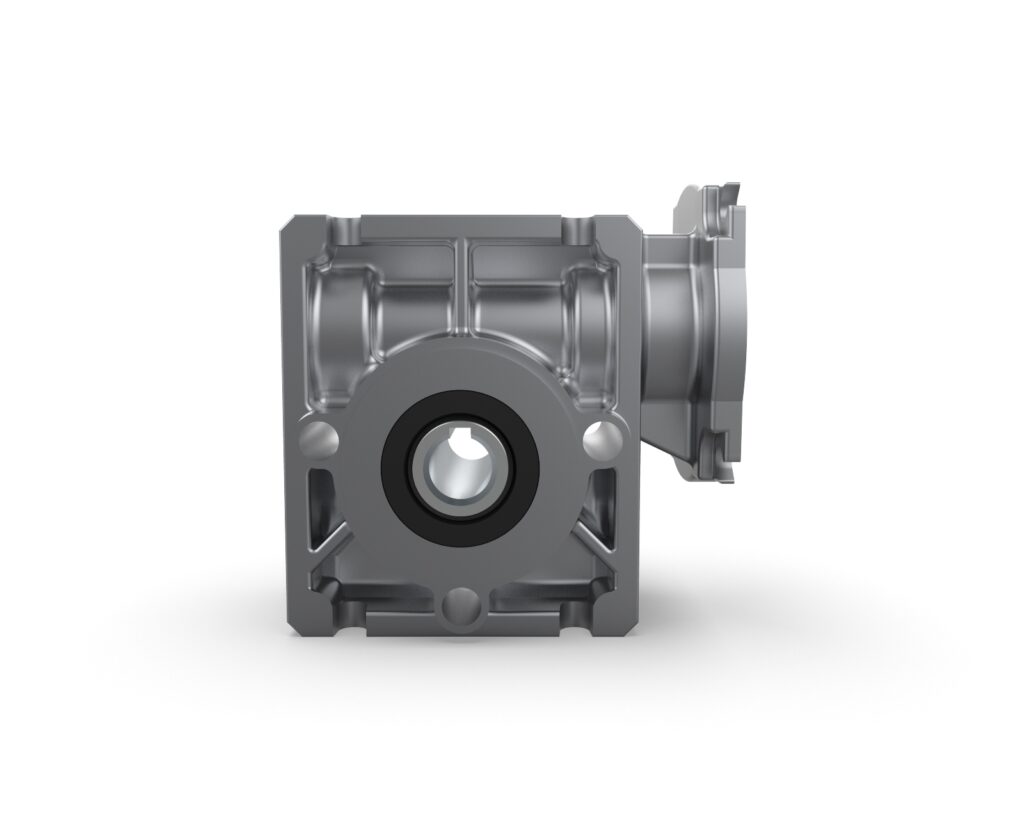

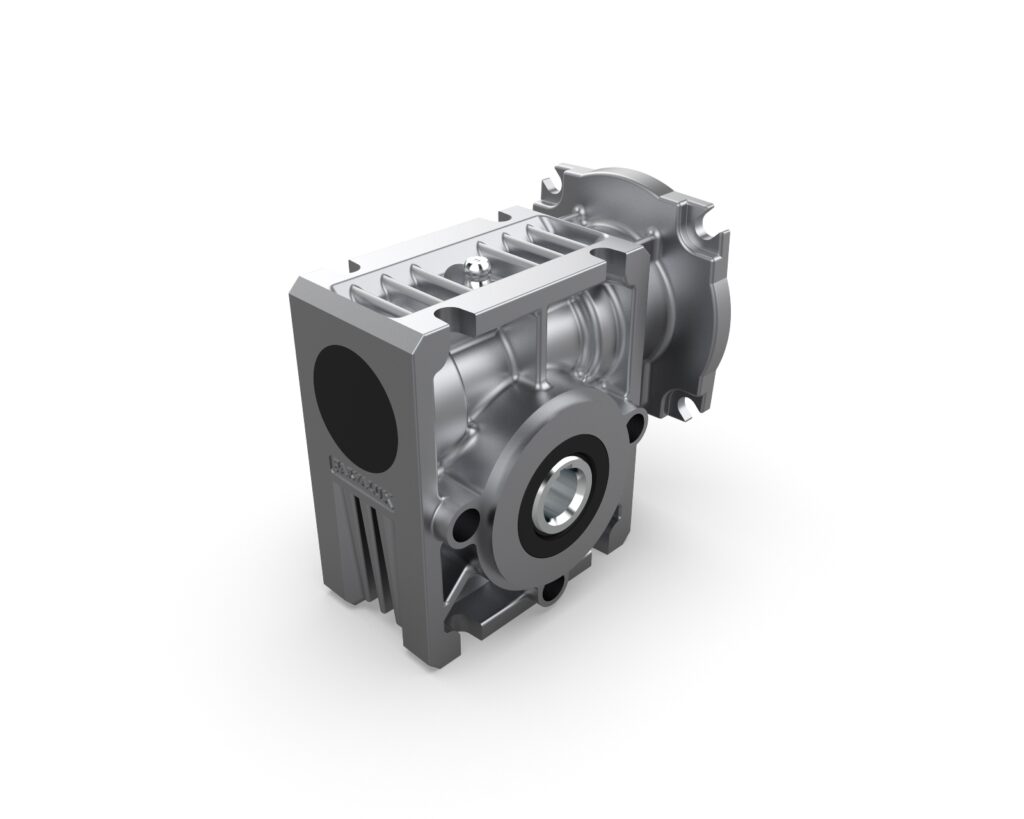

GB28 15:1 Bronze - Right-angle worm Wheel gearbox - 15:1 gear ratio - Delivers up to 8.0 Nm of torque (S2 - 15 minutes) - Bronze gears - Available as part of the modular range. Configure online and order in quantities of up to 10 pieces direct from our website

Gearbox part number 735904
Gearbox ratio 15:1
Gearbox orientation Right angle
Gearbox type Worm Wheel
Gearbox gear material Bronze
Gearbox stages 1
Gearbox continuous torque 5.0 Nm
Gearbox intermittent torque 8.0 Nm
Gearbox axial load 300 N
Gearbox radial load 400 N
Gearbox efficiency 75%
Gearbox backlash 10-25 arc.min
Gearbox length 88 mm
Gearbox weight 0.83 Kg
Weight (kg) 0.83
The Parvalux GB28 is a right-angle, worm Wheel gearbox. With available ratios ranging from 15 - 60:1, it offers a wide range of output speeds and a capability of up to 5 Nm torque in continuous operation and 8 Nm in intermittent operation. The GB28 gearbox is available with bronze gears, offering efficiencies of up to 75%. It is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors, enabling you to assemble the perfect combination of motor and gearbox for your application
