| Part number | 781106-735896 |
|---|---|
| Voltage | 12 V |
| Nominal power | 236 W |
| Nominal speed | 42 rpm |
| Combination gear ratio | 60:1 |
| Combination gear material | Composite |
| Nominal torque | 35.1 Nm |
| Intermittent torque | 58.5 Nm |
| Motor part number | 781106 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 236 W |
| Motor output speed | 2500 rpm |
| Motor continuous current | 33.2 A |
| Motor no load speed | 3750 rpm |
| Motor no load current | 3.4 A |
| Motor continuous torque | 0.90 Nm |
| Motor intermittent torque | 1.50 Nm |
| Motor length L | 183 mm |
| Motor weight | 4.00 Kg |
| Gearbox part number | 735896 |
| Gearbox ratio | 60:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 50.0 Nm |
| Gearbox max intermittent torque | 80.0 Nm |
| Gearbox efficiency | 65% |
| Gearbox gear material | Composite |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 138 mm |
| Gearbox weight | 2.30 Kg |
| Weight (kg) | 6.4 |

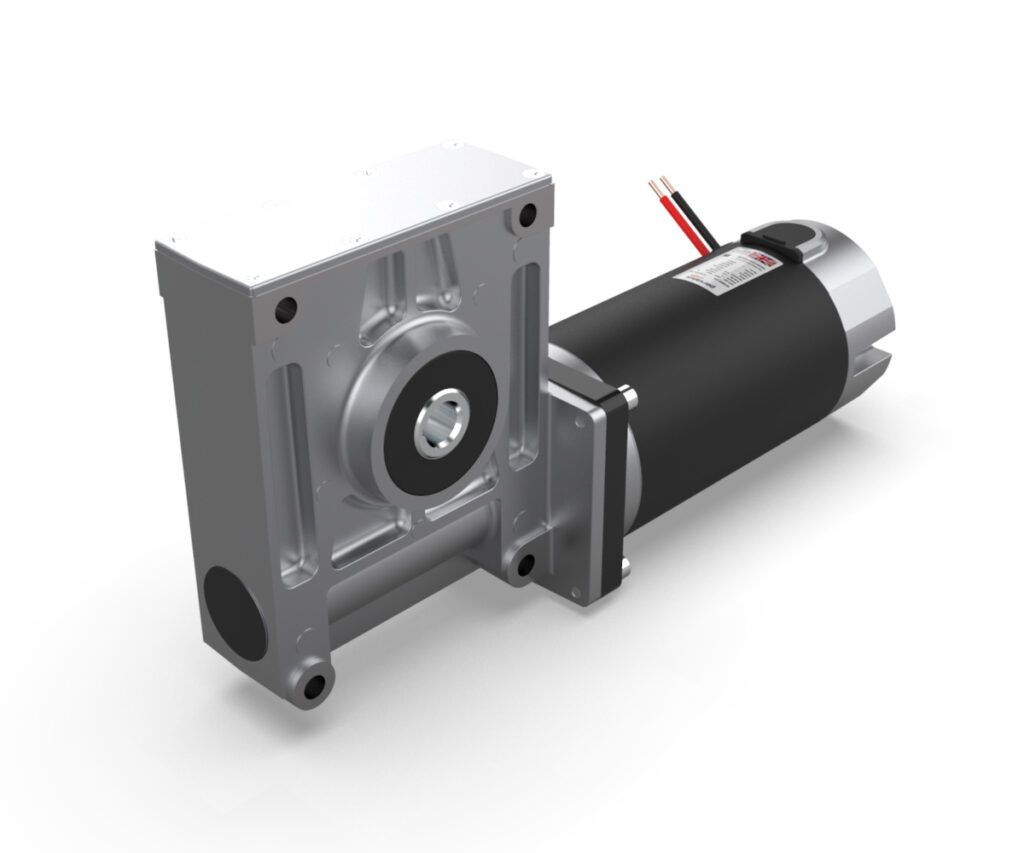

BRx90-75 12V 2500RPM – GB9 60:1 Composite
Part No:781106-735896
L: 333 × W: 90 × H: 180mm
BRx90-75 12V 2500 RPM - GB9 60:1 Bronze - PMDC right-angle geared motor - 12 V - 236 W - Delivers up to 58.5 Nm of torque - Modular combination - configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £896.20 / unit |
| 5 - 10 | £672.15 / unit |
| 10+ | Please Enquire |
The Parvalux BRx90-75-GB9 is part of our modular range, with this particular combination utilising a 12V, 2500 RPM DC motor and a composite gear, 60:1 ratio right-angle gearbox. The pairing of this motor and gearbox offers 42 rpm and up to 58.5 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
