| Part number | 781095-735902 |
|---|---|
| Voltage | 12 V |
| Nominal power | 157 W |
| Nominal speed | 50 rpm |
| Combination gear ratio | 60:1 |
| Combination gear material | Bronze |
| Nominal torque | 15 Nm |
| Intermittent torque | 26.4 Nm |
| Motor part number | 781095 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 157 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 21.0 A |
| Motor no load speed | 3970 rpm |
| Motor no load current | 1.80 A |
| Motor continuous torque | 0.50 Nm |
| Motor intermittent torque | 0.88 Nm |
| Motor length (L) | 146 mm |
| Motor weight | 2.10 Kg |
| Gearbox part number | 735902 |
| Gearbox ratio | 60:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 30.0 Nm |
| Gearbox max intermittent torque | 48.0 Nm |
| Gearbox efficiency | 50% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 110 mm |
| Gearbox weight | 1.50 Kg |
| Weight (kg) | 5.60 |

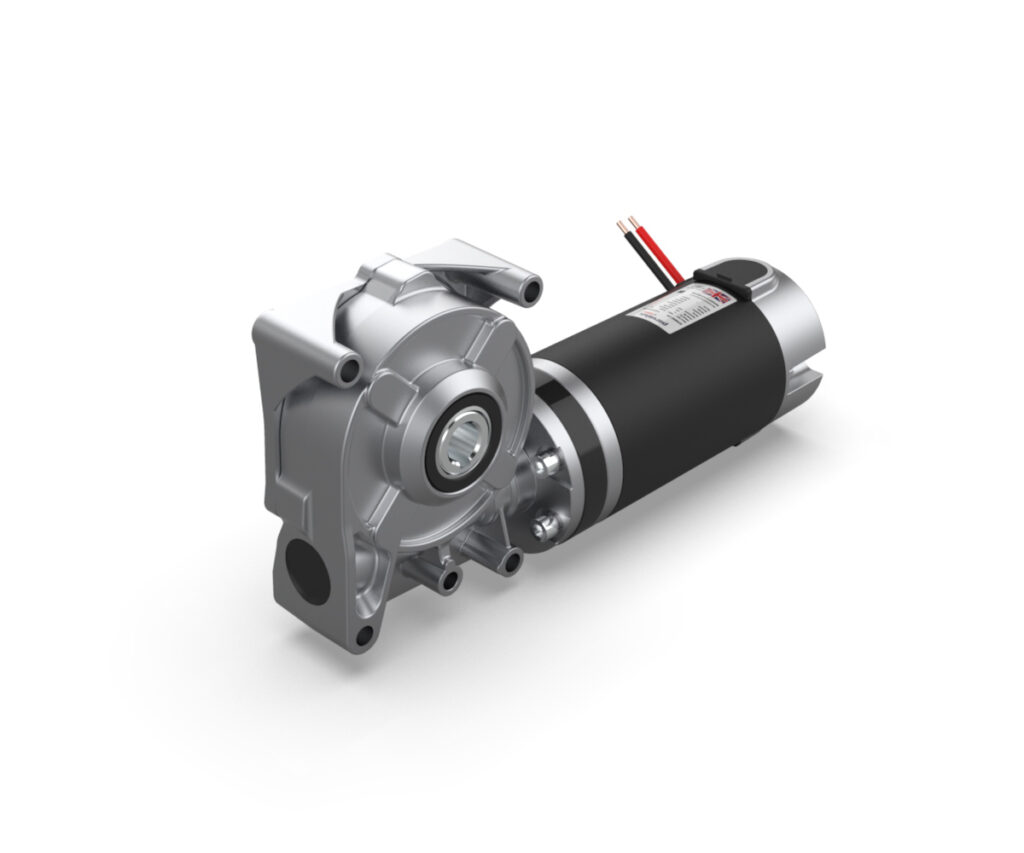

BRx70-60 12V 3000RPM – GB12 60:1 Bronze
Part No:781095-735902
L: 270.0 × W: 81.0 × H: 138.0mm
BRx70-60 12V 3000 RPM - GB12 60:1 Bronze - PMDC right-angle geared motor - 12 V - 157 W - Delivers up to 26.4 Nm of torque - Modular combination - configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £934.24 / unit |
| 5 - 10 | £700.68 / unit |
| 10+ | Please Enquire |
The Parvalux BRx70-60-GB12 is part of our modular range, with this particular combination utilising a 12V, 3000 RPM DC motor and a composite gear, 60:1 ratio right-angle gearbox. The pairing of this motor and gearbox offers 50 rpm and up to 26.4 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
