BRx70-40 24V 3000RPM – GB12 30:1 Bronze

Part No:781093-735901

L: 271 × W: 90 × H: 139mm

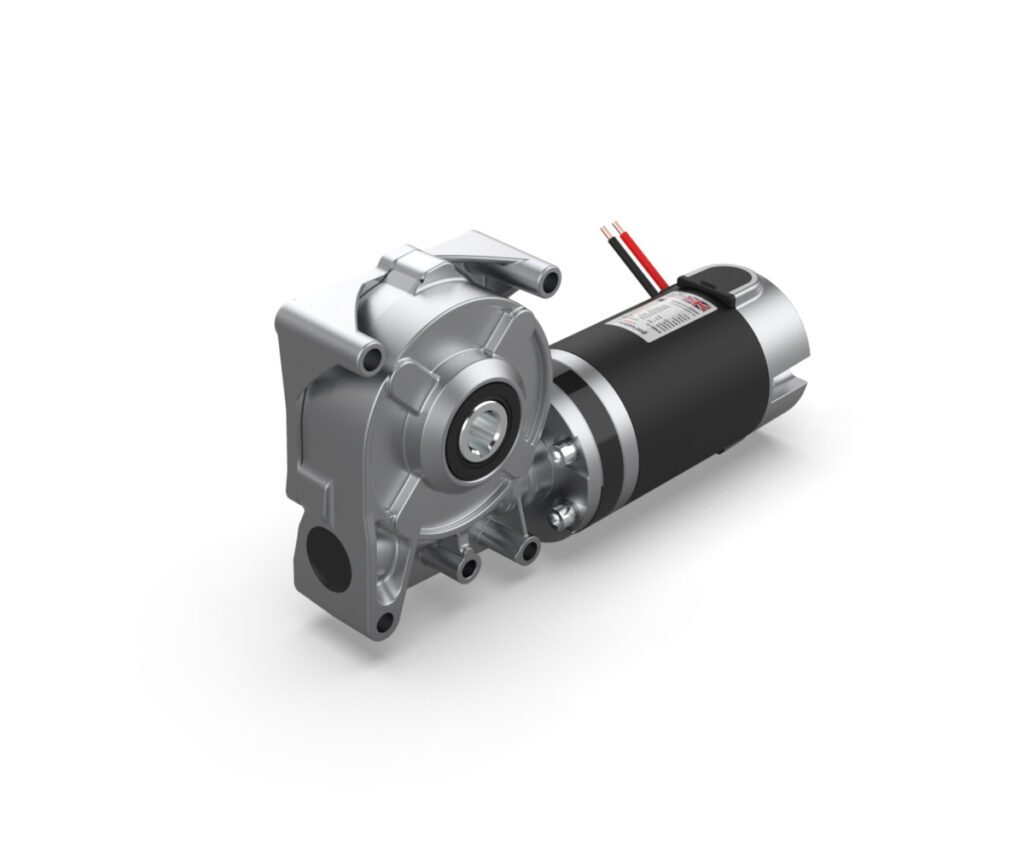

BRx70-40 24V 3000 RPM Modular PMDC motor with the GB12 30:1 Bronze gearbox
Spec overview
Motor Type PMDC
Motor Poles 2
Nominal continuous torque 4.9 Nm
Max intermittent torque 8.2 Nm
Nominal power 79 W
Stack length 40 mm
Motor IP rating IP54
Gearbox Orientation Right Angle
Gearbox Type Worm Wheel
Gearbox Ratio 30:01:00
Gear Material Bronze
Gearbox Stages 1
Gearbox Efficiency 65%
Gearbox Axial Load 600 N
Gearbox Radial Load 800 N
Weight 5.2 Kg
Enclosure Enclosed
Insulation class F
Reversible Yes
Weight (kg) 5.2

The Parvalux BRx70-40-GB12 is part of our modular range, with this particular combination utlising a 24V, 3000 RPM DC motor and a composite gear, 30:1 ratio right-ange gearbox. The pairing of this motor and gearbox offers 100 rpm and up to 8.2 Nm of torque in intermittent operation (S2 – 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
