| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal continuous torque | 2.8 Nm |
| Max intermittent torque | 4.7 Nm |
| Nominal power | 79 W |
| Stack length | 40 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 15:01 |
| Gear Material | Bronze |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 75% |
| Gearbox Axial Load | 600 N |
| Gearbox Radial Load | 800 N |
| Weight | 5.2 Kg |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Weight (kg) | 5.2 |
BRx70-40 12V 3000RPM – GB12 15:1 Bronze
Part No:781092-735900
L: 271 × W: 90 × H: 139mm

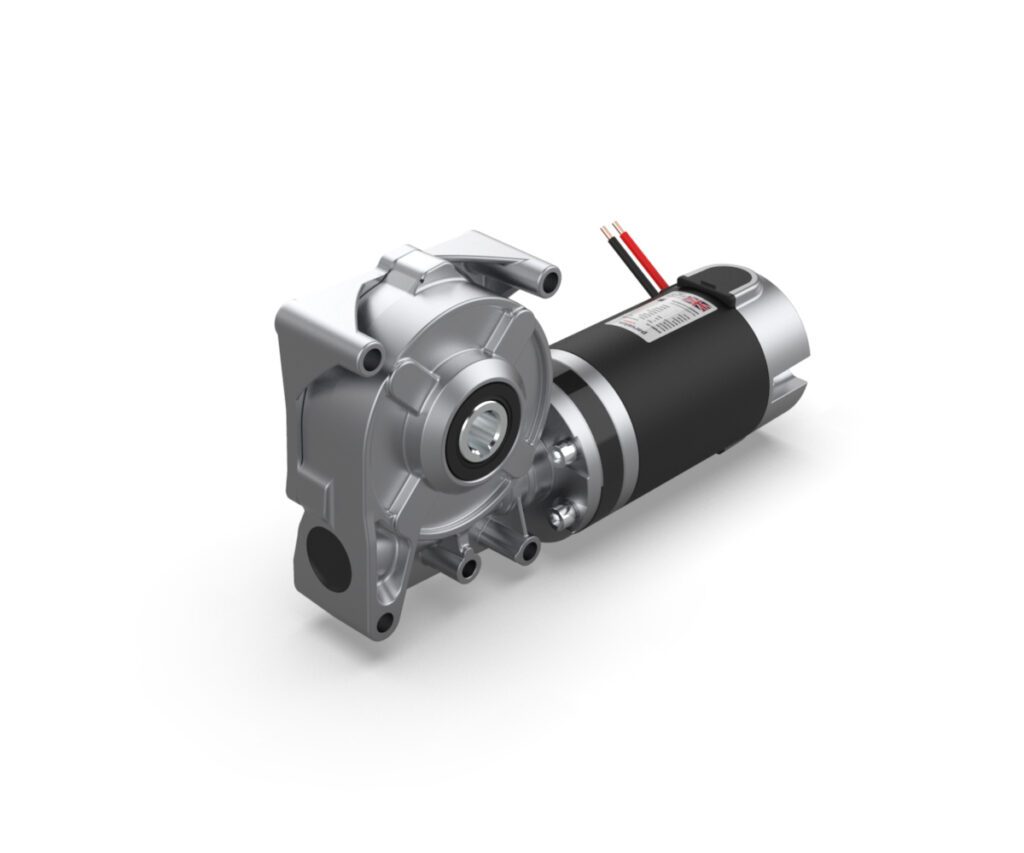

BRx70-40 12V 3000 RPM Modular PMDC motor with the GB12 15:1 Bronze gearbox
The Parvalux BRx70-40-GB12 is part of our modular range, with this particular combination utilising a 12V, 3000 RPM DC motor and a composite gear, 15:1 ratio right-angle gearbox. The pairing of this motor and gearbox offers 200 rpm and up to 4.7 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
