| Part number | 781088 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 12 V |
| Nominal power | 79 W |
| No load speed | 3665 rpm |
| No load current | 0.70 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 9.2 A |
| Nominal continuous torque | 0.27 Nm |
| Max intermittent torque | 0.45 Nm |
| Stall current | 38.3 A |
| Stall torque | 1.16 Nm |
| Maximum efficiency | 76% |
| Thermal resistance Ra | 0.745 Ohms |
| Speed constant | 303.1 rpm/V |
| Torque constant | 0.03 Nm/A |
| Speed torque gradient | 3181 rpm/Nm |
| Rotor inertia | 9.3 x 10¯⁵ Kgcm² |
| Radial load | 150 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 55 mm |
| Motor length | 125 mm |
| Weight | 1.16 Kg |
| Weight (kg) | 1.16 |

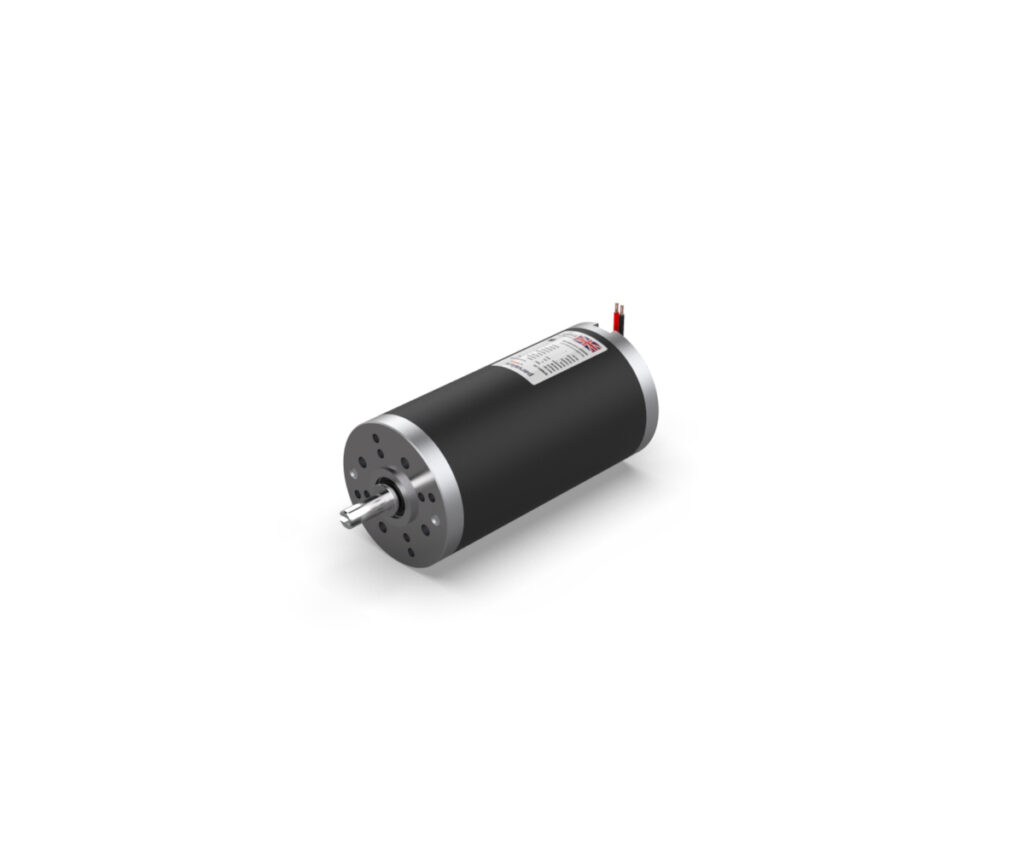

BRx63-55 12V 3000 RPM
Part No:781088
L: 125.0 × W: 63.0 × H: 63.0mm
BRx63-55 12V 3000 RPM - PMDC motor - 12 V - 79 W - Delivers up to 0.45 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux BRx63-55 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 48V DC and output power up to 85 Watts. It is rated for nominal continuous torque up to 0.27 Nm (S1) and maximum intermittent torque up to 0.45 Nm (S2 - 15 mins). As part of the modular range, the BRx63 can be configured and ordered in quantities of up to 10 pieces direct from our website.
