| Part number | 787114 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 48 V |
| Nominal power | 69 W |
| No load speed | 3838 rpm |
| No load current | 0.16 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 2.2 A |
| Nominal continuous torque | 0.22 Nm |
| Max intermittent torque | 0.35 Nm |
| Stall current | 9.5 A |
| Stall torque | 1.00 Nm |
| Maximum efficiency | 80% |
| Thermal resistance Ra | 3.42 Ohms |
| Speed constant | 80.8 rpm/V |
| Torque constant | 0.10 Nm/A |
| Speed torque gradient | 4411 rpm/Nm |
| Rotor inertia | 5.7 x 10¯⁵ Kgcm² |
| Radial load | 90 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 58 mm |
| Motor length | 125 mm |
| Weight | 1.16 Kg |
| Weight (kg) | 1.16 |

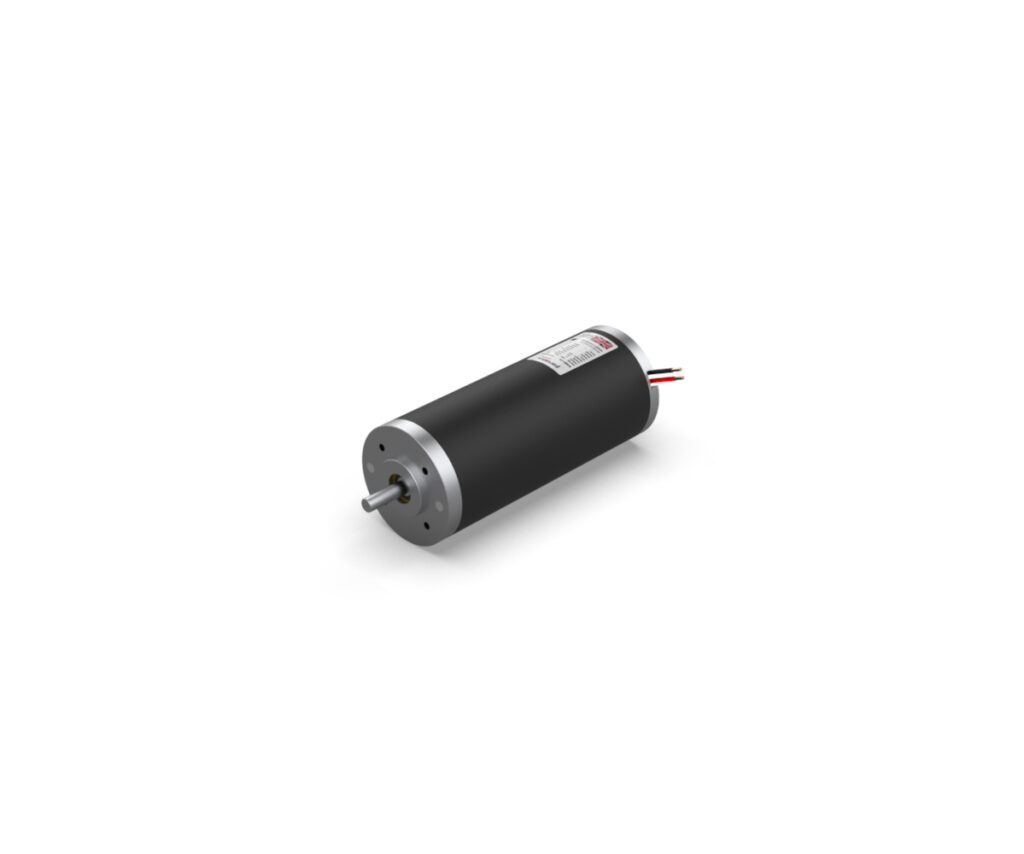

BRx52-58 48V 3000 RPM
Part No:787114
L: 125.0 × W: 52.0 × H: 52.0mm
BRx52-58 48V 3000 RPM - PMDC motor - 48 V - 69 W - Delivers up to 0.35 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux BRx52-58 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC and output power up to 69 Watts. It is rated for nominal continuous torque up to 0.22 Nm (S1) and maximum intermittent torque up to 0.35 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
