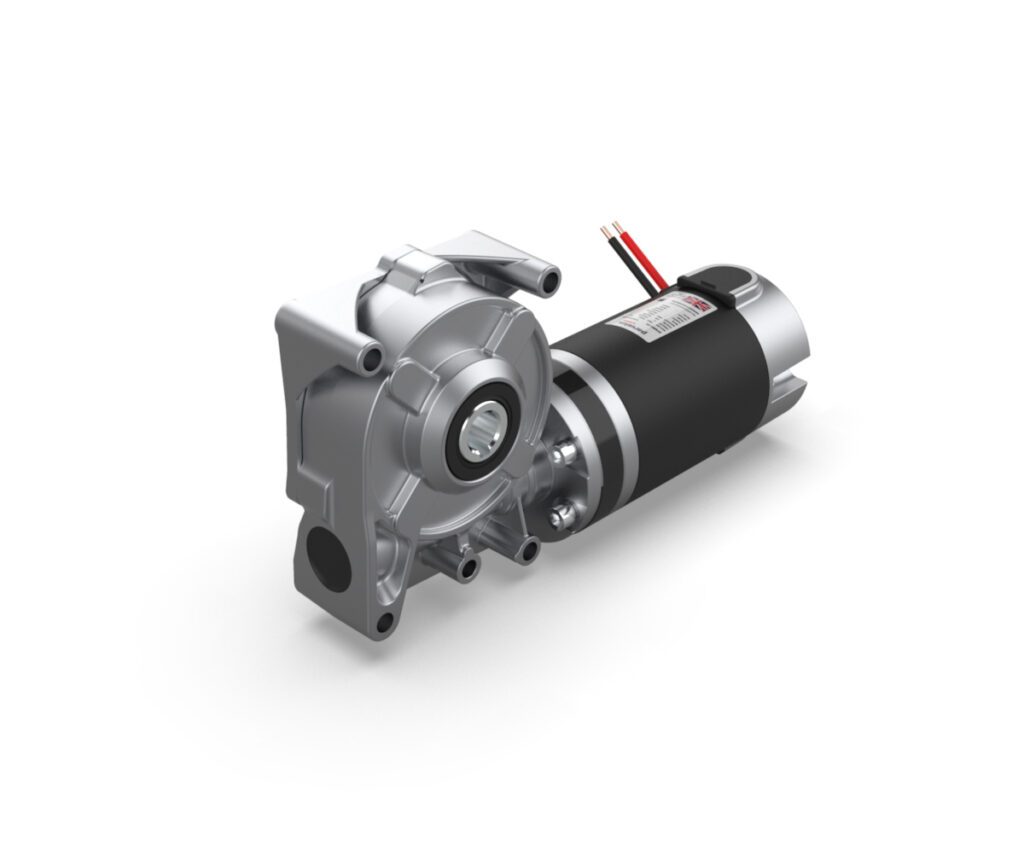

BRx70-40 48V 3000RPM – GB12 30:1 Bronze
Part No:781094-735901
L: 271 × W: 90 × H: 139mm
BRx70-40 48V 3000 RPM Modular PMDC motor with the GB12 30:1 Bronze gearboxSpec overview
| Motor Type | PMDC |
| Motor Poles | 2 |
| Nominal continuous torque | 4.9 Nm |
| Max intermittent torque | 8.2 Nm |
| Nominal power | 79 W |
| Stack length | 40 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 30:01:00 |
| Gear Material | Bronze |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 65% |
| Gearbox Axial Load | 600 N |
| Gearbox Radial Load | 800 N |
| Weight | 5.2 Kg |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Weight (kg) | 5.2 |
The Parvalux BRx70-40-GB12 is part of our modular range, with this particular combination utilising a 48V, 3000 RPM DC motor and a composite gear, 30:1 ratio right-ange gearbox. The pairing of this motor and gearbox offers 100 rpm and up to 8.2 Nm of torque in intermittent operation (S2 – 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine-tune your combination to perfectly meet the requirements of your application.
