| Part number | 776625-735894 |
|---|---|
| Spannung | 48 V |
| Nennleistung | 586 W |
| Nenndrehzahl | 267 rpm |
| Combination gear ratio | 15:1 |
| Combination gear material | Bronze |
| Nominal torque | 17.9 Nm |
| Intermittent torque | 27.6 Nm |
| Motor part number | 776625 |
| Motor type | BLDC |
| Motor voltage | 48 V |
| Motor power | 586 W |
| Motor output speed | 4000 rpm |
| Motor continuous current | 14.4 A |
| Motor no load speed | 4192 rpm |
| Motor no load current | 1.90 A |
| Motor continuous torque | 1.80 Nm |
| Motor intermittent torque | 2.50 Nm |
| Motor length (L) | 136 mm |
| Motor weight | 4.20 Kg |
| Gearbox part number | 735894 |
| Gearbox ratio | 15:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Schneckenrad |
| Gearbox max continuous torque | 50.0 Nm |
| Gearbox max intermittent torque | 80.0 Nm |
| Gearbox efficiency | 85% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 138 mm |
| Gearbox weight | 2.30 Kg |
| Gewicht (kg) | 6.80 |
PBL86-80 48V 4000RPM – GB9 15:1 Composite
Teil-Nr.:776625-735894
L: 287.0 × W: 90.0 × H: 176.0mm
PBL86-80 48V 4000 RPM - GB9 15:1 Bronze - BLDC right-angle geared motor - 48 V - 586 W - Delivers up to 27.6 Nm of torque - Modular combination - configure online and order in quantities of up to 10 pieces direct from our website
Mengenrabatte
| Menge | Preis |
|---|---|
| 1 - 4 | £1,064.40 / Einheit |
| 5 - 10 | £798.30 / Einheit |
| 10+ | Bitte anfragen |

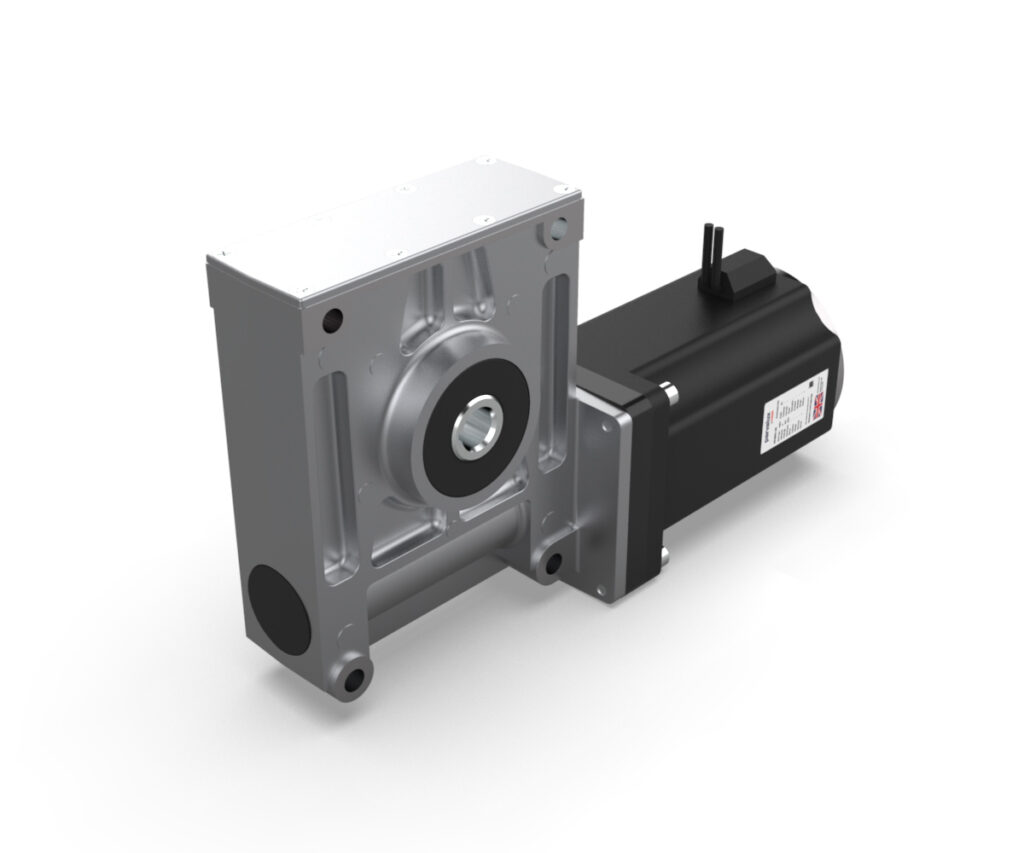

The Parvalux PBL86-80-GB9 is part of our modular range, with this particular combination utilising a 48V, 4000 RPM BLDC motor and a composite gear, 15:1 ratio right-angle gearbox. The pairing of this motor and gearbox offers 267 rpm and up to 27.6 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
