| Part number | 776625 |
|---|---|
| Motor type | Brushless |
| Nominal voltage | 48 V |
| Potencia nominal | 586 W |
| Velocidad en vacío | 4192 rpm |
| Corriente en vacío | 1.90 A |
| Velocidad nominal | 4000 rpm |
| Corriente continua nominal | 14.4 A |
| Par nominal en continuo | 1.80 Nm |
| Par intermitente máximo | 2.50 Nm |
| Corriente de pérdida | 116.00 A |
| Par de parada | 12.70 Nm |
| Máxima eficiencia | 83% |
| Thermal resistance (Ra) | 0.06 Ohms |
| Speed constant | 87.9 rpm/V |
| Torque constant | 0.11 Nm/A |
| Gradiente de par de velocidad | 345.6 rpm/Nm |
| Rotor inertia | 2.90 x 10¯⁴ Kgm² |
| Carga radial | 350 N |
| Temperatura ambiente máxima | 40°C |
| Grado de protección IP del motor | IP54 |
| Caja | Enclosed |
| Clase de aislamiento | B |
| Winding type | Delta |
| Motor poles | 8 |
| Longitud del núcleo | 80 mm |
| Motor length | 136 mm |
| Peso | 4.20 Kg |
| Peso (kg) | 4.20 |

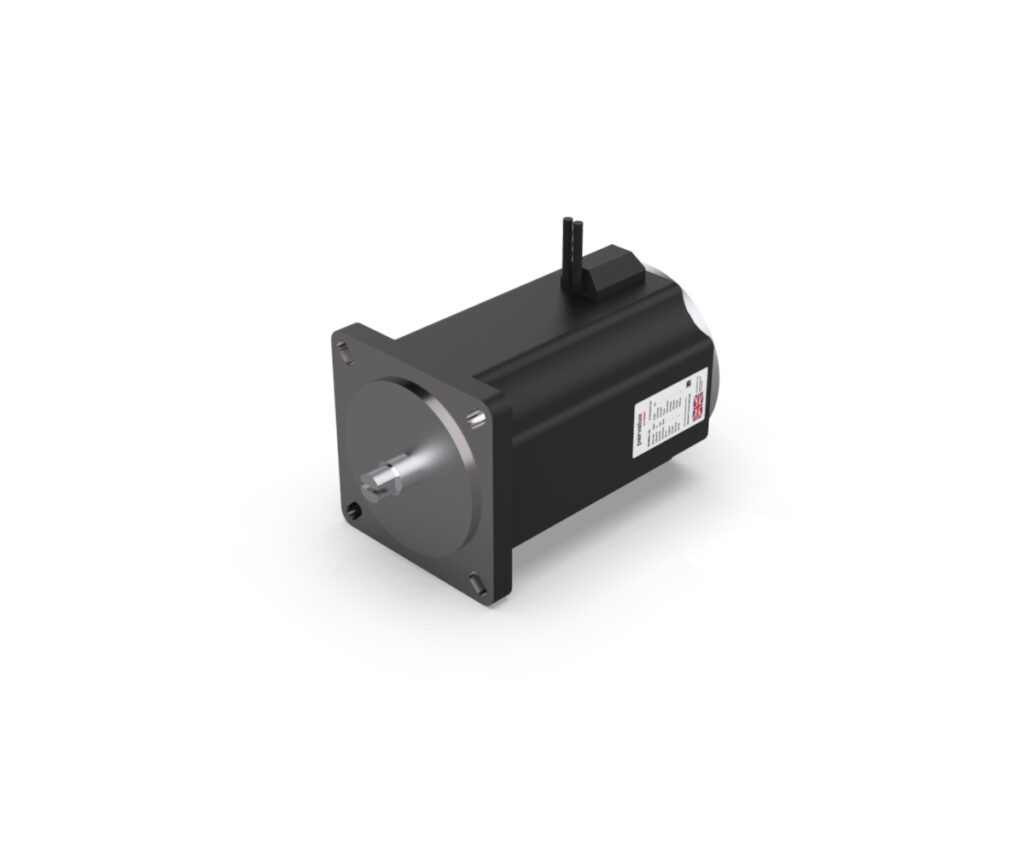

PBL86-80 48V 4000 RPM
Código de producto:776625
L: 136.0 × W: 86.0 × H: 86.0mm
PBL86-80 48V 4000 RPM - BLDC motor - 48 V - 586 W - Delivers up to 2.50 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
Descuentos por volumen
| Cantidad | Precio |
|---|---|
| 1 - 4 | £694.62 / unidad |
| 5 - 10 | £520.96 / unidad |
| 10+ | Por favor, pregunte |
24 disponibles
The Parvalux PBL86 is a brushless direct current (BLDC) motor. It is available with a voltage of 48V DC and output power up to 586 Watts. It is rated for nominal continuous torque up to 1.4 Nm (S1) and maximum intermittent torque up to 2.5 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
