| Part number | V6350-3K12 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 12 V |
| Potencia nominal | 327 W |
| Velocidad en vacío | 4548 rpm |
| Corriente en vacío | 5.50 A |
| Velocidad nominal | 3000 rpm |
| Corriente continua nominal | 46.0 A |
| Par nominal en continuo | 1.0 Nm |
| Par intermitente máximo | 1.6 Nm |
| Corriente de pérdida | 156.0 A |
| Par de parada | 3.80 Nm |
| Máxima eficiencia | 69% |
| Thermal resistance (Ra) | 0.08 Ohms |
| Speed constant | 371 rpm/V |
| Torque constant | 0.030 Nm/A |
| Gradiente de par de velocidad | 1200 rpm/Nm |
| Rotor inertia | 6.13 x 10¯⁴ Kgcm² |
| Carga radial | 200 N |
| Temperatura ambiente máxima | 40°C |
| Grado de protección IP del motor | IP21 |
| Caja | Ventilated |
| Clase de aislamiento | F |
| Reversible | Yes |
| Motor poles | 4 |
| Longitud del núcleo | 50 mm |
| Motor length | 163 mm |
| Peso | 3.10 Kg |
| Peso (kg) | 3.1 |

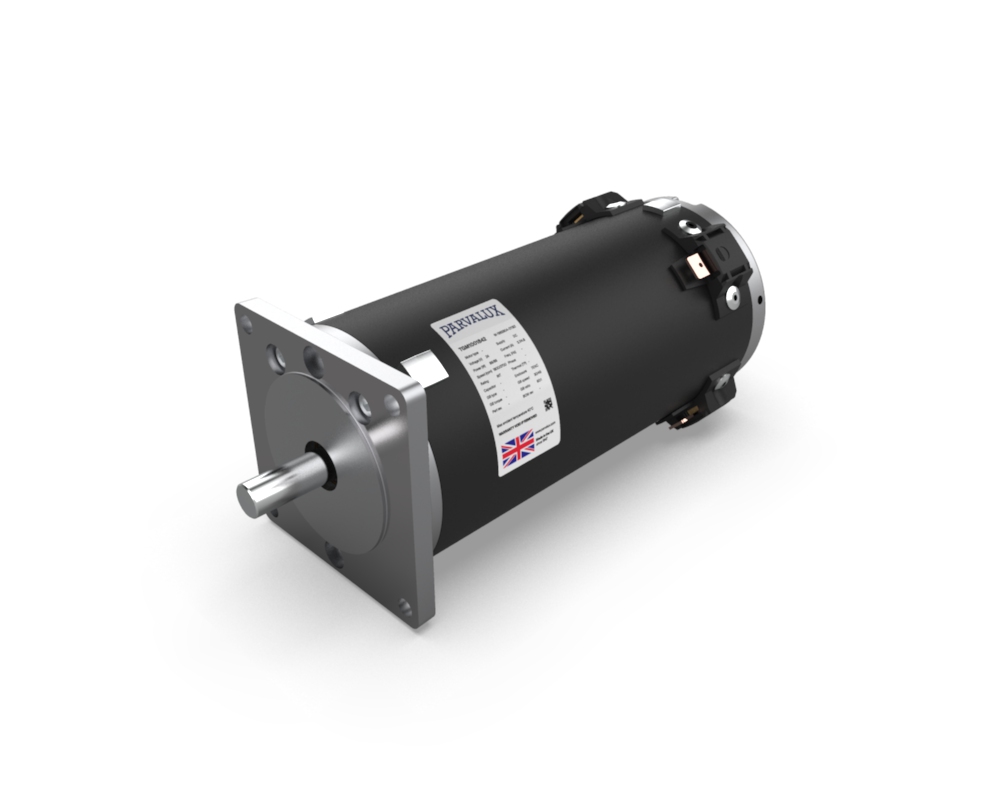

EPM63-50 Ventilated 12V 3000 RPM
Código de producto:V6350-3K12
L: 163 × W: 89 × H: 89mm
EPM63-50 Ventilated 12V 3000 RPM - PMDC motor - 12 V - 327 W - Delivers up to 1.60 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux Ventilated EPM63-50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V – 48V DC and output power up to 327 Watts. It is rated for continuous torque up to 1.0 Nm (S1) and maximum intermittent torque up to 1.6 Nm (S2 - 15 mins). It offers up to 70% efficiency. This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
