| Part number | 775161-M30B |
|---|---|
| Spannung | 48 V |
| Nennleistung | 210 W |
| Nenndrehzahl | 100 rpm |
| Combination gear ratio | 30:1 |
| Combination gear material | Bronze |
| Nominal torque | 12.0 Nm |
| Intermittent torque | 19.0 Nm |
| Motor part number | 775161 |
| Motor type | PMDC |
| Motor voltage | 48 V |
| Motor power | 210 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 8.0 A |
| Motor no load speed | 3564 rpm |
| Motor no load current | 0.77 A |
| Motor continuous torque | 0.87 Nm |
| Motor intermittent torque | 1.15 Nm |
| Motor length (L) | 180 mm |
| Motor weight | 2.90 Kg |
| Gearbox part number | M30B |
| Gearbox ratio | 30:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Schneckenrad |
| Gearbox max continuous torque | 12.0 Nm |
| Gearbox max intermittent torque | 19.0 Nm |
| Gearbox efficiency | 61% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox length | 78 mm |
| Gearbox weight | 0.90 Kg |
| Gewicht (kg) | 3.80 |

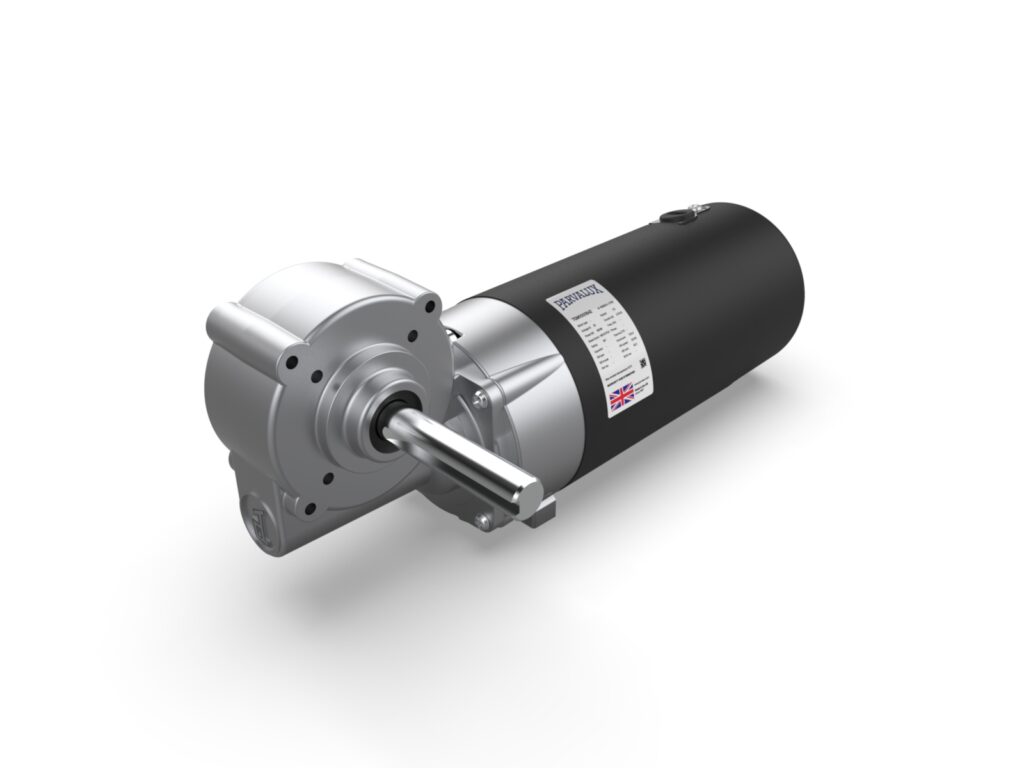

PM50 48V 3000 RPM – M Box 30:1 Bronze
Teil-Nr.:775161-M30B
L: 256.0 × W: 77.0 × H: 100.0mm
PM50 48V 3000 RPM - M Box 30:1 Bronze - PMDC geared right-angle motor - 48 V - Delivers up to 19.0 Nm of torque (S2 - 15 minutes) - 30:1 gear ratio with Bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 220V DC and output power up to 210 Watts. When combined with our M gearbox, the wide selection of gear ratios, as well as the choice of bronze or composite gears, allows for a nominal continuous output torque of up to 12.0 Nm (S1) and maximum intermittent torque of up to 19.0 Nm (S3). Contact our sales team today to discuss the additional options available with this unit, including brakes, encoders, output shaft customisation, etc.
