| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal continuous torque | 9.0 - 15.0 Nm |
| Max intermittent torque | 80.0 Nm |
| Nominal power | 56.0 - 86.0 W |
| Nominal speed | 45 rpm |
| Nominal continuous current | 3.7 - 6.2 A |
| Motor IP rating | IP67 |
| Gearbox Orientation | Right-angle |
| Max ambient temperature | 40?C |
| Weight | 4.0 - 4.5 kg |
| Enclosure | Enclosed |
| Insulation class | F |
| Weight (kg) | 4-4.5 |

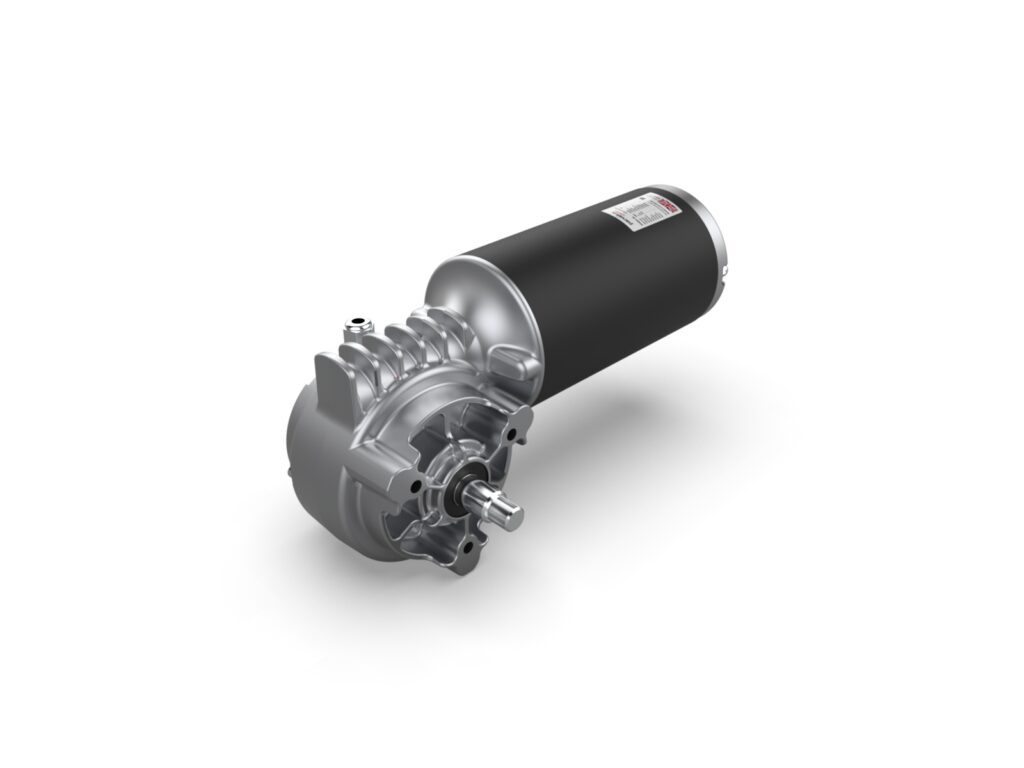

VIPER3 Range
Part No:VIPER3
L: 255 × W: 92 × H: 145mm
The VIPER3 is a PMDC right'angle geared motor, specifically designed for large wiper system applications. Equipped with multiple mounting points, internal wiring, and rated to IP67, the VIPER3 integrates seamlessly into vehicles across the rail, marine, haulage, and transport sectors.
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Speed (rpm) | Power (Watts) | Volts (v) | Torque Nom. (Nm) | Torque Int (Nm) | |
|---|---|---|---|---|---|---|
|
PART NO: V38012 VIPER3 80 Series 12V |
45 | 56 | 12 | 9 | 80 | |
|
PART NO: V38048 VIPER3 80 Series 24V |
45 | 56 | 24 | 9 | 80 | |
|
PART NO: V380110 VIPER3 80 Series 110V |
45 | 56 | 110 | 9 | 80 | |
|
PART NO: V380220 VIPER3 80 Series 220V |
45 | 56 | 220 | 9 | 80 | |
|
PART NO: V311012 VIPER3 110 Series 12V |
45 | 86 | 12 | 15 | 110 | |
|
PART NO: V311048 VIPER3 110 Series 24V |
45 | 86 | 24 | 15 | 110 | |
|
PART NO: V3110110 VIPER3 110 Series 110V |
45 | 86 | 110 | 15 | 110 | |
|
PART NO: V3110220 VIPER3 110 Series 220V |
45 | 86 | 220 | 15 | 110 |
Trusted to work reliably in the harshest conditions, the VIPER3 can comfortably operate when faced with dust, liquid, high & low temperatures, and wide variances in humidity, allowing it to integrate seamlessly into vehicles across the rail, marine, haulage, and transport sectors.
