| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal continuous torque | 9.0 Nm |
| Max intermittent torque | 80.0 Nm |
| Nominal power | 56.0 W |
| Nominal speed | 45 rpm |
| Nominal continuous current | 3.7 A |
| Motor IP rating | IP67 |
| Gearbox Orientation | Right-angle |
| Max ambient temperature | 40?C |
| Weight | 4.0 kg |
| Enclosure | Enclosed |
| Insulation class | F |
| Weight (kg) | 4 |
VIPER3 80 Series 220V
Part No:V380220
L: 255 × W: 92 × H: 145mm

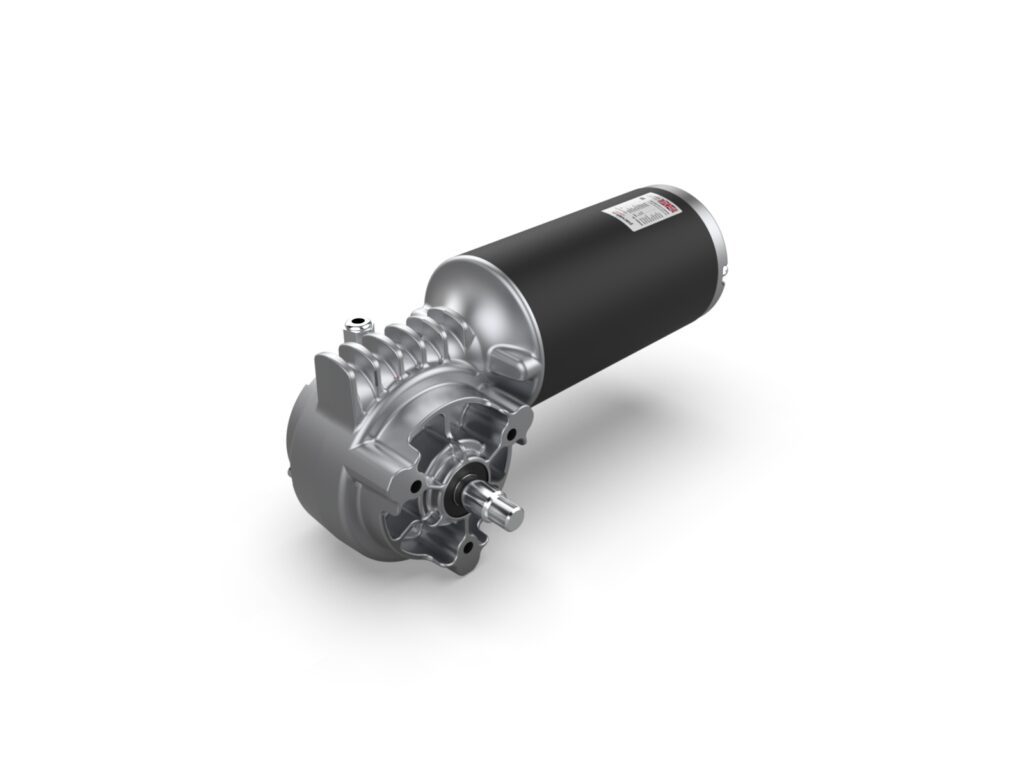

The VIPER3 is a PMDC right'angle geared motor, specifically designed for large wiper system applications. Equipped with multiple mounting points, internal wiring, and rated to IP67, the VIPER3 integrates seamlessly into vehicles across the rail, marine, haulage, and transport sectors.
Trusted to work reliably in the harshest conditions, the VIPER3 can comfortably operate when faced with dust, liquid, high & low temperatures, and wide variances in humidity, allowing it to integrate seamlessly into vehicles across the rail, marine, haulage, and transport sectors.
