| Part number | SWS-9S9W |
|---|---|
| Gearbox ratio | 81:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm spur |
| Gear material | Composite |
| Gearbox stages | 2 |
| Gearbox continuous torque | 11.0 Nm |
| Gearbox intermittent torque | 11.0 Nm |
| Gearbox axial load | 112 N |
| Gearbox radial load | 177 N |
| Gearbox efficiency | 71% |
| Gearbox backlash | 50 - 75 arc.min |
| Gearbox length | 92 mm |
| Gearbox weight | 0.85 Kg |
| Weight (kg) | 0.85 |

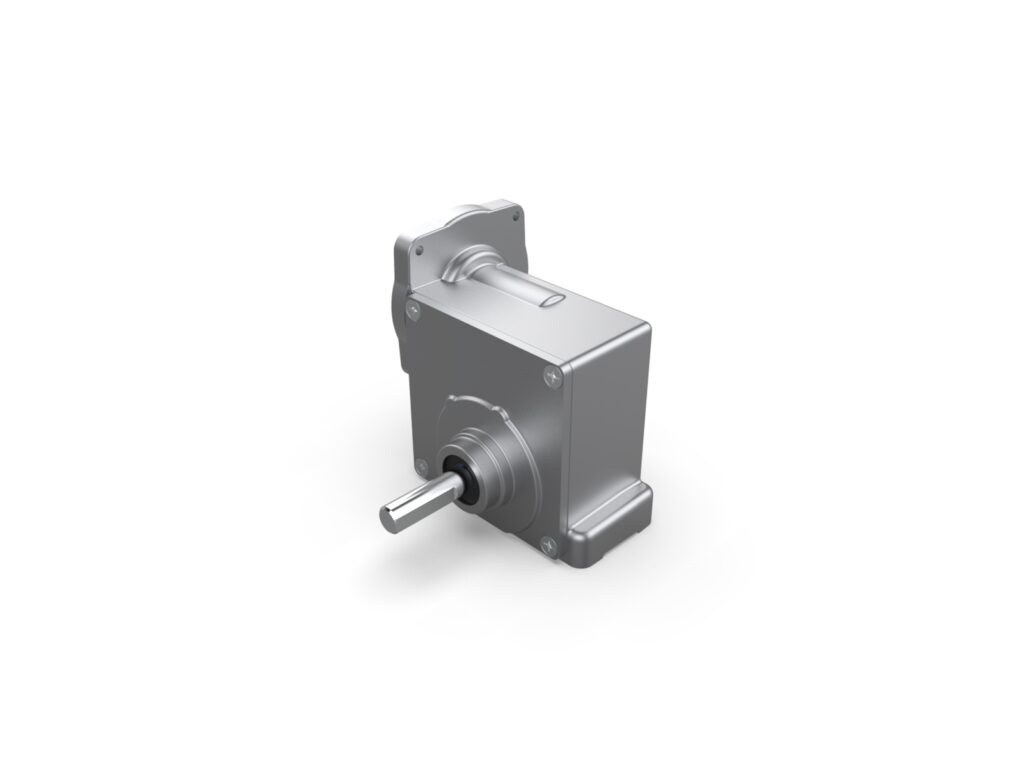

SWS 9:1 Spur / 9:1 Worm Composite
Part No:SWS-9S9W
L: 92 × W: 76 × H: 100mm
SWS 9:1 Spur / 9:1 Worm Composite - Right-angle worm-spur Wheel gearbox - 9:1 spur / 9:1 worm gear ratio - Delivers up to 11.0 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
This SWS right-angle gearbox produces produces 11 Nm of torque and is available in a gear ratio of 9:1 spur and 9:1 worm. The gearbox offers efficiencies of up to 71% to ensure power from the motor is converted into increased torque without losing too much power. This gearbox is also perfect for many applications as it is lightweight, weighing only 0.85 Kg. To find out more please get in contact with our team.
