| Part number | 38230150M4B |
|---|---|
| Voltage | 230 V |
| Nominal power | 60 W |
| Nominal speed | 700 rpm |
| Combination gear ratio | 4:1 |
| Combination gear material | Bronze |
| Nominal torque | 0.59 Nm |
| Intermittent torque | - |
| Motor part number | 82.815 |
| Motor type | AC |
| Motor phases | 1 |
| Motor frequency | 50 Hz |
| Motor voltage | 230 V |
| Motor power | 60 W |
| Motor output speed | 2800 rpm |
| Motor continuous current | 0.57 A |
| Motor input power | 127 W |
| Motor capacitor | 4.0 MFD |
| Motor continuous torque | 0.20 Nm |
| Motor intermittent torque | - |
| Motor length (L) | 128 mm |
| Motor weight | 2.9 Kg |
| Gearbox part number | M4C |
| Gearbox ratio | 4:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 8.0 Nm |
| Gearbox max intermittent torque | 13.0 Nm |
| Gearbox efficiency | 85% |
| Gearbox gear material | Composite |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox length | 78 mm |
| Gearbox weight | 0.70 Kg |
| Weight (kg) | 3.70 |

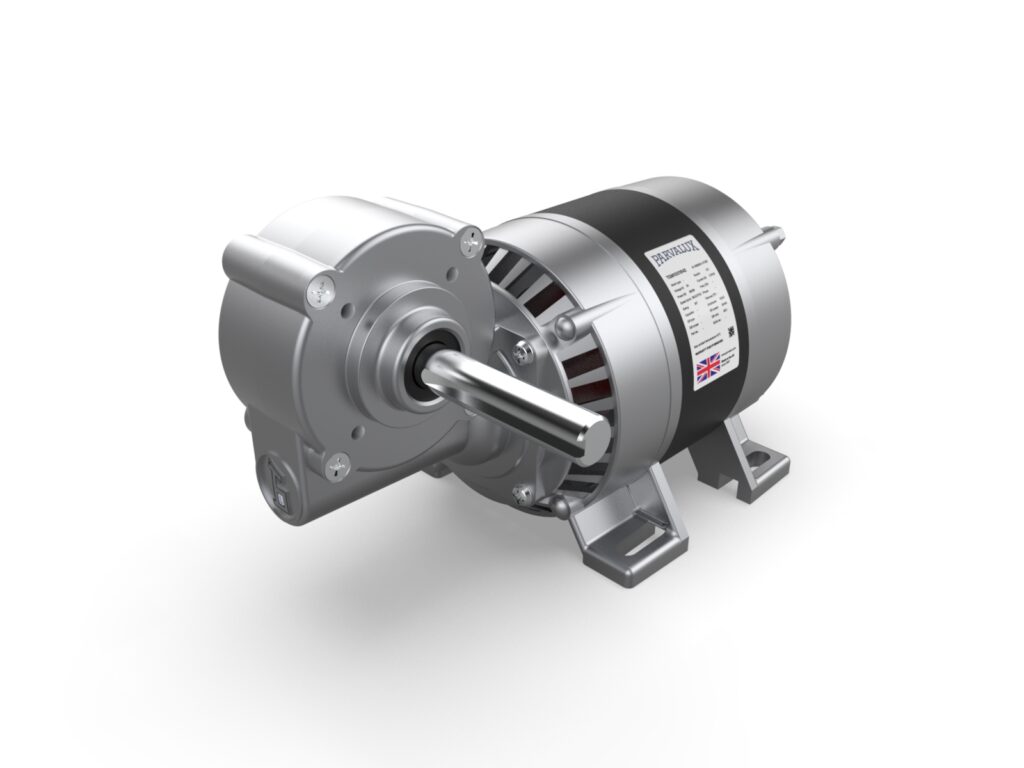

SD8 230V 2800 RPM 1 PHASE 50Hz – M Box 4:1 Bronze
Part No:8230150M4B
L: 196.0 × W: 96.0 × H: 134.0mm
SD8 230V 2800 RPM - M Box 4:1 Bronze - AC geared right-angle motor - 230 V - Delivers up to 0.59 Nm of torque (S1) - 4:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
