| Part number | 83.416 |
|---|---|
| Motor Type | AC |
| Phases | 1 |
| Frequency | 60 Hz |
| Nominal voltage | 115 V |
| Nominal power | 60 W |
| Nominal speed | 3400 rpm |
| Nominal continuous current | 1.00 A |
| Nominal continuous torque | 0.17 Nm |
| Starting current | 2.50 A |
| Input power | 127 W |
| Capacitor value | 4.0 MFD |
| Starting torque full load | 75% |
| Radial load | 150 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP20 (VENT) / IP54 (TE/TFC) |
| Enclosure | Ventilated / Enclosed |
| Insulation class | F |
| Type | Permanent Capacitor, Asynchronous |
| Direction | Bi-directional |
| Motor Poles | 2 |
| Stack length | 37 mm |
| Motor length | 121 mm |
| Weight | 2.80 Kg |
| Weight (kg) | 2.80 |

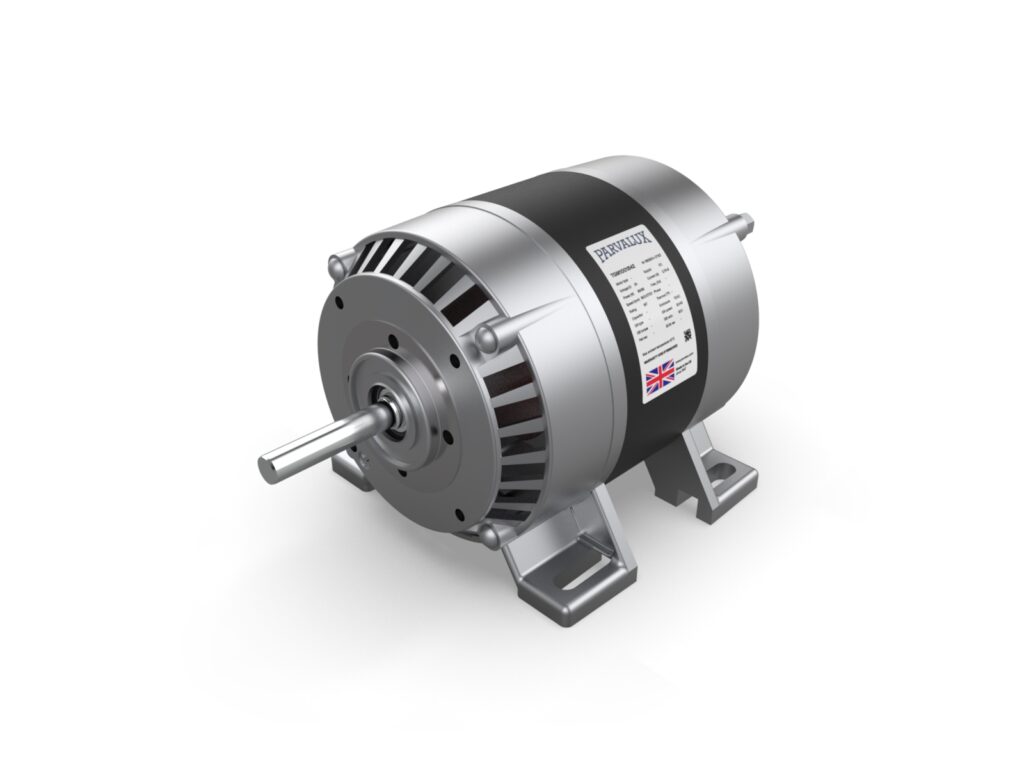

SD8 115V 3400 RPM 1 PHASE 60Hz
Part No:83.416
L: 121.0 × W: 111.0 × H: 96.0mm
SD8 115V 3400 RPM 1 PHASE 60 Hz - AC motor - 115 V - 60 W - Delivers up to 0.17 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
