| Motor Type | AC |
|---|---|
| Nominal continuous torque | 28.1 Nm |
| Nominal power | 250 W |
| Nominal speed | 47 rpm |
| Nominal continuous current | 0.75 A |
| Stack length | 56 mm |
| Motor IP rating | IP20 (VENT) / IP54 (TE/TEFC) |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 60:1 ratio |
| Gear Material | Bronze |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 55% |
| Gearbox Axial Load | 600 N |
| Gearbox Radial Load | 800 N |
| Backlash | 10-25 arc.min |
| Max ambient temperature | 40°C |
| Weight | 9.9 Kg |
| Enclosure | Ventilated / Enclosed |
| Insulation class | F |
| Phases | 3 |
| Frequency | 50 Hz |
| Starting current | 1.88 A |
| Input power | 400 W |
| Starting torque full load | 150% |
| Type | Capacitor Start, Asynchronous |
| Direction | Bi-directional |
| Weight (kg) | 9.9 |

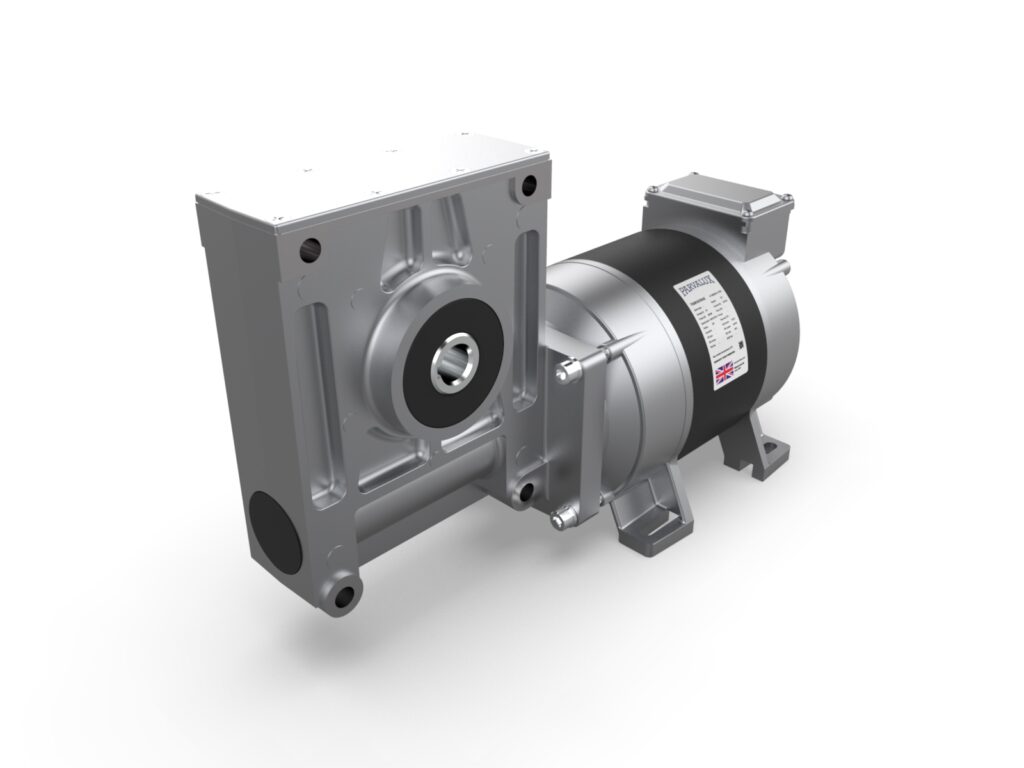

SD48 400V 2800 RPM 1 PHASE 50Hz – GB9 60:1 Bronze
Part No:48400350G960B
L: 318 × W: 133 × H: 198mm
