| Motor Type | AC |
|---|---|
| Motor Poles | 4 |
| Nominal continuous torque | 0.07 Nm |
| Nominal power | 10 W |
| Nominal speed | 1400 rpm |
| Nominal continuous current | 0.20 A |
| Stack length | 38 mm |
| Motor IP rating | IP20 (VENT) / IP54 (TE/TEFC) |
| Max ambient temperature | 40°C |
| Radial load | 110 N |
| Weight | 2.1 Kg |
| Enclosure | Ventilated / Enclosed |
| Insulation class | F |
| Phases | 1 |
| Frequency | 50 Hz |
| Starting current | 0.50 A |
| Input power | 40 W |
| Capacitor value | 3.0 MFD |
| Starting torque full load | 100% |
| Type | Permanent Capacitor, Asynchronous |
| Direction | Bi-directional |
| Weight (kg) | 2.1 |

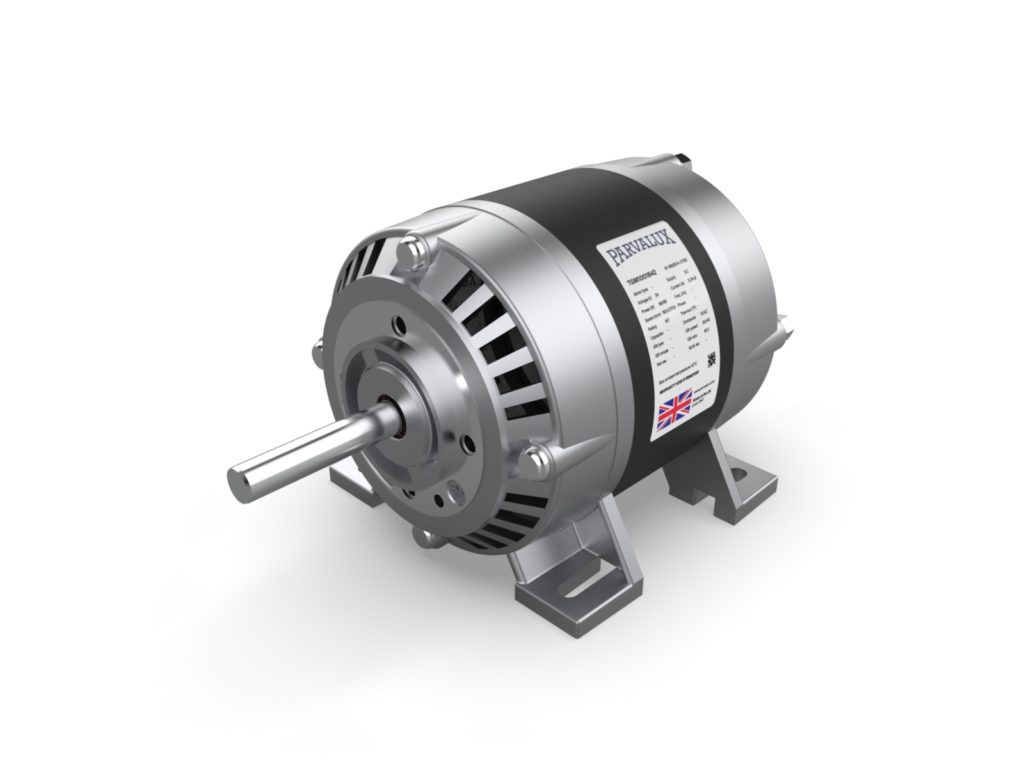

SD41 230V 1400 RPM 1 PHASE 50Hz
Part No:411.4150
SD41 230V 1400 RPM 1 PHASE 50Hz
- Operates at 230 Volts
- Compact envelope size & lightweight
- Output of 10 Watts
- Continuously rated at up to 0.07 Nm
- Bi-directional operation
- Nominal Speed 1400 RPM
