| Part number | 38230150M30B |
|---|---|
| Voltage | 230 V |
| Nominal power | 60 W |
| Nominal speed | 93 rpm |
| Combination gear ratio | 30:1 |
| Combination gear material | Bronze |
| Nominal torque | 3.70 Nm |
| Intermittent torque | - |
| Motor part number | 382.815 |
| Motor type | AC |
| Motor phases | 1 |
| Motor frequency | 50 Hz |
| Motor voltage | 230 V |
| Motor power | 60 W |
| Motor output speed | 2800 rpm |
| Motor continuous current | 0.57 A |
| Motor input power | 127 W |
| Motor capacitor | 4.0 MFD |
| Motor continuous torque | 0.20 Nm |
| Motor intermittent torque | - |
| Motor length (L) | 128 mm |
| Motor weight | 2.9 Kg |
| Gearbox part number | M30C |
| Gearbox ratio | 30:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 8.0 Nm |
| Gearbox max intermittent torque | 13.0 Nm |
| Gearbox efficiency | 70% |
| Gearbox gear material | Composite |
| Gearbox axial load | 300 N |
| Gearbox radial load | 350 N |
| Gearbox length | 78 mm |
| Gearbox weight | 0.70 Kg |
| Weight (kg) | 3.80 |

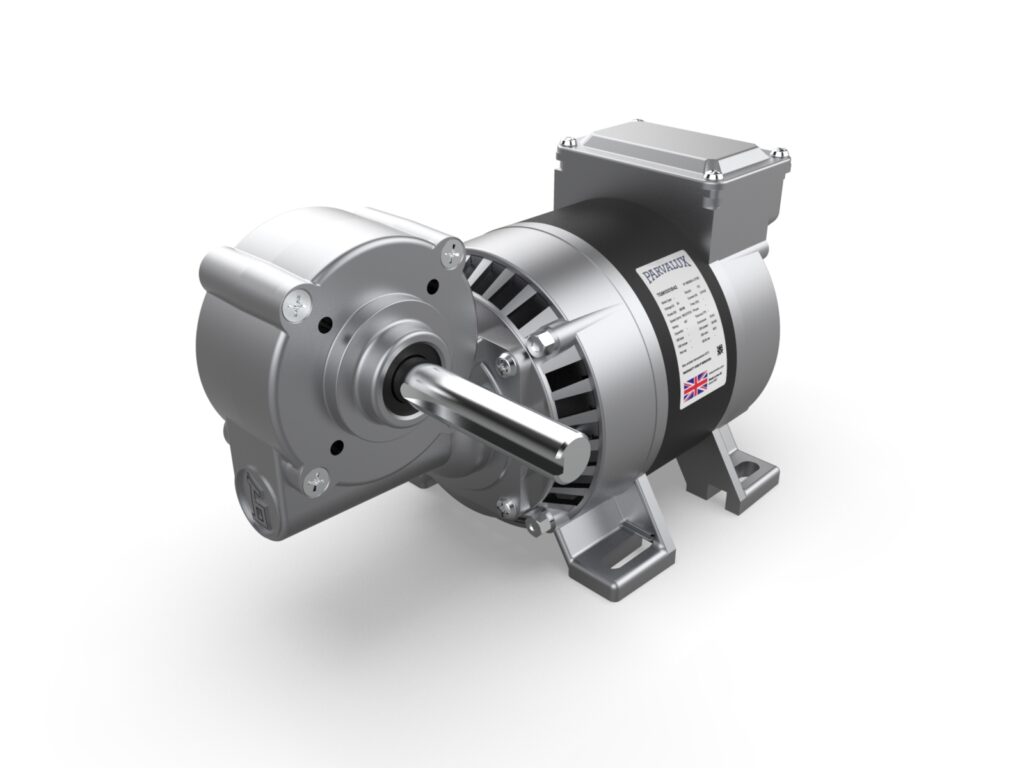

SD38 230V 2800 RPM 1 PHASE 50Hz – M Box 30:1 Bronze
Part No:38230150M30B
L: 203.0 × W: 96.0 × H: 134.0mm
SD38 230V 2800 RPM - M Box 30:1 Bronze - AC geared right-angle motor - 230 V - Delivers up to 3.7 Nm of torque (S1) - 30:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
