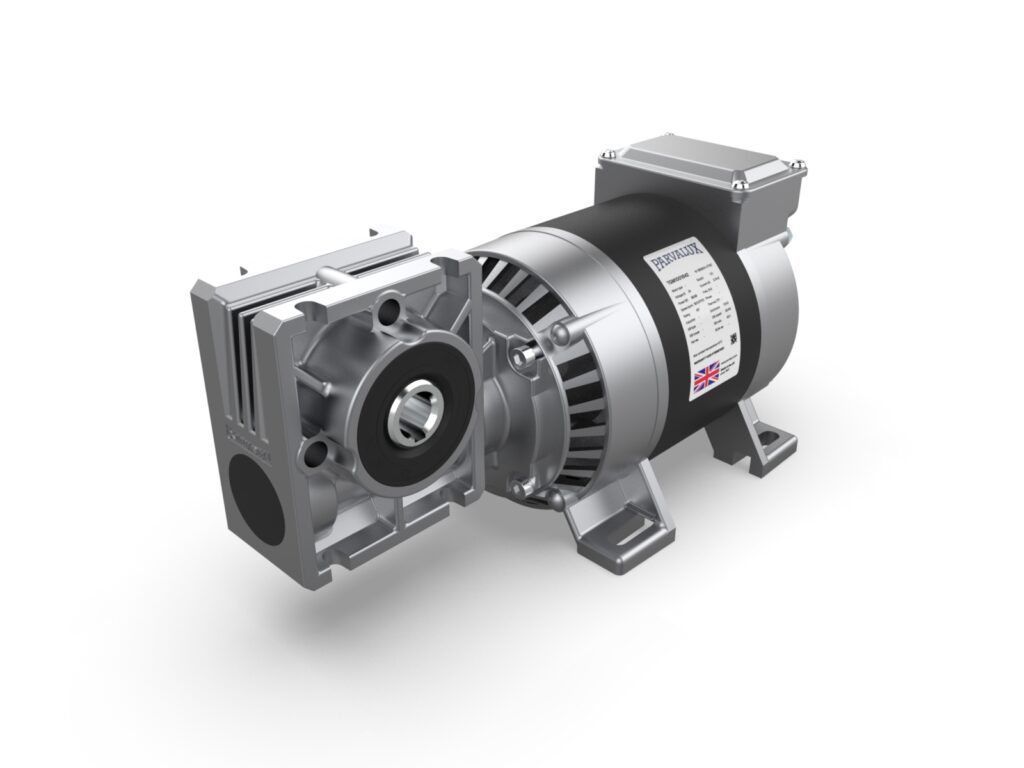

SD29 – GB28 Range

Speed (rpm)

47 - 227

Power (Watts)

100

Volts (v)

115 - 400

Torque Nom. (Nm)

3.2 - 5

Part No:SD29-GB28

L: 212 × W: 111 × H: 117mm

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Product name Speed (rpm) Power (Watts) Volts (v) Torque Nom. (Nm)

PART NO: 29230150G2815

SD29 230V 2800 RPM 1 PHASE 50Hz – GB28 15:1 Bronze

 187 100 230 3.8

PART NO: 29230150G2830

SD29 230V 2800 RPM 1 PHASE 50Hz – GB28 30:1 Bronze

 93 100 230 5

PART NO: 29230150G2860

SD29 230V 2800 RPM 1 PHASE 50Hz – GB28 60:1 Bronze

 47 100 230 5

PART NO: 29115160G2815

SD29 115V 3400 RPM 1 PHASE 60Hz – GB28 15:1 Bronze

 227 100 115 3.2

PART NO: 29115160G2830

SD29 115V 3400 RPM 1 PHASE 60Hz – GB28 30:1 Bronze

 113 100 115 5

PART NO: 29115160G2860

SD29 115V 3400 RPM 1 PHASE 60Hz – GB28 60:1 Bronze

 57 100 115 5

PART NO: 29400350G2815

SD29 400V 2800 RPM 3 PHASE 50Hz – GB28 15:1 Bronze

 187 100 400 4.6

PART NO: 29400350G2830

SD29 400V 2800 RPM 3 PHASE 50Hz – GB28 30:1 Bronze

 93 100 400 5

PART NO: 29400350G2860

SD29 400V 2800 RPM 3 PHASE 50Hz – GB28 60:1 Bronze

 47 100 400 5

PART NO: 29230360G2815

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 15:1 Bronze

 227 100 230 4.6

PART NO: 29230360G2830

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 30:1 Bronze

 113 100 230 5

PART NO: 29230360G2860

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 60:1 Bronze

 57 100 230 5

Part no 29230150G2815

SD29 230V 2800 RPM 1 PHASE 50Hz – GB28 15:1 Bronze

Speed (rpm) 187
Power (Watts) 100
Volts (v) 230
Torque Nom. (Nm) 3.8
Torque Int (Nm) 0
View Datasheet

Part no 29230150G2830

SD29 230V 2800 RPM 1 PHASE 50Hz – GB28 30:1 Bronze

Speed (rpm) 93
Power (Watts) 100
Volts (v) 230
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29230150G2860

SD29 230V 2800 RPM 1 PHASE 50Hz – GB28 60:1 Bronze

Speed (rpm) 47
Power (Watts) 100
Volts (v) 230
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29115160G2815

SD29 115V 3400 RPM 1 PHASE 60Hz – GB28 15:1 Bronze

Speed (rpm) 227
Power (Watts) 100
Volts (v) 115
Torque Nom. (Nm) 3.2
Torque Int (Nm) 0
View Datasheet

Part no 29115160G2830

SD29 115V 3400 RPM 1 PHASE 60Hz – GB28 30:1 Bronze

Speed (rpm) 113
Power (Watts) 100
Volts (v) 115
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29115160G2860

SD29 115V 3400 RPM 1 PHASE 60Hz – GB28 60:1 Bronze

Speed (rpm) 57
Power (Watts) 100
Volts (v) 115
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29400350G2815

SD29 400V 2800 RPM 3 PHASE 50Hz – GB28 15:1 Bronze

Speed (rpm) 187
Power (Watts) 100
Volts (v) 400
Torque Nom. (Nm) 4.6
Torque Int (Nm) 0
View Datasheet

Part no 29400350G2830

SD29 400V 2800 RPM 3 PHASE 50Hz – GB28 30:1 Bronze

Speed (rpm) 93
Power (Watts) 100
Volts (v) 400
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29400350G2860

SD29 400V 2800 RPM 3 PHASE 50Hz – GB28 60:1 Bronze

Speed (rpm) 47
Power (Watts) 100
Volts (v) 400
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29230360G2815

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 15:1 Bronze

Speed (rpm) 227
Power (Watts) 100
Volts (v) 230
Torque Nom. (Nm) 4.6
Torque Int (Nm) 0
View Datasheet

Part no 29230360G2830

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 30:1 Bronze

Speed (rpm) 113
Power (Watts) 100
Volts (v) 230
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet

Part no 29230360G2860

SD29 230V 3400 RPM 3 PHASE 60Hz – GB28 60:1 Bronze

Speed (rpm) 57
Power (Watts) 100
Volts (v) 230
Torque Nom. (Nm) 5
Torque Int (Nm) 0
View Datasheet
Motor Type AC
Motor Poles 2
Nominal continuous torque 3.2 - 5.0 Nm
Nominal power 100 W
Nominal speed 47 - 227 rpm
Nominal continuous current 0.36 - 1.70 A
Stack length 56 mm
Motor IP rating IP20 (VENT) / IP54 (TE/TEFC)
Gearbox Orientation Right Angle
Gearbox Type Worm Wheel
Gearbox Ratio 15:1 - 60:1 ratio
Gear Material Bronze
Gearbox Stages 1
Gearbox Efficiency 45 - 75%
Gearbox Axial Load 300 N
Gearbox Radial Load 400 N
Backlash 10-25 arc.min
Weight 4.4 Kg
Enclosure Ventilated / Enclosed
Insulation class F
Phases 1 - 3
Frequency 50 - 60 Hz
Starting current 0.90 - 4.25 A
Input power 185 W
Capacitor value 6.0 MFD
Starting torque full load 85 - 150%
Type Permanent Capacitor, Asynchronous
Direction Bi-directional
Weight (kg) 4.4
