| Part number | 291.735 |
|---|---|
| Motor Type | AC |
| Phases | 3 |
| Frequency | 50 Hz |
| Nominal voltage | 400 V |
| Nominal power | 55 W |
| Nominal speed | 1400 rpm |
| Nominal continuous current | 0.28 A |
| Nominal continuous torque | 0.38 Nm |
| Starting current | 0.70 A |
| Input power | 100 W |
| Capacitor value | - |
| Starting torque full load | 150% |
| Radial load | 150 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP20 (VENT) / IP54 (TE/TFC) |
| Enclosure | Ventilated / Enclosed |
| Insulation class | F |
| Type | Permanent Capacitor, Asynchronous |
| Direction | Bi-directional |
| Motor Poles | 4 |
| Stack length | 56 mm |
| Motor length | 147 mm |
| Weight | 3.60 Kg |
| Weight (kg) | 3.60 |

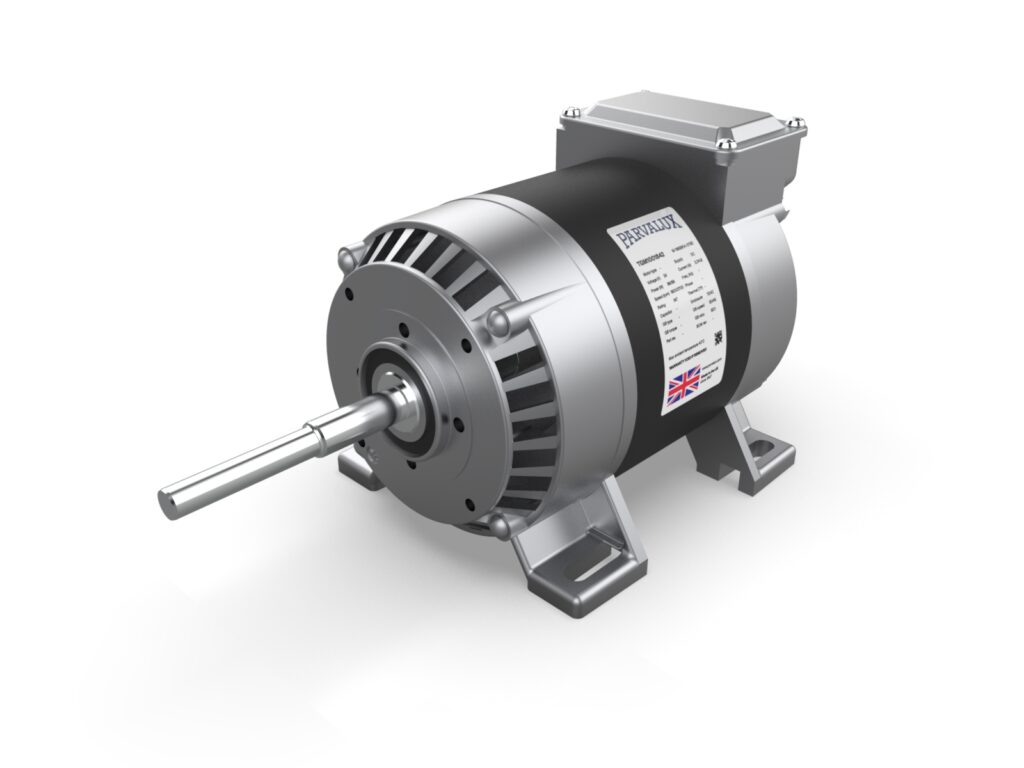

SD29 400V 1400 RPM 3 PHASE 50Hz
Part No:291.735
L: 147.0 × W: 111.0 × H: 143.0mm
SD29 400V 1400 RPM 3 PHASE 50 Hz - AC motor - 400 V - 55 W - Delivers up to 0.38 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
