SD21 – S Box Range

Speed (rpm)

40 - 700

Power (Watts)

20

Volts (v)

230

Torque Nom. (Nm)

0.2 - 2.00

Part No:SD21-S

L: 163 × W: 92 × H: 94mm

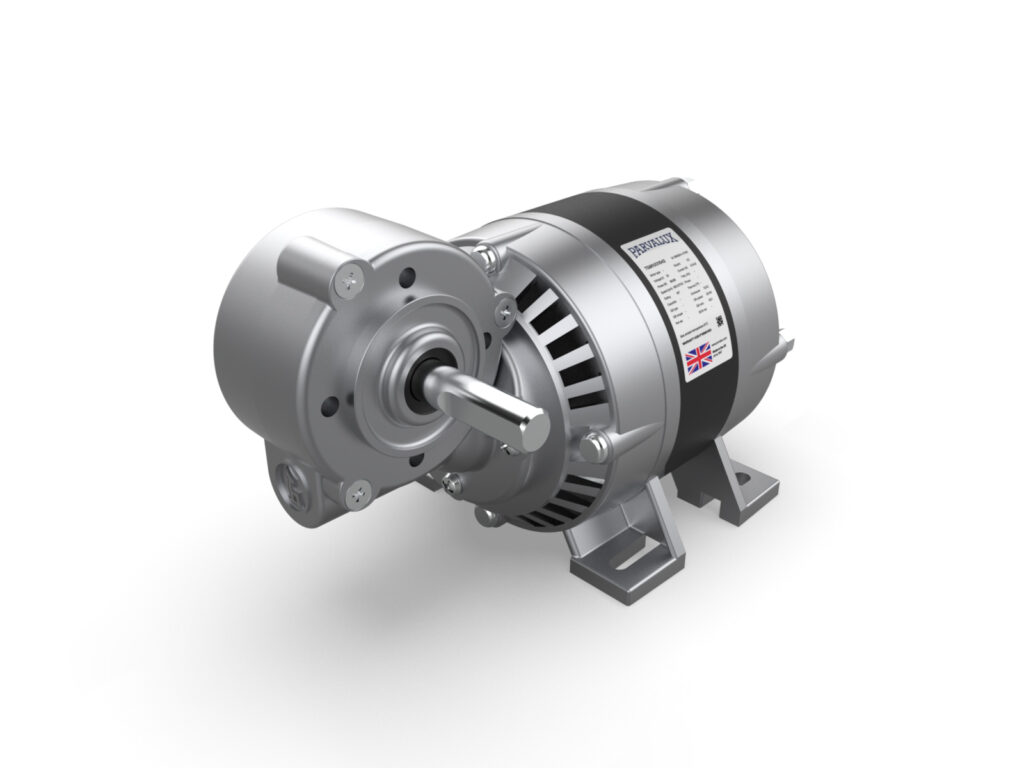

SD21-S Box range - AC geared right-angle motor - Available in voltages of 115 - 220 V - Delivers up to 1.7 Nm of torque (S1) - Composite and bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Product name Speed (rpm) Power (Watts) Volts (v) Torque Nom. (Nm)

PART NO: 2123050S4C

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 4:1 Composite

 700 20 230 0.22

PART NO: 2123050S30C

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 30:1 Composite

 93 20 230 1.4

PART NO: 2123050S70C

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 70:1 Composite

 40 20 230 2

PART NO: 2123050S4B

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 4:1 Bronze

 700 20 230 0.2

PART NO: 2123050S30B

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 30:1 Bronze

 93 20 230 1.2

PART NO: 2123050S70B

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 70:1 Bronze

 40 20 230 1.7

Part no 2123050S4C

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 4:1 Composite

Speed (rpm) 700
Power (Watts) 20
Volts (v) 230
Torque Nom. (Nm) 0.22
Torque Int (Nm) 0
View Datasheet

Part no 2123050S30C

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 30:1 Composite

Speed (rpm) 93
Power (Watts) 20
Volts (v) 230
Torque Nom. (Nm) 1.4
Torque Int (Nm) 0
View Datasheet

Part no 2123050S70C

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 70:1 Composite

Speed (rpm) 40
Power (Watts) 20
Volts (v) 230
Torque Nom. (Nm) 2
Torque Int (Nm) 0
View Datasheet

Part no 2123050S4B

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 4:1 Bronze

Speed (rpm) 700
Power (Watts) 20
Volts (v) 230
Torque Nom. (Nm) 0.2
Torque Int (Nm) 0
View Datasheet

Part no 2123050S30B

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 30:1 Bronze

Speed (rpm) 93
Power (Watts) 20
Volts (v) 230
Torque Nom. (Nm) 1.2
Torque Int (Nm) 0
View Datasheet

Part no 2123050S70B

SD21 230V 2800 RPM 1 PHASE 50Hz – S Box 70:1 Bronze

Speed (rpm) 40
Power (Watts) 20
Volts (v) 230
Torque Nom. (Nm) 1.7
Torque Int (Nm) 0
View Datasheet
Part number SD21-S
Voltage 230 V
Nominal power 20 W
Nominal speed 40 - 700 rpm
Combination gear ratio 4:1 - 70:1
Combination gear material Composite / bronze
Nominal torque 0.20 - 2.0 Nm
Intermittent torque -
Motor part number SD21
Motor type AC
Motor phases 1
Motor frequency 50 Hz
Motor voltage 230 V
Motor power 20 W
Motor output speed 2800 rpm
Motor continuous current 0.34 A
Motor input power 80 W
Motor capacitor 2.0 MFD
Motor continuous torque 0.07 Nm
Motor intermittent torque -
Motor length L 91 mm
Motor weight 1.50 Kg
Gearbox part number S Box
Gearbox ratio 4:1 - 70:1
Gearbox orientation Right angle
Gearbox type Worm wheel
Gearbox max continuous torque 2.0 - 4.5 Nm
Gearbox max intermittent torque 3.20 - 7.20 Nm
Gearbox efficiency 35 - 80%
Gearbox gear material Composite / bronze
Gearbox axial load 150 N
Gearbox radial load 250 N
Gearbox length 59 mm
Gearbox weight 0.30 - 0.40 Kg
Weight (kg) 180-1.90
