| Part number | 18400350G915B |
|---|---|
| Voltage | 400 V |
| Nominal power | 150 W |
| Nominal speed | 187 rpm |
| Combination gear ratio | 15:1 |
| Combination gear material | Bronze |
| Nominal torque | 7.8 Nm |
| Intermittent torque | - |
| Motor part number | 185.835 |
| Motor type | AC |
| Motor phases | 3 |
| Motor frequency | 50 Hz |
| Motor voltage | 400 V |
| Motor power | 150 W |
| Motor output speed | 2800 rpm |
| Motor continuous current | 0.46 A |
| Motor input power | 273 W |
| Motor capacitor | - |
| Motor continuous torque | 0.65 Nm |
| Motor intermittent torque | - |
| Motor length L | 158 mm |
| Motor weight | 5.40 Kg |
| Gearbox part number | GB9-15B |
| Gearbox ratio | 15:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 75.0 Nm |
| Gearbox max intermittent torque | 120.0 Nm |
| Gearbox efficiency | 80% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 138 mm |
| Gearbox weight | 3.40 Kg |
| Weight (kg) | 8.80 |

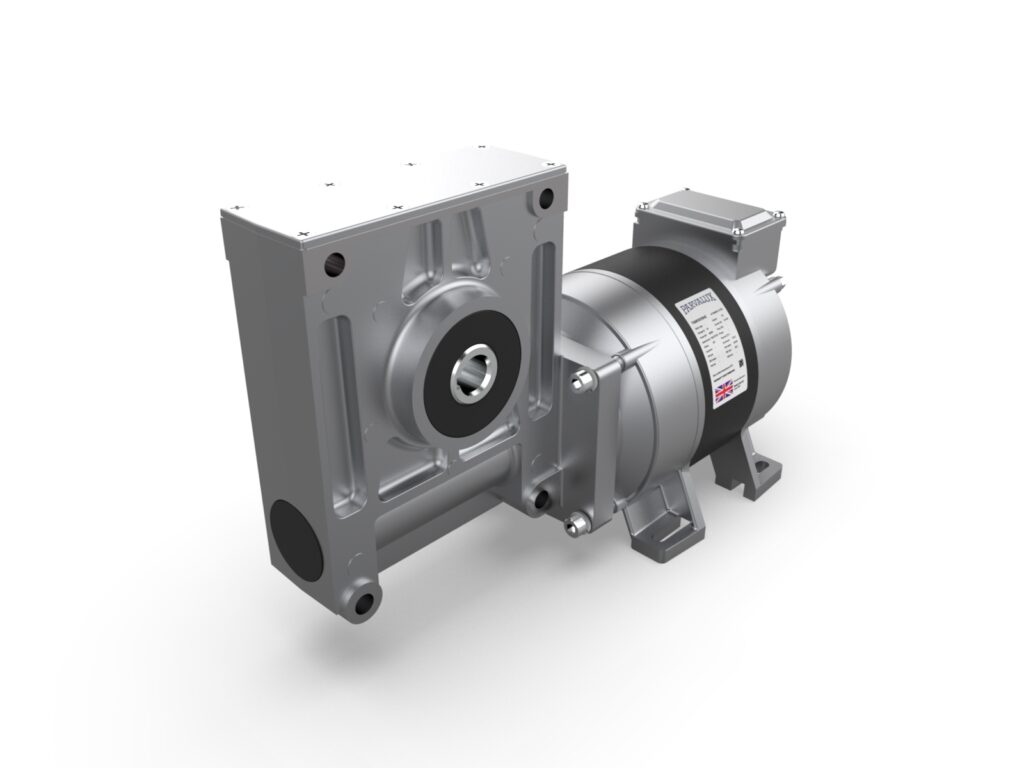

SD18 400V 2800 RPM 3 PHASE 50Hz – GB9 15:1 Bronze
Part No:18400350G915B
L: 292.0 × W: 120.0 × H: 208.0mm
SD18 400V 2800 RPM - GB9 15:1 Bronze - AC geared right-angle motor - 400 V - Delivers up to 7.8 Nm of torque (S1) - 15:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
