| Part number | 132.815 |
|---|---|
| Motor Type | AC |
| Phases | 1 |
| Frequency | 50 Hz |
| Nominal voltage | 230 V |
| Nominal power | 150 W |
| Nominal speed | 2800 rpm |
| Nominal continuous current | 1.20 A |
| Nominal continuous torque | 0.51 Nm |
| Starting current | 3.00 A |
| Input power | 290 W |
| Capacitor value | 8.4 MFD |
| Starting torque full load | 80% |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP20 (VENT) / IP54 (TE/TFC) |
| Enclosure | Ventilated / Enclosed |
| Insulation class | F |
| Type | Permanent Capacitor, Asynchronous |
| Direction | Bi-directional |
| Motor Poles | 2 |
| Stack length | 46 mm |
| Motor length | 149 mm |
| Weight | 5.40 Kg |
| Weight (kg) | 5.40 |

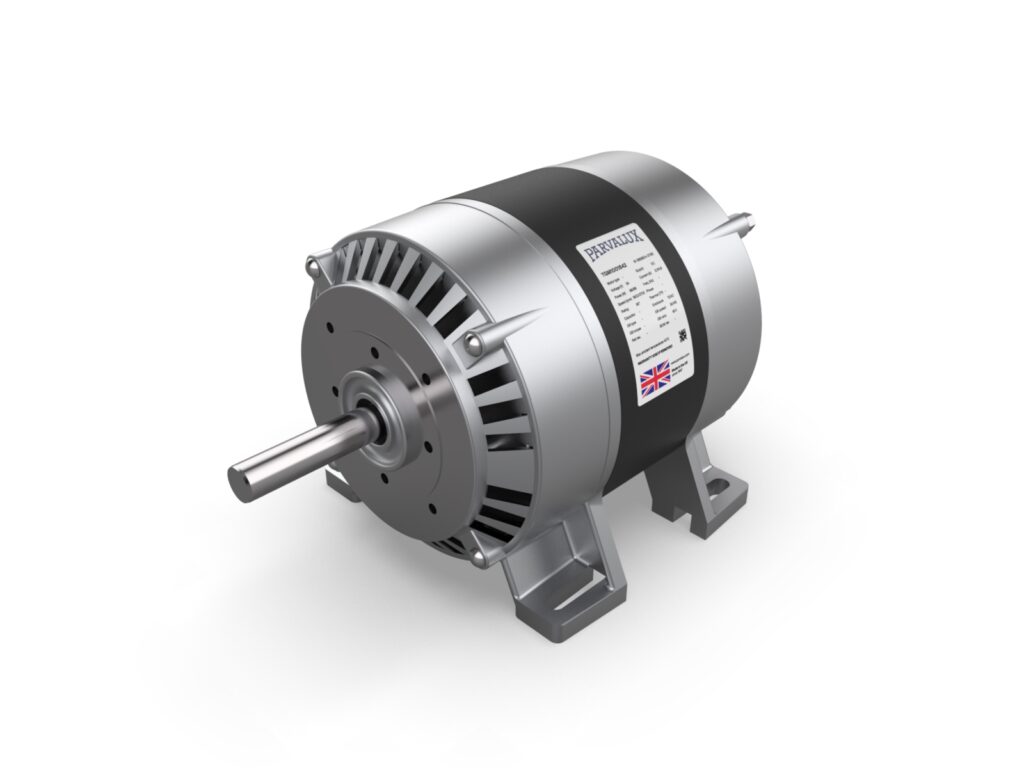

SD13 230V 2800 RPM 1 PHASE 50Hz
Part No:132.815
L: 149.0 × W: 133.0 × H: 127.0mm
SD13 230V 2800 RPM 1 PHASE 50 Hz - AC motor - 230 V - 150 W - Delivers up to 0.51 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
