| Part number | 121250S |
|---|---|
| Motor Type | AC Series |
| Minimum voltage available | 12 |
| Nominal power | 50 W |
| Nominal speed | 2000 rpm |
| Nominal continuous torque | 0.24 Nm |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP23 |
| Enclosure | VENT/TENC |
| Insulation class | F |
| Reversible | Yes |
| Motor length | 165 mm |
| Weight | 3.57 Kg |
| Weight (kg) | 3.57 |

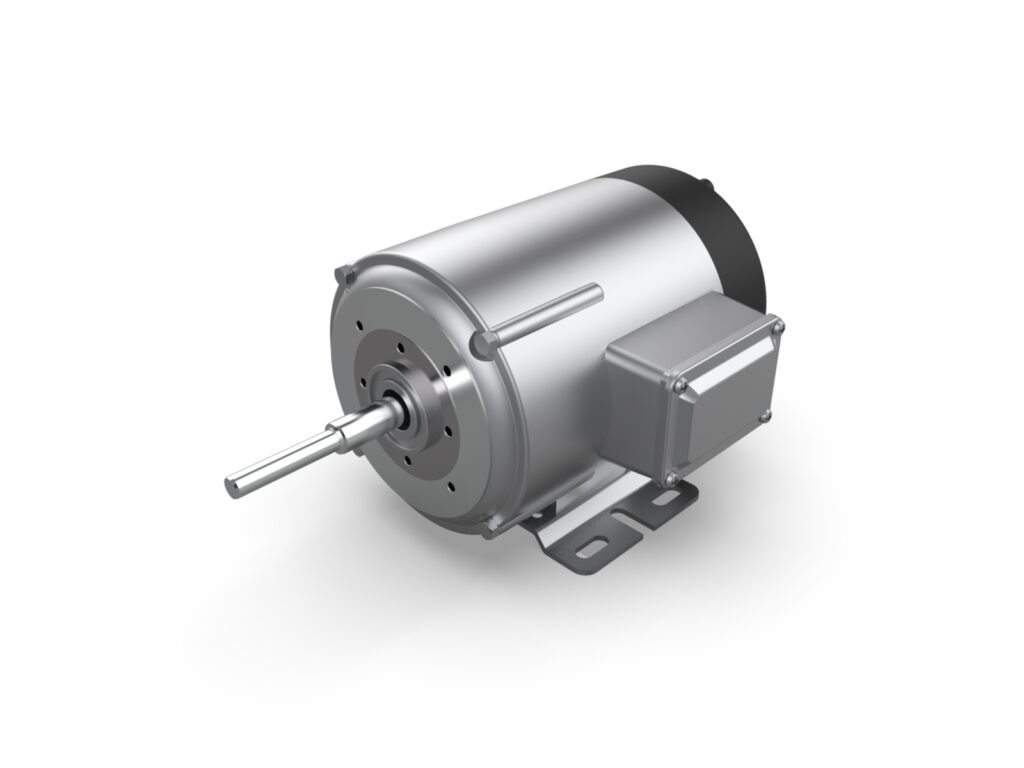

SD12 Series 12V 50W
Part No:121250S
L: 165.0 × W: 121.0 × H: 120.0mm
SD12 Series 12V 50W - AC/DC motor - 12 V - 50 W - Delivers up to 0.24 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The SD12 Series Range is a series-wound AC/DC motor that features a motor speed between 2000 rpm. The motor comes in a 12V variation and has a watt output of 50W. The SD12 series works continuously between 0.24 Nm of torque, the motor can then be paired with a Parvalux gearbox for increased torque demands. The motor weighs 3.5 Kg and is rated at IP50 to protect the motor against dust and water to ensure a long life span.
