SD1 Shunt Range

Speed (RPM)

2000 - 5000

Power (Watts)

10 -75

Torque continuous (Nm)

0.05 - 0.14

Part No:SD1 Shunt

L: 119 × W: 64 × H: 90.8mm

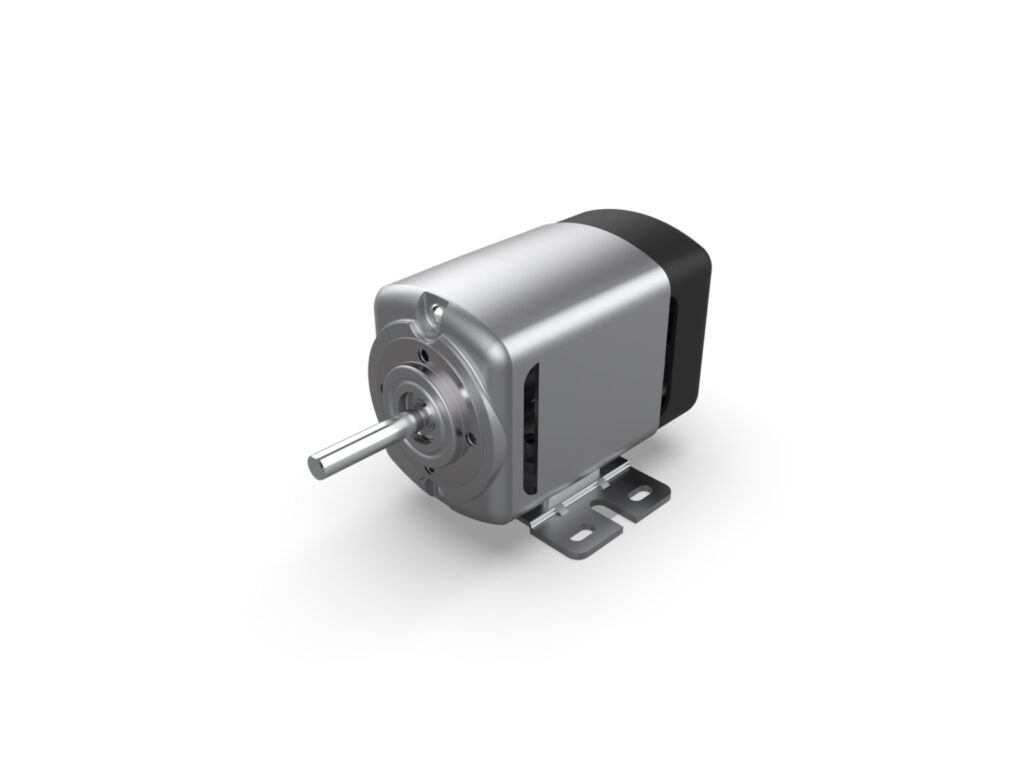

This Parvalux SD1 Shunt motor range is available in 12 – 24 volts and has an output power of up to 75 Watts, it is rated for nominal continuous torque up to 0.14 Nm (S1) and only weights 1.22 Kg This motor is perfectly suited for use with a range of Parvalux gearboxes enabling you to assemble the perfect geared motor combination for your application.

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Hidden
Consent(Required)
Range Product Name Part No Type Volts Watts RPM Nm (Cont)
SD1 Shunt 12V 2000 rpm 11210SH ACDC 0 10 2000 0.05 View Spec Overview
SD1 Shunt 12V 2500 rpm 11215SH ACDC 0 15 2500 0.06 View Spec Overview
SD1 Shunt 12V 3000 rpm 11238SH ACDC 0 38 3000 0.12 View Spec Overview
SD1 Shunt 12V 4000 rpm 11250SH ACDC 0 50 4000 0.12 View Spec Overview
SD1 Shunt 24V 5000 rpm 12475SH ACDC 0 75 5000 0.14 View Spec Overview
SD1 Shunt 12V 2000 rpm Part no 11210SH

Range

Product Name

SD1 Shunt 12V 2000 rpm

Part No

11210SH

Type

ACDC

Volts

0

Watts

10

RPM

2000

Nm (Cont)

0.05

SD1 Shunt 12V 2500 rpm Part no 11215SH

Range

Product Name

SD1 Shunt 12V 2500 rpm

Part No

11215SH

Type

ACDC

Volts

0

Watts

15

RPM

2500

Nm (Cont)

0.06

SD1 Shunt 12V 3000 rpm Part no 11238SH

Range

Product Name

SD1 Shunt 12V 3000 rpm

Part No

11238SH

Type

ACDC

Volts

0

Watts

38

RPM

3000

Nm (Cont)

0.12

SD1 Shunt 12V 4000 rpm Part no 11250SH

Range

Product Name

SD1 Shunt 12V 4000 rpm

Part No

11250SH

Type

ACDC

Volts

0

Watts

50

RPM

4000

Nm (Cont)

0.12

SD1 Shunt 24V 5000 rpm Part no 12475SH

Range

Product Name

SD1 Shunt 24V 5000 rpm

Part No

12475SH

Type

ACDC

Volts

0

Watts

75

RPM

5000

Nm (Cont)

0.14

Motor Type Series Wound
Nominal continuous torque 0.05 - 0.14 Nm
Nominal power 10 - 75W
Nominal speed 2000 - 5000 rpm
Motor IP rating IP50
Max ambient temperature 40?C
Radial load 110 N
Weight 1.22 Kg
Enclosure VENT/TENC
Insulation class F
Reversible Yes
Weight (kg) 1.22

The SD1 Shunt range features a speed of up to 5000 rpm and is available in 12 and 24-volt variations. The motor also outputs up to 0.14 Nm of continuous torque. The motor is available in VENT and TENC enclosures which can give you up to IP50 or IP54 rating with a terminal box. This lightweight motor can be paired with a Parvalux gearbox for increased torque demands.
