| Gearbox part number | S60C |
|---|---|
| Gearbox ratio | 60:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm Wheel |
| Gearbox gear material | Composite |
| Gearbox stages | 1 |
| Gearbox continuous torque | 2.2 Nm |
| Gearbox intermittent torque | 3.6 Nm |
| Gearbox axial load | 150 N |
| Gearbox radial load | 250 N |
| Gearbox efficiency | 48% |
| Gearbox backlash | 10-25 arc.min |
| Gearbox length | 59 mm |
| Gearbox weight | 0.30 Kg |
| Weight (kg) | 0.30 |

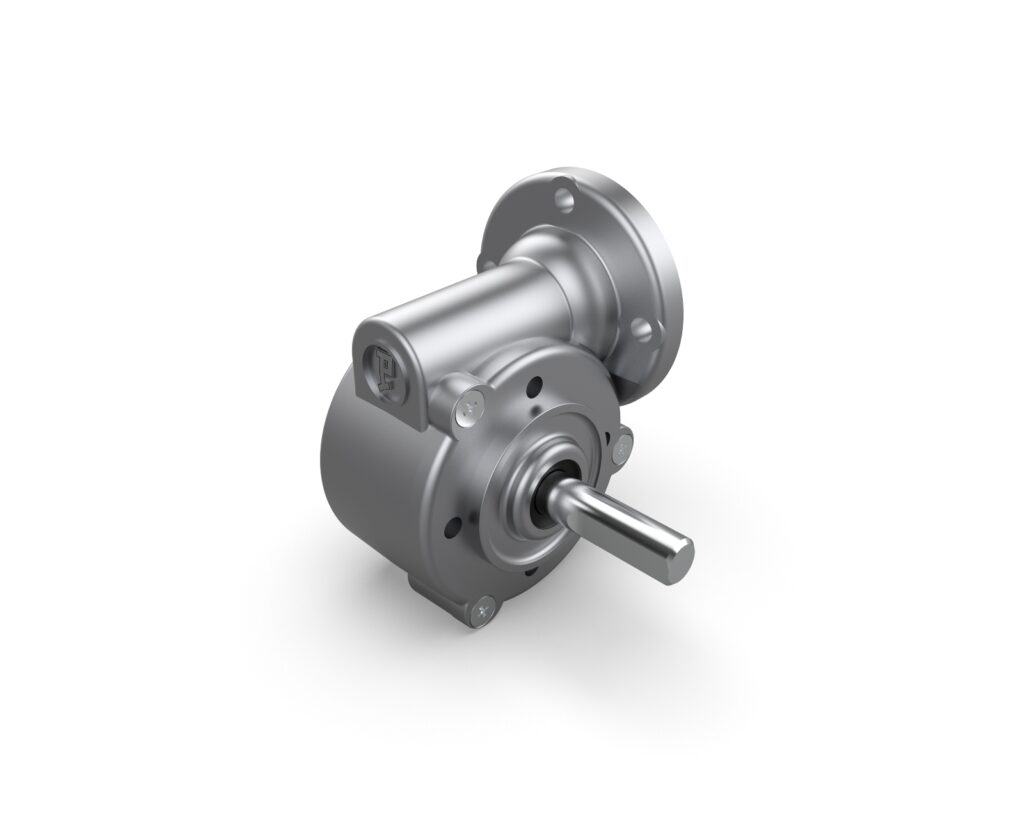

S Box 60:1 Composite
Part No:S60C
L: 59.0 × W: 51.0 × H: 79.0mm
S Box 60:1 Composite - Right-angle worm Wheel gearbox - 60:1 gear ratio - Delivers up to 3.6 Nm of torque (S2 - 15 minutes) - Composite gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The Parvalux S Box is a right-angle, worm Wheel gearbox. With available ratios ranging from 4 - 70:1, it offers a wide range of output speeds and a capability of up to 4.5 Nm torque in continuous operation and 7.2 Nm in intermittent operation. The S gearbox is available with both composite and bronze gears, offering efficiencies of up to 80%. It is also perfectly suited for use with a range of Parvalux PMDC and BLDC motors, enabling you to assemble the perfect combination of motor and gearbox for your application.
