| Part number | RE38 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 24 - 48 V |
| Nominal power | 24 - 40 W |
| No load speed | 3856 - 4175 rpm |
| No load current | 0.10 - 0.24 A |
| Nominal speed | 3200 - 3250 rpm |
| Nominal continuous current | 0.70 - 2.20 A |
| Nominal continuous torque | 0.07 - 0.12 Nm |
| Max intermittent torque | 0.11 - 0.18 Nm |
| Stall current | 5.9 - 10.7 A |
| Stall torque | 0.41 - 0.68 Nm |
| Maximum efficiency | 77 - 78% |
| Thermal resistance Ra | 1.72 - 9.91 Ohms |
| Speed constant | 81.6 - 173.6 rpm/V |
| Torque constant | 0.05 - 0.12 Nm/A |
| Speed torque gradient | 5830 - 10541 rpm/Nm |
| Rotor inertia | 9.5 x 10¯⁶ - 1.3 x 10¯⁵ Kgcm² |
| Radial load | 60 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP50 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 25 - 40 mm |
| Motor length | 70 - 90 mm |
| Weight | 0.30 - 0.40 Kg |
| Weight (kg) | 030-0.40 |
RE38 Range
Part No:RE38
L: 700-90.0 × W: 38.0 × H: 38.0mm

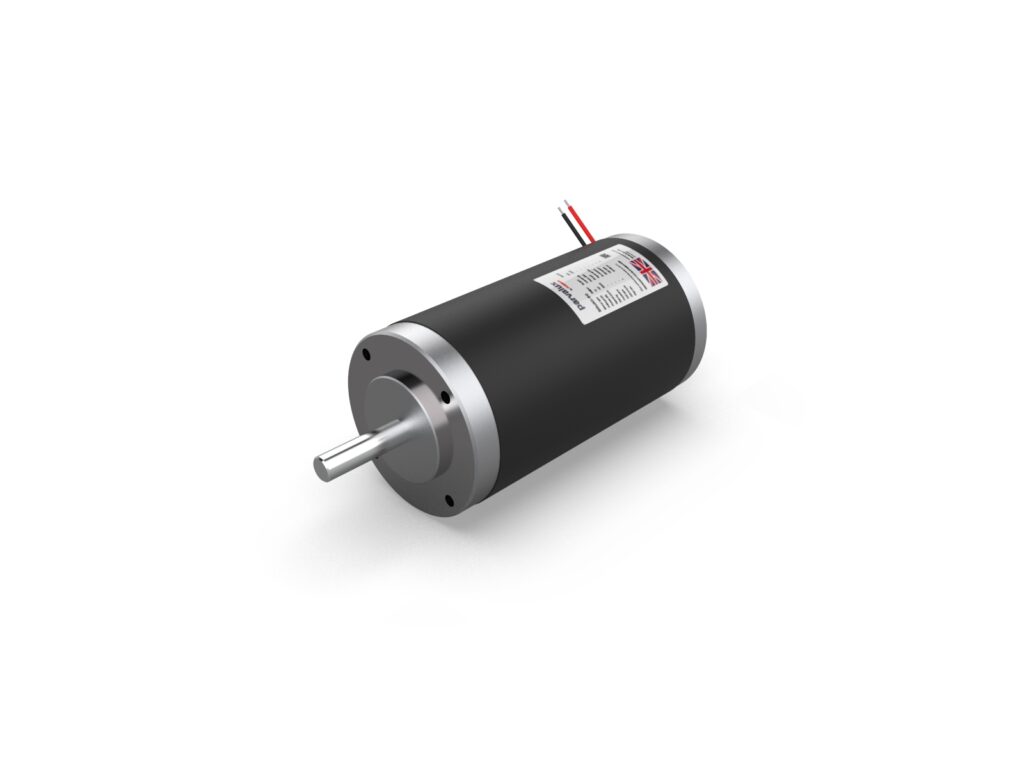

RE38 Modular PMDC motor
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Speed (rpm) | Power (Watts) | Volts (v) | Torque Cont. (Nm) | Torque Int (Nm) | |
|---|---|---|---|---|---|---|
|
PART NO: 857662 RE38-25 24V 3250 RPM |
3250 | 24 | 24 | 0.07 | 0.11 | |
|
PART NO: 857663 RE38-25 48V 3250 RPM |
3250 | 24 | 48 | 0.07 | 0.11 | |
|
PART NO: 857664 RE38-40 24V 3200 RPM |
3200 | 40 | 24 | 0.12 | 0.18 | |
|
PART NO: 857665 RE38-40 48V 3200 RPM |
3200 | 40 | 48 | 0.12 | 0.18 |

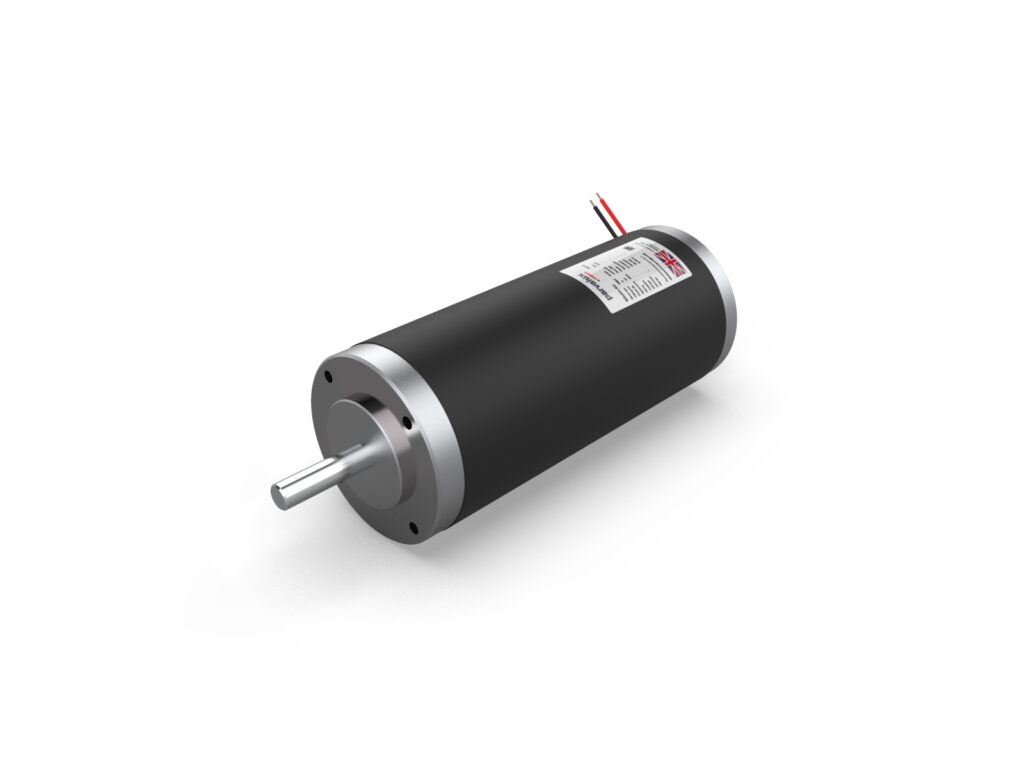

The Parvalux RE38-40 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC and output power up to 20 watts. It is rated for nominal continuous torque up to 0.06 Nm (S1) and maximum intermittent torque up to 0.09 Nm (S2 - 15 min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
