| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal power | 40 W |
| Stack length | 40 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Inline |
| Gearbox Type | Planetary |
| Gearbox Ratio | 150:1 ratio |
| Gear Material | Steel |
| Gearbox Stages | 4 |
| Gearbox Efficiency | 64% |
| Gearbox Axial Load | 150 N |
| Gearbox Radial Load | 360 N |
| Gearbox Continuous Torque | 11.3 Nm |
| Gearbox Intermittent Torque | 16.9 Nm |
| Backlash | 60 arc.min |
| Weight (kg) | 0.96 |
RE38-40 48V 3200RPM – PGx42 150:1 Steel
Part No:857665-891040
L: 160.8 × W: 42 × H: 42mm

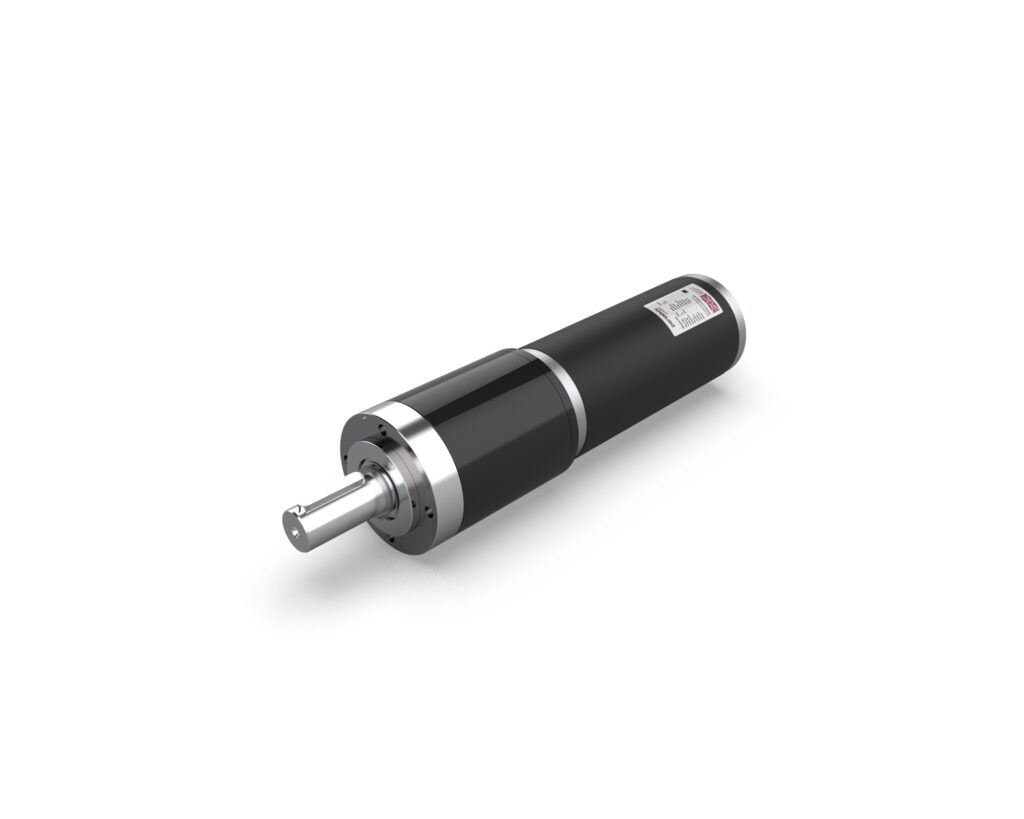

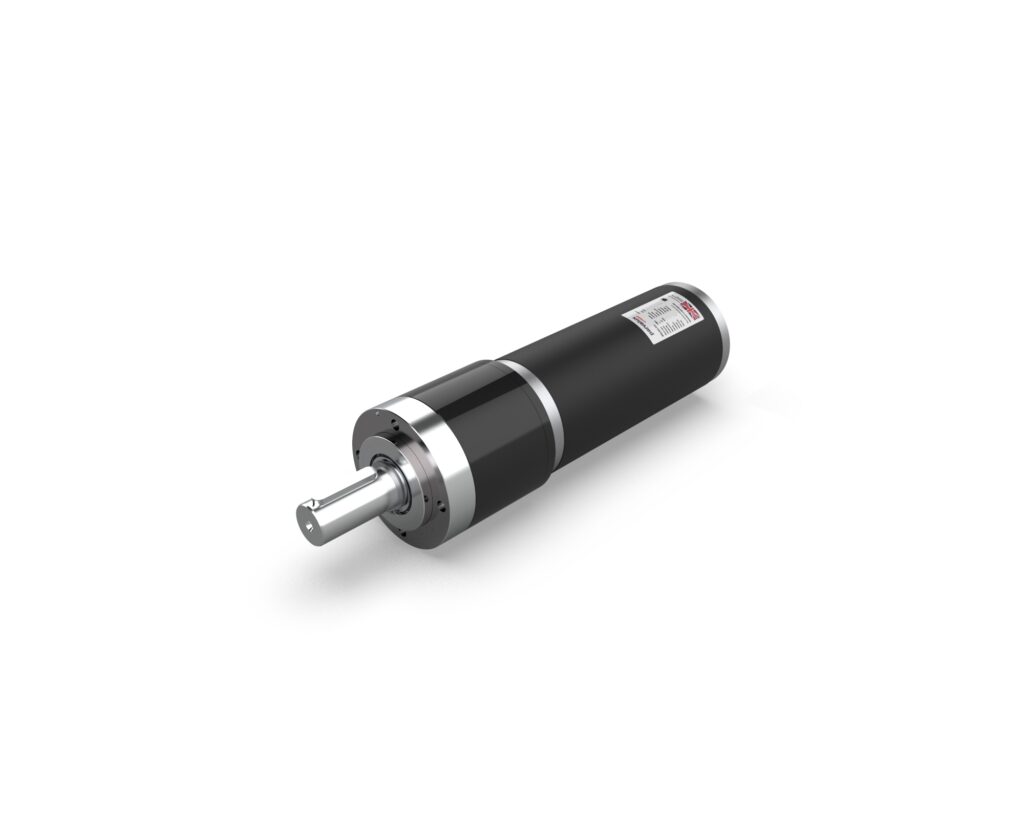

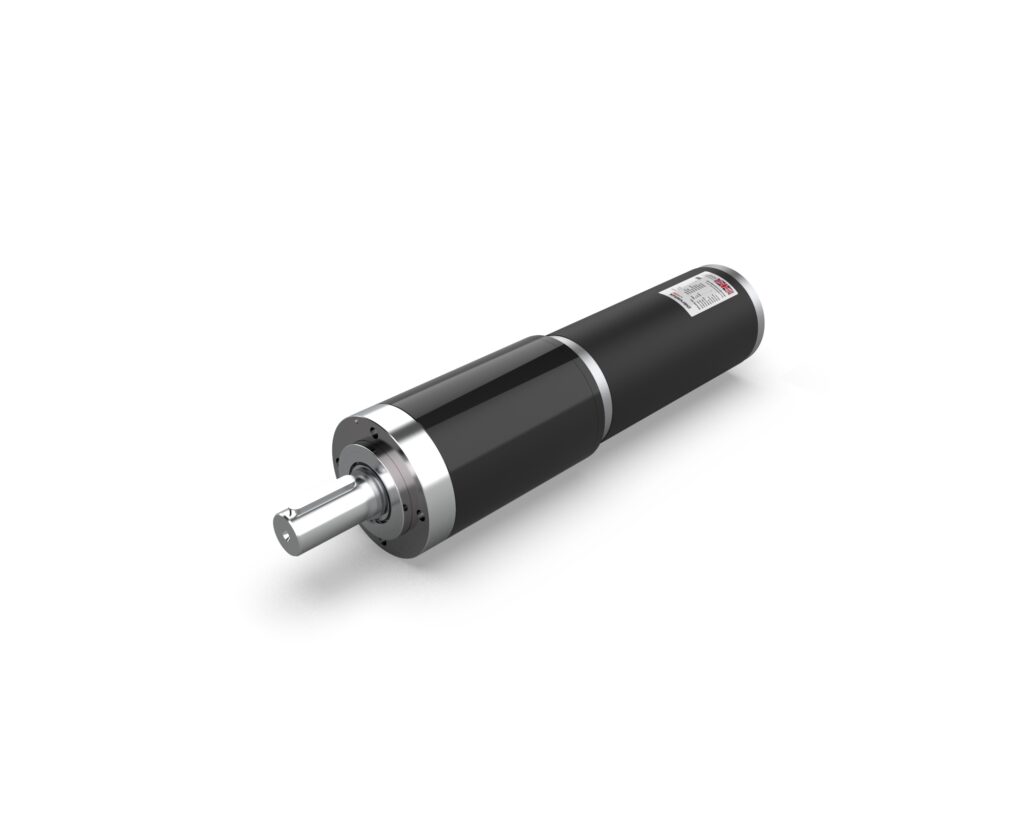

RE38-40 48V 3200 RPM Modular PMDC motor with the PGx42 150:1 Steel gearbox
The Parvalux RE38-40-PGx42 range is a modular motor and gearbox combination, offering motor voltages of 24 - 48 V and gearbox ratios of 4.3:1 - 353:1. The pairing of this motor and gearbox offers between 9.1 - 744.2 rpm and up to 16.9 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes and encoders to fine tune your combination to perfectly meet the requirements of your application.
