| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Rated Motor Power | 157 W |
| Stack Length | 50 mm |
| Motor IP Rating | IP54 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 160:1 |
| Gear Material | Bronze / steel |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 55% |
| Gearbox Radial Load | 2335 N |
| Motor length | 153 mm |
| Gearbox length | 144 mm |
| Weight (kg) | 6 |

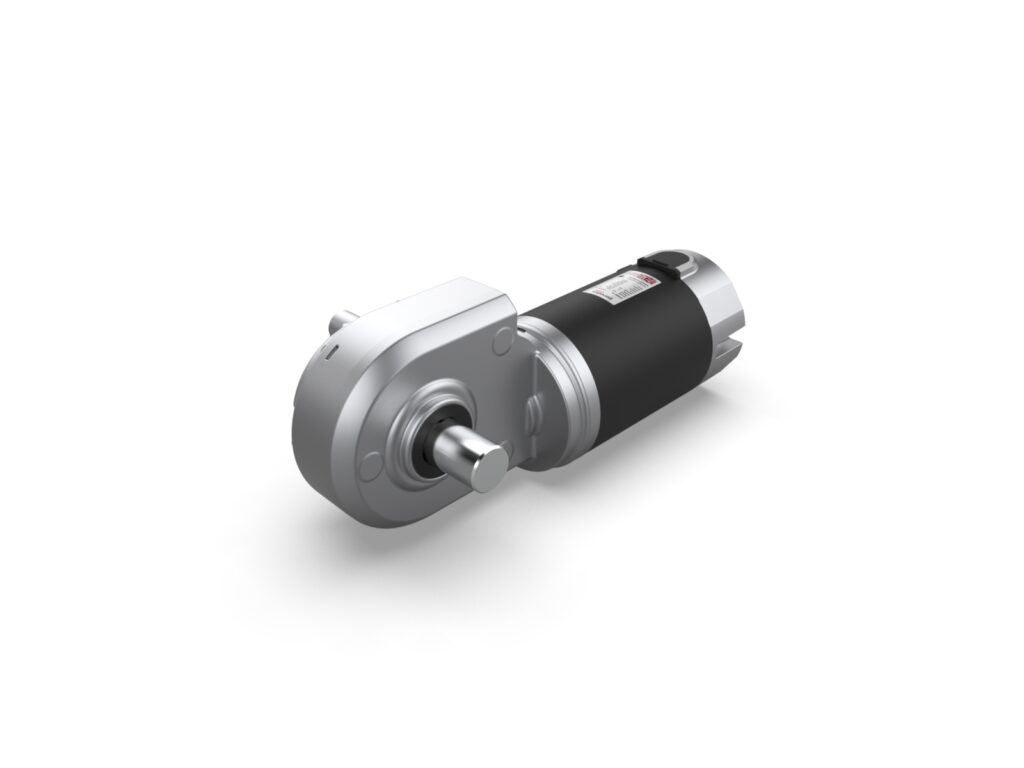

PM90-150 12V 3000RPM – GB14 160:1 Steel / Bronze
Part No:781102-14160
L: 288 × W: 101 × H: 121mm
PM90-150 12V 3000 RPM - GB14 160:1 Steel / Bronze - PMDC right-angle geared motor - 12 V - 157 W - Delivers up to 103.0 Nm of torque - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM90-150-GB14 range is a modular motor and gearbox combination, offering motor voltages of 12 - 48 V and gearbox ratios of 80 - 160:1. The pairing of this motor and gearbox offers between 19 - 37.5 rpm and up to 103.0 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
