| Part number | 912S4B |
|---|---|
| Voltage | 12 V |
| Nominal power | 38 W |
| Nominal speed | 750 rpm |
| Combination gear ratio | 4:1 |
| Combination gear material | Bronze |
| Nominal torque | 0.34 Nm |
| Intermittent torque | 0.48 Nm |
| Motor part number | 775302 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 38 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 4.2 A |
| Motor no load speed | 3546 rpm |
| Motor no load current | 0.50 A |
| Motor continuous torque | 0.12 Nm |
| Motor intermittent torque | 0.17 Nm |
| Motor length L | 110 mm |
| Motor weight | 0.70 Kg |
| Gearbox part number | S4B |
| Gearbox ratio | 4:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm spur |
| Gearbox max continuous torque | 4.5 Nm |
| Gearbox max intermittent torque | 7.20 Nm |
| Gearbox efficiency | 70% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 150 N |
| Gearbox radial load | 250 N |
| Gearbox length | 59 mm |
| Gearbox weight | 0.40 Kg |
| Weight (kg) | 1.10 |

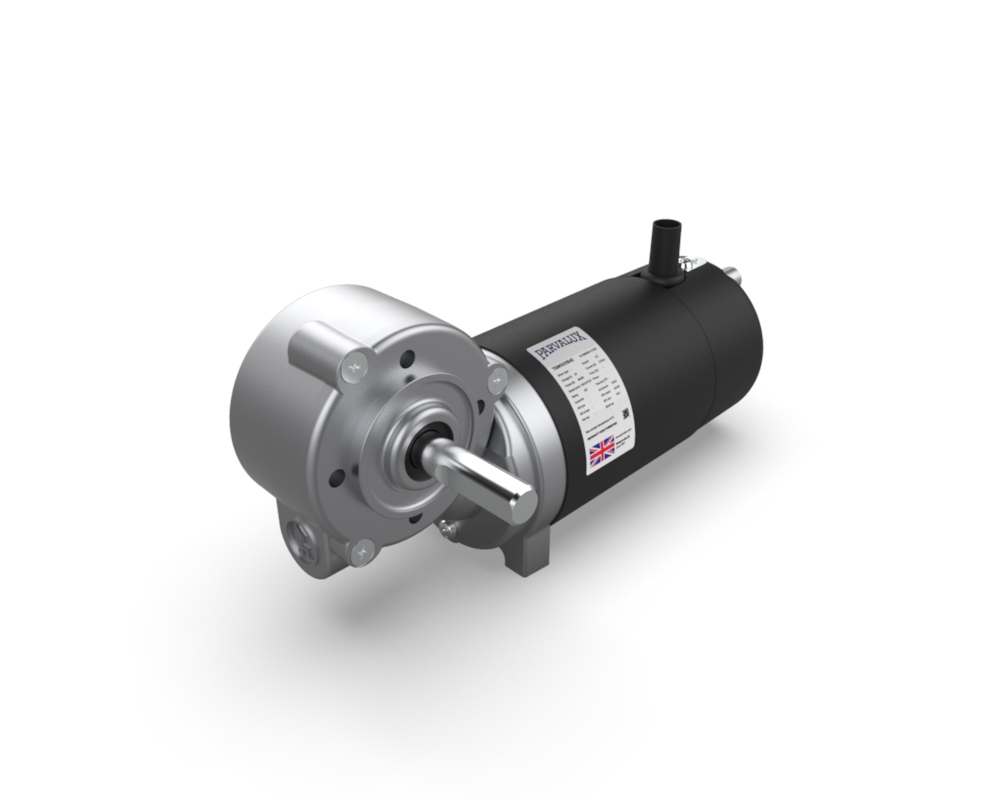

PM9 12V 3000 RPM – S Box 4:1 Bronze
Part No:912S4B
L: 169.0 × W: 56.0 × H: 84.0mm
PM9 12V 3000 RPM - S Box 4:1 Bronze - PMDC geared right-angle motor - 12 V - Delivers up to 0.48 Nm of torque (S2 - 15 minutes) - 4:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM9 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 220V DC and output power up to 38 Watts. It is rated for nominal continuous torque up to 0.12 Nm (S1) and maximum intermittent torque up to 0.17 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
