| Part number | 712S4C |
|---|---|
| Voltage | 12 V |
| Nominal power | 15 W |
| Nominal speed | 750 rpm |
| Combination gear ratio | 4:1 |
| Combination gear material | Composite |
| Nominal torque | 0.16 Nm |
| Intermittent torque | 0.23 Nm |
| Motor part number | 775282 |
| Motor type | PMDC |
| Motor voltage | 12 V |
| Motor power | 15 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 2.11 A |
| Motor no load speed | 3743 rpm |
| Motor no load current | 0.40 A |
| Motor continuous torque | 0.05 Nm |
| Motor intermittent torque | 0.08 Nm |
| Motor length L | 84 mm |
| Motor weight | 0.50 Kg |
| Gearbox part number | S4C |
| Gearbox ratio | 4:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm spur |
| Gearbox max continuous torque | 3.0 Nm |
| Gearbox max intermittent torque | 4.80 Nm |
| Gearbox efficiency | 80% |
| Gearbox gear material | Composite |
| Gearbox axial load | 150 N |
| Gearbox radial load | 250 N |
| Gearbox length | 59 mm |
| Gearbox weight | 0.30 Kg |
| Weight (kg) | 0.80 |

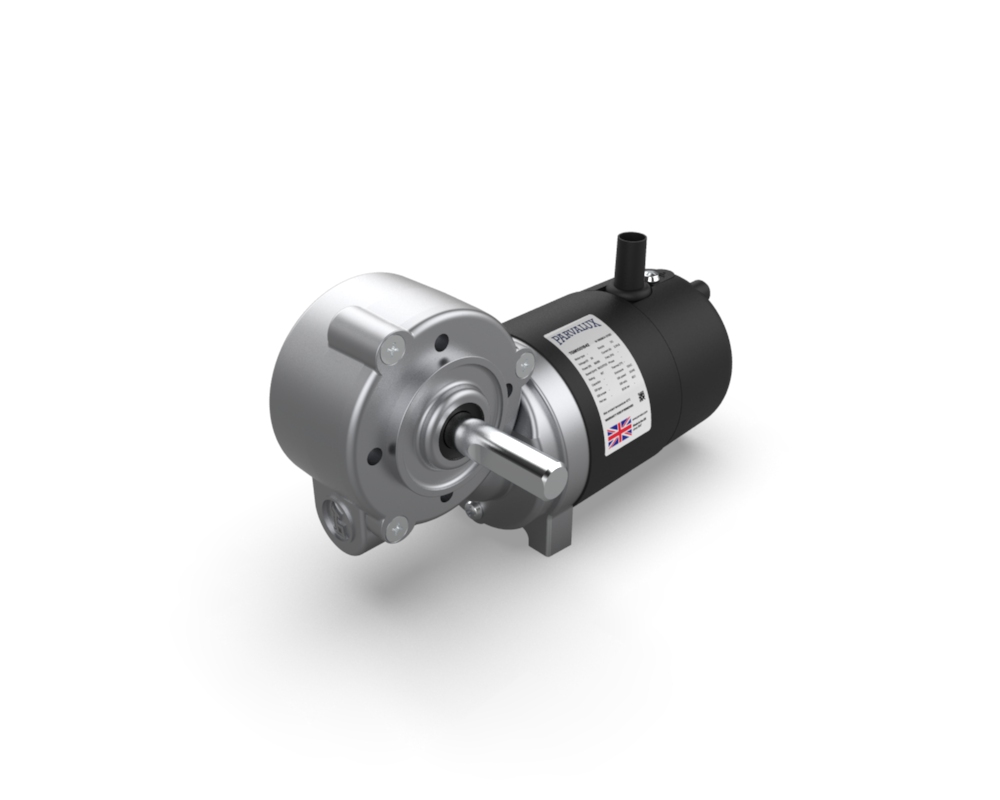

PM7 12V 3000 RPM – S Box 4:1 Composite
Part No:712S4C
L: 143.0 × W: 56.0 × H: 84.0mm
PM7 12V 3000 RPM - S Box 4:1 Composite - PMDC geared right-angle motor - 12 V - Delivers up to 0.23 Nm of torque (S2 - 15 minutes) - 4:1 gear ratio with composite gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM7 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 48V DC and output power up to 15 Watts. It is rated for nominal continuous torque up to 0.05 Nm (S1) and maximum intermittent torque up to 0.08 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
