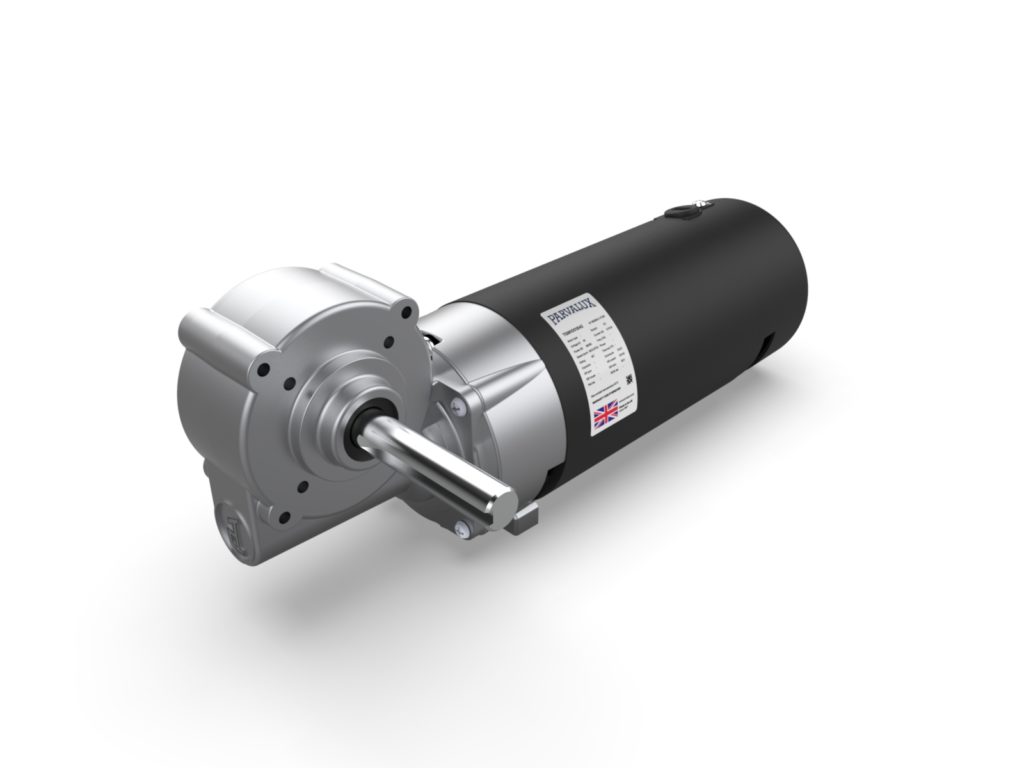

PM60 48V 3000 RPM – M Box 30:1 Composite
Part No:6048M30C
PM60 48V 3000 RPM PMDC motor with M Box 30:1 Standard, composite gearsDownload Datasheet
| Motor Type | PMDC |
| Motor Poles | 2 |
| Nominal continuous torque | 8.0 Nm |
| Max intermittent torque | 13.0 Nm |
| Nominal power | 273 W |
| Nominal speed | 100 rpm |
| Nominal continuous current | 8.0 A |
| No load speed | 119 rpm |
| No load current | 0.77 A |
| Stack length | 81 mm |
| Motor IP rating | IP21 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 30:1 ratio |
| Gear Material | Composite |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 70% |
| Gearbox Axial Load | 300 N |
| Gearbox Radial Load | 350 N |
| Backlash | 10-25 arc.min |
| Max ambient temperature | 40°C |
| Weight | 3.6 Kg |
| Enclosure | Ventilated |
| Insulation class | F |
| Reversible | Yes |
| Weight (kg) | 3.6 |
The Parvalux PM60 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V – 220V DC and output power up to 273 Watts. When combined with our M gearbox, the wide selection of gear ratios, as well as the choice of bronze or composite gears, allows for a nominal continuous output torque of up to 12.0 Nm (S1) and maximum intermittent torque of up to 19.0 Nm (S3). Contact our sales team today to discuss the additional options available with this unit, including brakes, encoders, output shaft customisation, etc.
