| Part number | 775161 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 48 V |
| Nominal power | 210 W |
| No load speed | 3641 rpm |
| No load current | 0.52 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 6.2 A |
| Nominal continuous torque | 0.67 Nm |
| Max intermittent torque | 1.17 Nm |
| Stall current | 40.4 A |
| Stall torque | 4.7 Nm |
| Maximum efficiency | 75% |
| Thermal resistance Ra | 1.19 Ohms |
| Speed constant | 71 rpm/V |
| Torque constant | 0.120 Nm/A |
| Speed torque gradient | 777 rpm/Nm |
| Rotor inertia | 4600 gcm² |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 81 mm |
| Motor length | 180 mm |
| Weight | 2.90 Kg |
| Weight (kg) | 2.9 |

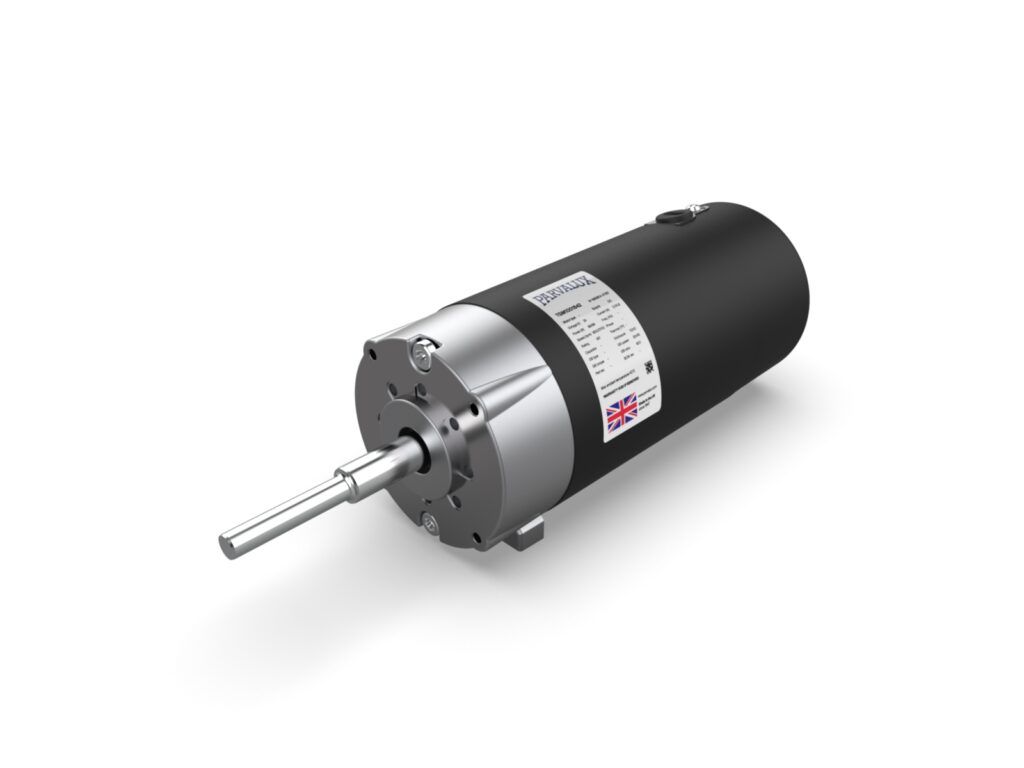

PM50 48V 3000 RPM
Part No:775161
L: 180 × W: 77 × H: 77mm
PM50 48V 3000 RPM - PMDC motor - 48 V - 210 W - Delivers up to 1.17 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux EPM50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 48v DC and output power up to 151 Watts. It is rated for continuous torque up to 0.48 Nm (S1) and maximum intermittent torque up to 0.80 Nm (S2 - 15min). It offers up to 81% efficiency. This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
