PM50 12V 3000 RPM – GB12 75:1 Composite









Nm (Cont)


Part No:50121275C

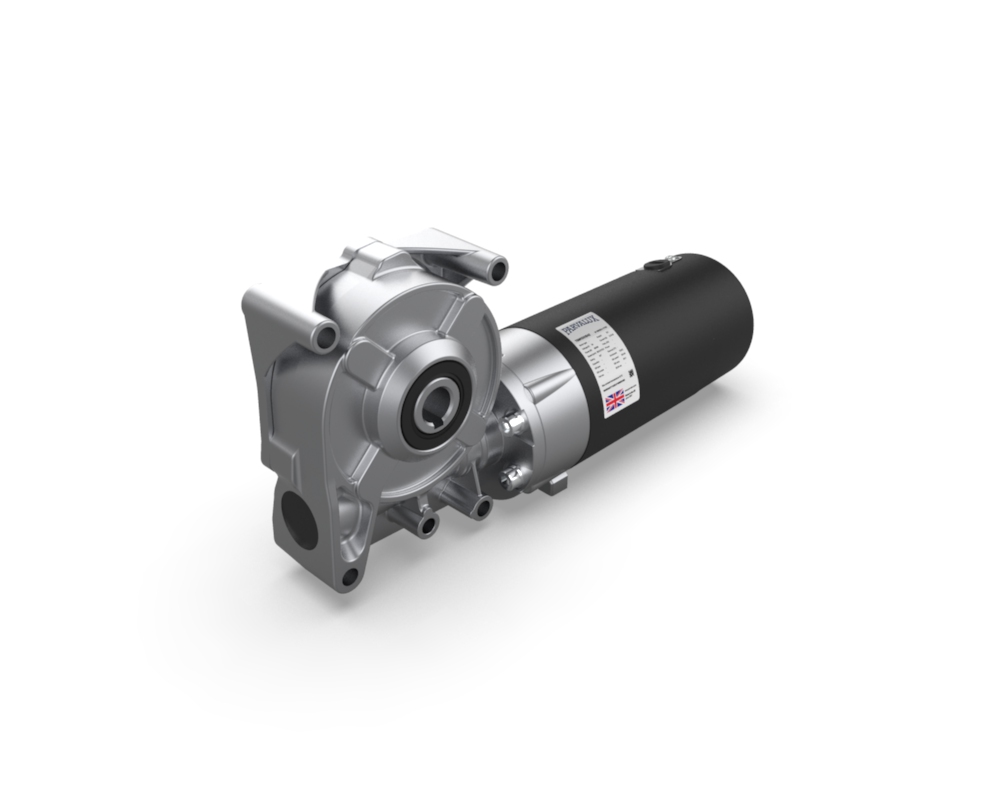

PM50 12V 3000 RPM PMDC motor with GB12 75:1 Standard, composite gears

This product cannot be purchased online.

Motor Type PMDC
Motor Poles 2
Nominal continuous torque 18.0 Nm
Max intermittent torque 29.0 Nm
Nominal power 210 W
Nominal speed 40 rpm
Nominal continuous current 22.5 A
No load speed 47 rpm
No load current 2.30 A
Stack length 81 mm
Motor IP rating IP54
Gearbox Orientation Right Angle
Gearbox Type Worm Wheel
Gearbox Ratio 75:1 ratio
Gear Material Composite
Gearbox Stages 1
Gearbox Efficiency 50%
Gearbox Axial Load 600 N
Gearbox Radial Load 800 N
Backlash 10-25 arc.min
Max ambient temperature 40°C
Weight 4.0 Kg
Enclosure Enclosed
Insulation class F
Reversible Yes
Weight (kg) 4

The Parvalux PM50 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v – 220v DC and output power up to 210 Watts. When combined with our GB12 gearbox, the wide selection of gear ratios, as well as the choice of bronze or composite gears, allows for a nominal continuous output torque of up to 22.6 Nm (S1) and maximum intermittent torque of up to 37.9 Nm (S3). Contact our sales team today to discuss the additional options available with this unit, including brakes, encoders, output shaft customisation, etc.
