| Part number | 774945 |
|---|---|
| Motor type | PMDC |
| Nominal voltage | 220 V |
| Nominal power | 170 W |
| No load speed | 3726 rpm |
| No load current | 0.11 A |
| Nominal speed | 3000 rpm |
| Nominal continuous current | 1.1 A |
| Nominal continuous torque | 0.54 Nm |
| Max intermittent torque | 0.70 Nm |
| Stall current | 1.1 A |
| Stall torque | 3.3 Nm |
| Maximum efficiency | 74% |
| Thermal resistance Ra | 36.00 Ohms |
| Speed constant | 16 rpm/V |
| Torque constant | 0.550 Nm/A |
| Speed torque gradient | 1136 rpm/Nm |
| Rotor inertia | 3250 gcm² |
| Radial load | 200 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Motor poles | 2 |
| Stack length | 69 mm |
| Motor length | 162 mm |
| Weight | 2.70 Kg |
| Weight (kg) | 2.7 |

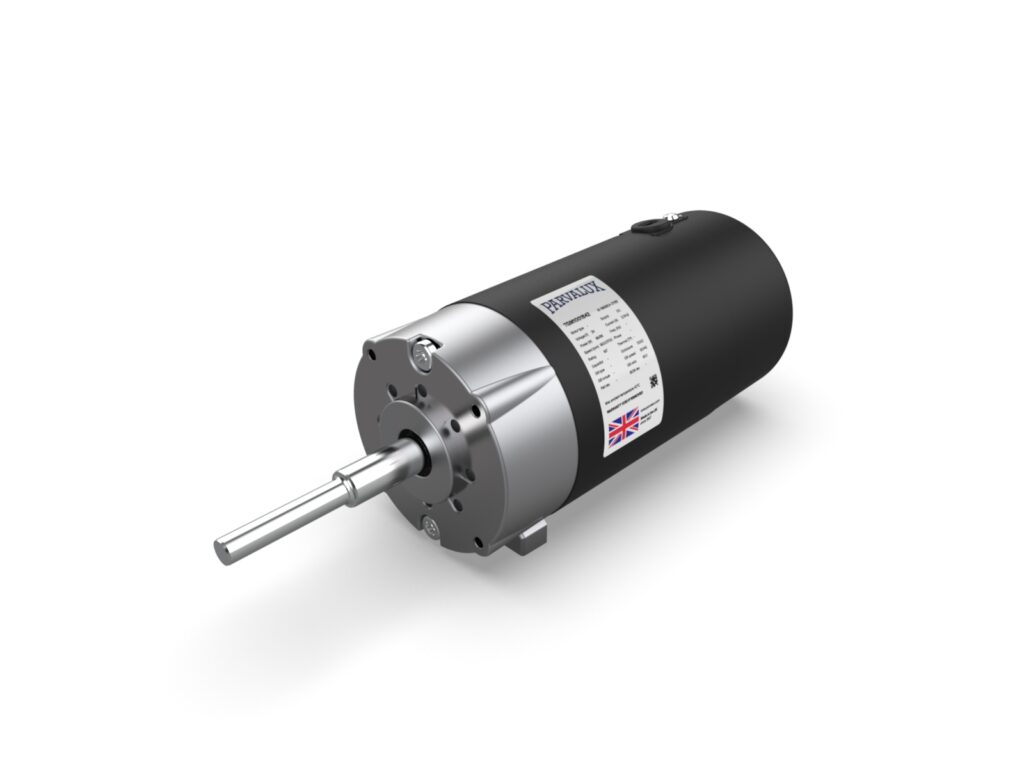

PM5 220V 3000 RPM
Part No:774945
L: 162 × W: 77 × H: 77mm
PM5 220V 3000 RPM - PMDC motor - 220 V - 170 W - Delivers up to 0.70 Nm of torque - Standard motor - please contact your local sales engineer for details on your customisation options
The Parvalux PM5 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 24v - 220v DC and output power up to 170 Watts. It is rated for nominal continuous torque up to 0.54 Nm (S1) and maximum intermittent torque up to 0.70 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
