| Part number | 11482815B |
|---|---|
| Voltage | 48 V |
| Nominal power | 101 W |
| Nominal speed | 200 rpm |
| Combination gear ratio | 15:1 ratio |
| Combination gear material | Bronze |
| Nominal torque | 3.6 Nm |
| Intermittent torque | 6.0 Nm |
| Motor part number | 775331 |
| Motor type | PMDC |
| Motor voltage | 48 V |
| Motor power | 101 W |
| Motor output speed | 3000 rpm |
| Motor continuous current | 1.2 A |
| Motor no load speed | 3844 rpm |
| Motor no load current | 0.23 A |
| Motor continuous torque | 0.32 Nm |
| Motor intermittent torque | 0.53 Nm |
| Motor length L | 126 mm |
| Motor weight | 1.60 Kg |
| Gearbox part number | 735904 |
| Gearbox ratio | 15:1 ratio |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 5.0 Nm |
| Gearbox max intermittent torque | 8.0 Nm |
| Gearbox efficiency | 75% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 300 N |
| Gearbox radial load | 400 N |
| Gearbox length | 88 mm |
| Gearbox weight | 0.83 Kg |
| Weight (kg) | 2.40 |

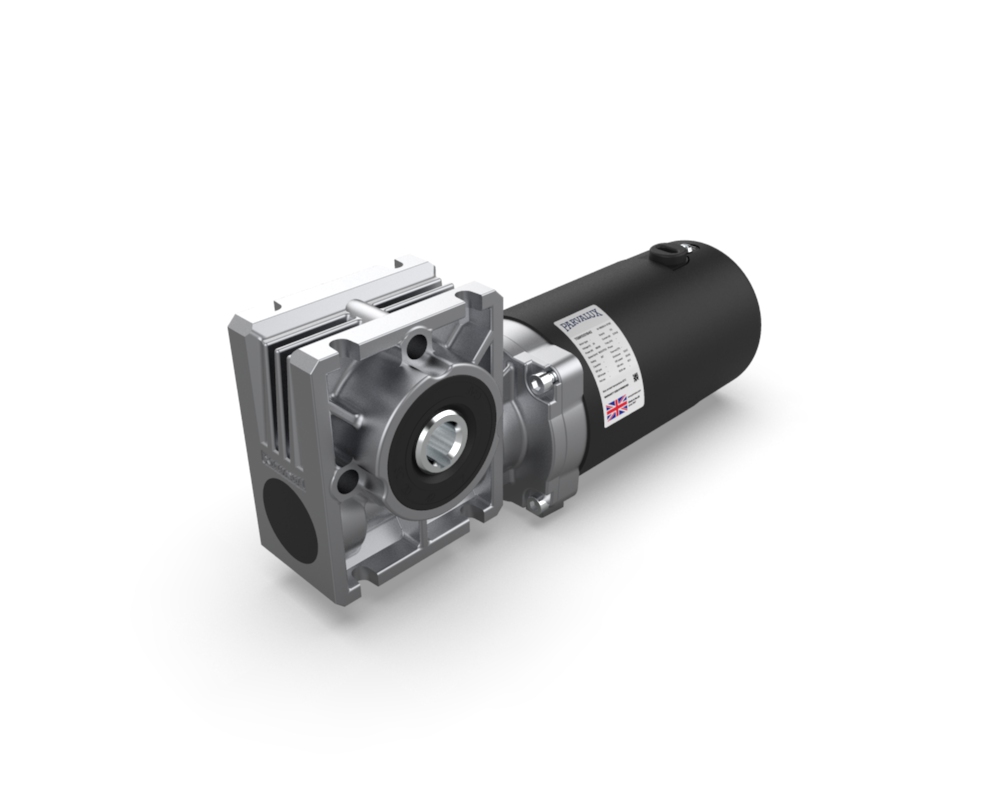

PM11 48V 3000 RPM – GB28 15:1 Bronze
Part No:11482815B
L: 214.0 × W: 66.0 × H: 93.0mm
PM11 48V 3000 RPM - GB28 15:1 Bronze - PMDC geared right-angle motor - 48 V - Delivers up to 6.0 Nm of torque (S2 - 15 minutes) - 15:1 gear ratio with bronze gears - Standard combination - please contact your local sales engineer for details on your customisation options
The Parvalux PM11 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12v - 220v DC and output power up to 101 Watts. It is rated for nominal continuous torque up to 0.32 Nm (S1) and maximum intermittent torque up to 0.53 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
