| Motor Type | PMDC |
|---|---|
| Motor Poles | 2 |
| Nominal continuous torque | 2.7 Nm |
| Max intermittent torque | 3.9 Nm |
| Nominal power | 45 W |
| Nominal speed | 100 rpm |
| Nominal continuous current | 6.0 A |
| No load speed | 140 rpm |
| No load current | 0.70 A |
| Stack length | 26 mm |
| Motor IP rating | IP54 |
| Gearbox Orientation | Right Angle |
| Gearbox Type | Worm Wheel |
| Gearbox Ratio | 30:1 ratio |
| Gear Material | Bronze |
| Gearbox Stages | 1 |
| Gearbox Efficiency | 65% |
| Gearbox Axial Load | 300 N |
| Gearbox Radial Load | 400 N |
| Backlash | 10-25 arc.min |
| Weight | 1.1 Kg |
| Enclosure | Enclosed |
| Insulation class | F |
| Reversible | Yes |
| Weight (kg) | 1.9 |

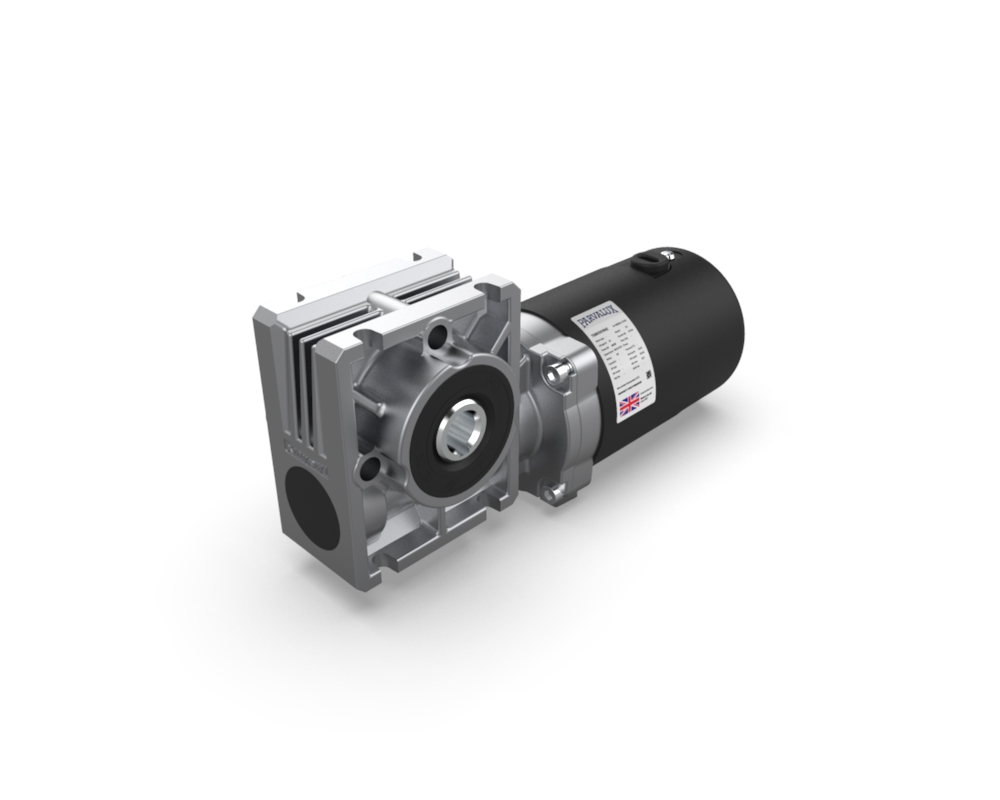

PM10 12V 3000 RPM – GB28 30:1 Bronze
Part No:10122830B
PM10 12V 3000 RPM PMDC motor with GB28 30:1 Standard, bronze gears
The Parvalux PM10 is a permanent magnet direct current (DC) motor. It is available in a range of options with voltages from 12V - 220V DC and output power up to 45 Watts. It is rated for nominal continuous torque up to 0.14 Nm (S1) and maximum intermittent torque up to 0.2 Nm (S2-15min). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
