| Gearbox part number | PGx70-44 |
|---|---|
| Gearbox ratio | 44:1 |
| Gearbox orientation | Inline |
| Gearbox type | Planetary |
| Gearbox gear material | Steel |
| Gearbox stages | 2 |
| Gearbox continuous torque | 30.0 Nm |
| Gearbox intermittent torque | 37.5 Nm |
| Gearbox axial load | 825 N |
| Gearbox radial load | 1000 N |
| Gearbox efficiency | 92% |
| Gearbox backlash | 30 arc.min |
| Gearbox length stage | 79.9 mm |
| Gearbox weight | 1.45 Kg |
| Weight (kg) | 1.45 |

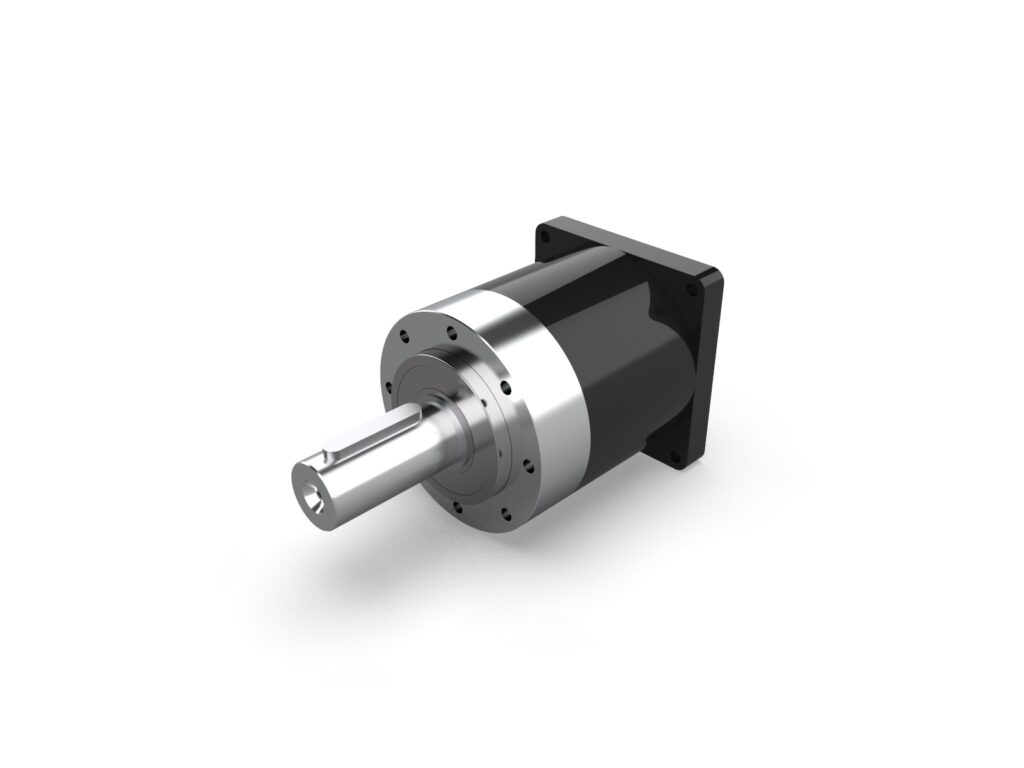

PGx70 44:1 Steel
Part No:PGx70-44
L: 79.9 × W: 70.0 × H: 70.0mm
PGx70 44:1 Steel - Planetary gearbox - 44:1 gear ratio - Delivers up to 37.5 Nm of torque (S2 - 15 minutes) - Steel gears - Standard gearbox - please contact your local sales engineer for details on your customisation options
The PGx70 planetary gearbox is available in gear ratios of 3.9 - 44:1 and provides a torque output of up to 37.5 Nm in intermittent operation, making it perfectly suited for light to medium duty applications when combined with a Parvalux brushed or brushless motor.
