| Gearbox part number | PGx42 |
|---|---|
| Gearbox ratio | 4 :1 - 72:1 |
| Gearbox orientation | Inline |
| Gearbox type | Planetary |
| Gearbox gear material | Steel |
| Gearbox stages | 1 - 4 |
| Gearbox continuous torque | 2.3 - 11.3 Nm |
| Gearbox intermittent torque | 3.4 - 16.9 Nm |
| Gearbox axial load | 150 N |
| Gearbox radial load | 120 - 360 N |
| Gearbox efficiency | 64 - 90% |
| Gearbox backlash | 36 - 60 arc.min |
| Gearbox length stage | 37.3 mm [1], 51.8 mm [2], 66.3 mm [3], 80.8 mm [4] |
| Gearbox weight | 0.26 - 0.56 Kg |
| Weight (kg) | 026-0.56 |

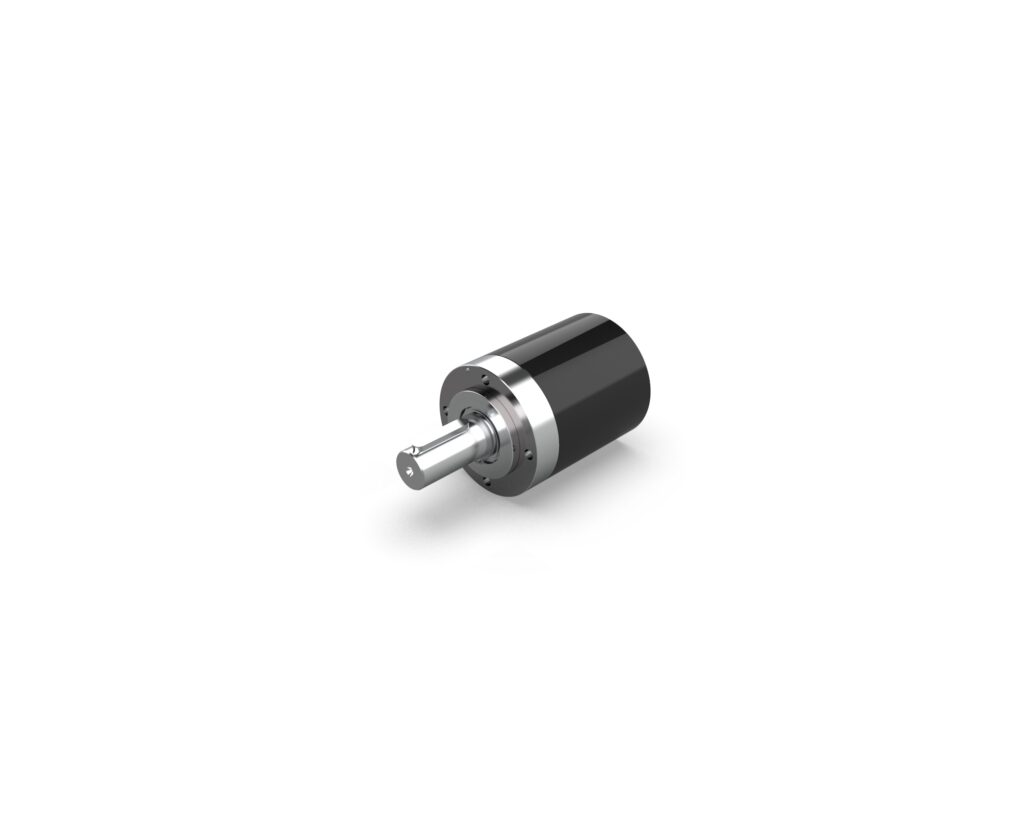

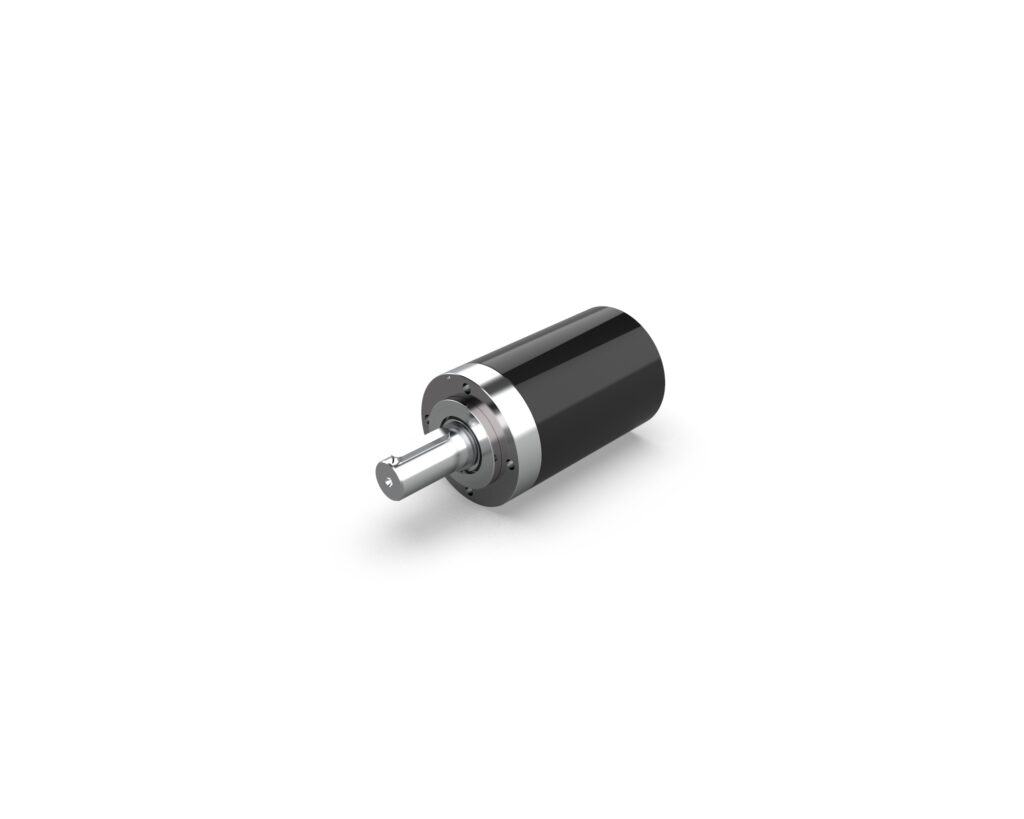

PGx42 Range
Part No:PGx42
L: 373-80.8 × W: 42.0 × H: 42.0mm
PGx42 range - Planetary gearbox - Available in ratios of 3.5:1 - 936:1 - Delivers up to 16.9 Nm of torque (S2 - 15 minutes) - Steel gears - 4.3:1, 19:1, 66:1, 150:1, and 353:1 gear ratios available as part of the modular range
This product comes in multiple variations. Get in touch to discuss your exact requirements.
| Product name | Nm (Cont.) | Nm (Int) | |
|---|---|---|---|
|
PART NO: PG42-3.5 PGx42 3.5:1 Steel |
2.3 | 3.4 | |
|
PART NO: 891037 PGx42 4.3:1 Steel |
2.3 | 3.4 | |
|
PART NO: PGx42-12 PGx42 12:1 Steel |
5.6 | 8.5 | |
|
PART NO: 891038 PGx42 19:1 Steel |
5.6 | 8.5 | |
|
PART NO: 891039 PGx42 66:1 Steel |
11.3 | 16.9 | |
|
PART NO: PGx42-126 PGx42 126:1 Steel |
11.3 | 16.9 | |
|
PART NO: 891040 PGx42 150:1 Steel |
11.3 | 16.9 | |
|
PART NO: 891041 PGx42 353:1 Steel |
11.3 | 16.9 | |
|
PART NO: PGx42-676 PGx42 676:1 Steel |
11.3 | 16.9 | |
|
PART NO: PGx42-936 PGx42 936:1 Steel |
11.3 | 16.9 |
The PGx42 planetary gearbox is available in gear ratios of 3.5 - 936:1 and provides a torque output of up to 16.3 Nm in intermittent operation, making it perfectly suited for light to medium duty applications. It is also available as part of modular range in ratios of 4.3:1, 19:1, 66:1, 150:1and 353:1 and can be configured with a number of our modular motors and ordered direct from our website when combined with our modular motors in quantities of up to 10 pieces on a 72 hour turnaround.
