PBL86-80-GB65 Range

Speed (rpm)

25 - 200

Power (Watts)

586

Volts (v)

48

Torque Nom. (Nm)

22.7 - 120.0

Torque Int (Nm)

39.7 - 235.2

Part No:PBL86-80-GB65

L: 297 × W: 90 × H: 175mm

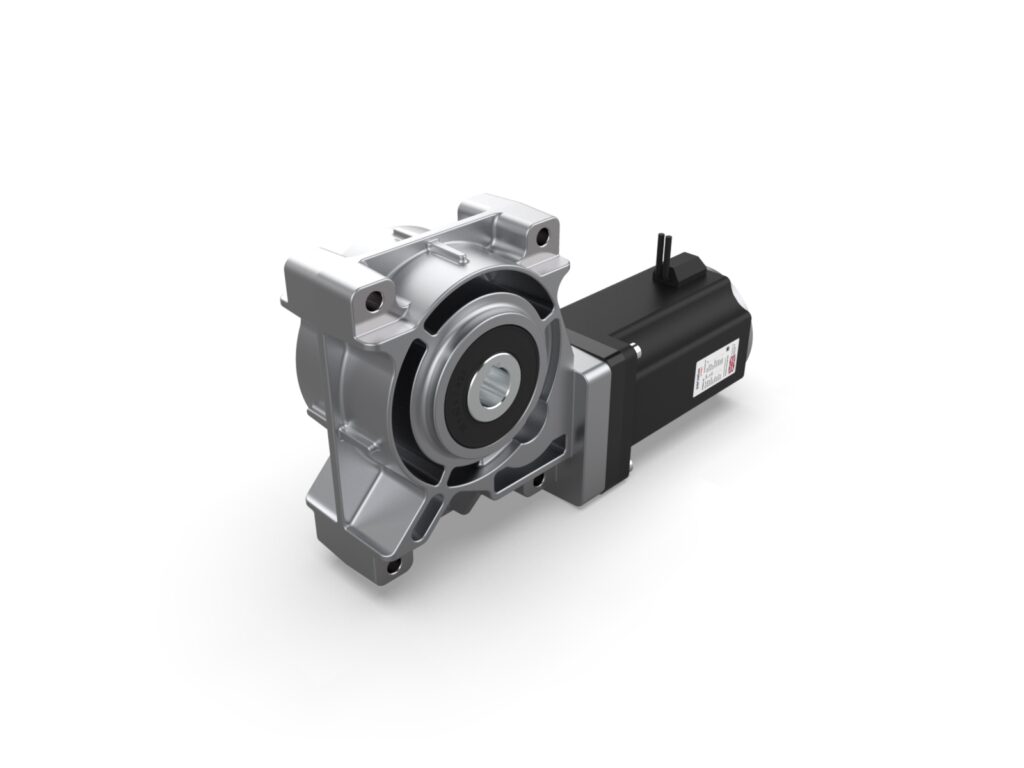

PBL86-80-GB65 range - BLDC geared right-angle motor - Available in voltages of 12 - 48 V - Delivers up to 235.2 Nm of torque (S2 - 15 minutes) - Bronze / steel gears - 20:1, 40:1, 80:1, 120:1 and 160:1 gear ratios available as part of the modular range

This product comes in multiple variations. Get in touch to discuss your exact requirements.

Product name Speed (rpm) Power (Watts) Volts (v) Torque Nom. (Nm) Torque Int (Nm)

PART NO: 776625-827934

PBL86-80 48V 4000RPM – GB65 120:1 Steel / Bronze

 33 586 48 109.2 191.1

PART NO: 776625-854060

PBL86-80 48V 4000RPM – GB65 20:1 Steel / Bronze

 200 586 48 22.7 39.7

PART NO: 776625-853270

PBL86-80 48V 4000RPM – GB65 40:1 Steel / Bronze

 100 586 48 42.6 74.5

PART NO: 776625-GB65-60

PBL86-80 48V 4000RPM – GB65 60:1 Steel / Bronze

 67 586 48 63 110.3

PART NO: 776625-827936

PBL86-80 48V 4000RPM – GB65 80:1 Steel / Bronze

 50 586 48 78.4 137.2

PART NO: 776625-GB65-100

PBL86-80 48V 4000RPM – GB65 100:1 Steel / Bronze

 40 586 48 91 159.3

PART NO: 776625-827943

PBL86-80 48V 4000RPM – GB65 160:1 Steel / Bronze

 25 586 48 120 235.2

Part no 776625-827934

PBL86-80 48V 4000RPM – GB65 120:1 Steel / Bronze

Speed (rpm) 33
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 109.2
Torque Int (Nm) 191.1
View Datasheet Configure

Part no 776625-854060

PBL86-80 48V 4000RPM – GB65 20:1 Steel / Bronze

Speed (rpm) 200
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 22.7
Torque Int (Nm) 39.7
View Datasheet

Part no 776625-853270

PBL86-80 48V 4000RPM – GB65 40:1 Steel / Bronze

Speed (rpm) 100
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 42.6
Torque Int (Nm) 74.5
View Datasheet

Part no 776625-GB65-60

PBL86-80 48V 4000RPM – GB65 60:1 Steel / Bronze

Speed (rpm) 67
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 63
Torque Int (Nm) 110.3
View Datasheet

Part no 776625-827936

PBL86-80 48V 4000RPM – GB65 80:1 Steel / Bronze

Speed (rpm) 50
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 78.4
Torque Int (Nm) 137.2
View Datasheet

Part no 776625-GB65-100

PBL86-80 48V 4000RPM – GB65 100:1 Steel / Bronze

Speed (rpm) 40
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 91
Torque Int (Nm) 159.3
View Datasheet

Part no 776625-827943

PBL86-80 48V 4000RPM – GB65 160:1 Steel / Bronze

Speed (rpm) 25
Power (Watts) 586
Volts (v) 48
Torque Nom. (Nm) 120
Torque Int (Nm) 235.2
View Datasheet
Motor Type BLDC
Motor Poles 2
Rated Motor Power 586 W
Stack Length 80 mm
Motor IP Rating IP54
Gearbox Orientation Right Angle
Gearbox Type Worm Wheel
Gearbox Ratio 20 - 160:1
Gear Material Bronze / steel
Gearbox Stages 1
Gearbox Efficiency 60 - 81%
Gearbox Radial Load 2335 N
Motor length 136 mm
Gearbox length 151 mm
Weight (kg) 7.8
The Parvalux PBL86-80-GB65 range is a modular motor and gearbox combination, offering motor voltages of 48 V and gearbox ratios of 20 - 160:1. The pairing of this motor and gearbox offers between 25 - 200 rpm and up to 235.2 Nm of torque in intermittent operation (S2 - 15 minutes). With many of the ratios of the GB65 available as part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
