| Part number | 776624 |
|---|---|
| Motor type | BLDC |
| Nominal voltage | 48 V |
| Nominal power | 419 W |
| No load speed | 4342 rpm |
| No load current | 1.20 A |
| Nominal speed | 4000 rpm |
| Nominal continuous current | 10.3 A |
| Nominal continuous torque | 1.00 Nm |
| Max intermittent torque | 1.40 Nm |
| Stall current | 93.00 A |
| Stall torque | 10.10 Nm |
| Maximum efficiency | 85% |
| Thermal resistance Ra | 0.09 Ohms |
| Speed constant | 90.8 rpm/V |
| Torque constant | 0.11 Nm/A |
| Speed torque gradient | 439.5 rpm/Nm |
| Rotor inertia | 2.04 x 10¯⁴ Kgm² |
| Radial load | 350 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | B |
| Winding type | Delta |
| Motor poles | 8 |
| Stack length | 55 mm |
| Motor length | 111 mm |
| Weight | 3.20 Kg |
| Weight (kg) | 3.20 |

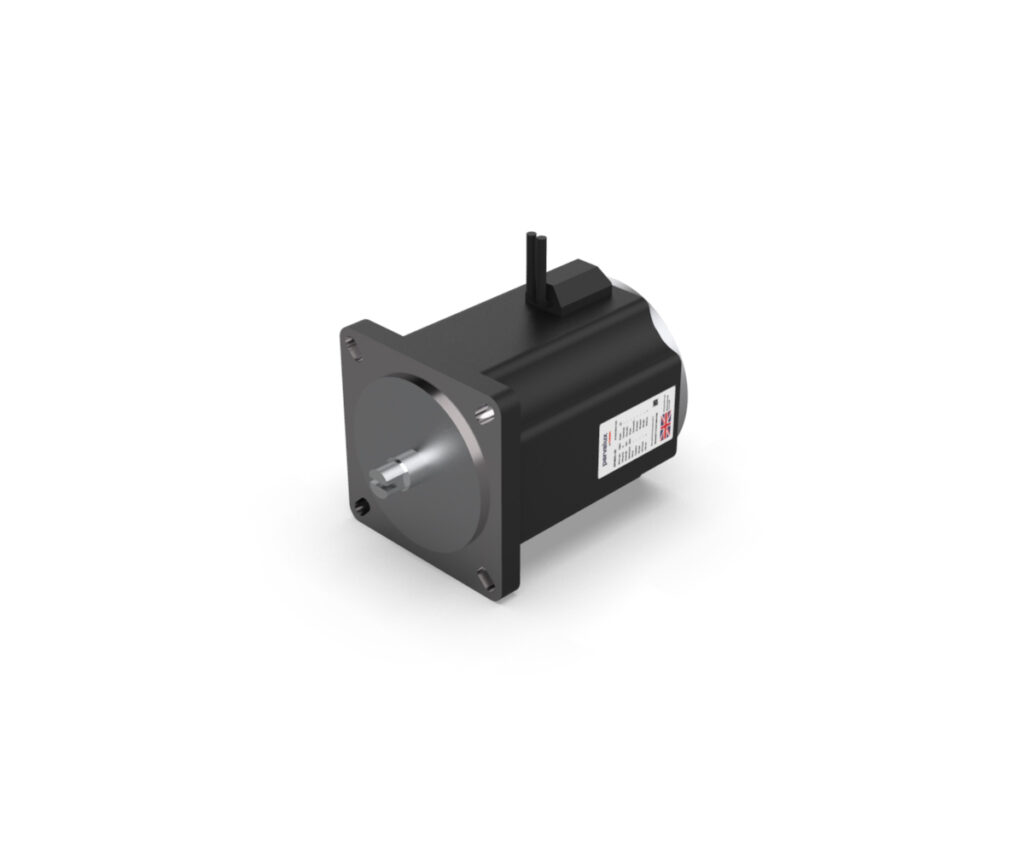

PBL86-55 48V 4000 RPM
Part No:776624
L: 111.0 × W: 86.0 × H: 86.0mm
PBL86-55 48V 4000 RPM - BLDC motor - 48 V - 419 W - Delivers up to 1.80 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
The Parvalux PBL86 is a brushless direct current (BLDC) motor. It is available with a voltage of 48V DC and output power up to 586 Watts. It is rated for nominal continuous torque up to 1.4 Nm (S1) and maximum intermittent torque up to 2.5 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
