| Part number | PBL70-80-GB9 |
|---|---|
| Voltage | 48 V |
| Nominal power | 415 W |
| Nominal speed | 75 - 300 rpm |
| Combination gear ratio | 15 - 60:1 |
| Combination gear material | Bronze |
| Nominal torque | 9.9 - 26.4 Nm |
| Intermittent torque | 17.3 - 46.2 Nm |
| Motor part number | PBL70 |
| Motor type | BLDC |
| Motor voltage | 48 V |
| Motor power | 415 W |
| Motor output speed | 4500 rpm |
| Motor continuous current | 9.6 A |
| Motor no load speed | 4902 rpm |
| Motor no load current | 1.50 A |
| Motor continuous torque | 0.88 Nm |
| Motor intermittent torque | 1.54 Nm |
| Motor length (L) | 124 mm |
| Motor weight | 2.6 Kg |
| Gearbox part number | GB12 |
| Gearbox ratio | 15:1 - 60:1 |
| Gearbox orientation | Right angle |
| Gearbox type | Worm wheel |
| Gearbox max continuous torque | 30.0 Nm |
| Gearbox max intermittent torque | 48.0 Nm |
| Gearbox efficiency | 50 - 75% |
| Gearbox gear material | Bronze |
| Gearbox axial load | 600 N |
| Gearbox radial load | 800 N |
| Gearbox length | 110 mm |
| Gearbox weight | 1.50 Kg |
| Weight (kg) | 4.40 |

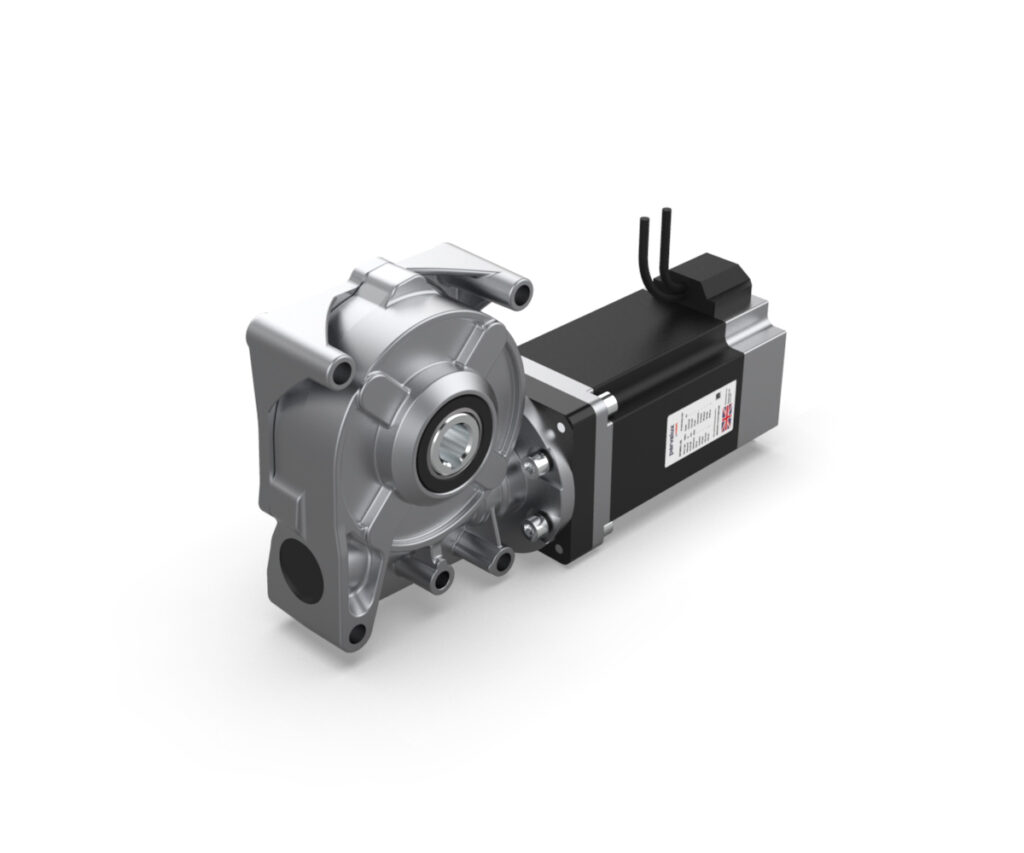

PBL70-80-GB12 Range
Part No:PBL70-80-GB9
L: 247.0 × W: 73.0 × H: 137.0mm
PBL70-80-GB12 range - BLDC right-angle geared motor - 48 V - 415 W - Delivers up to 46.2 Nm of torque - Modular combination - configure online and order in quantities of up to 10 pieces direct from our website
This product comes in multiple variations. Get in touch to discuss your exact requirements.
The Parvalux PBL70-80-GB9 range is a modular motor and gearbox combination, offering a motor voltage of 48 V and gearbox ratios of 15 - 60:1. The pairing of this motor and gearbox offers between 75 - 300 rpm and up to 46.2 Nm of torque in intermittent operation (S2 - 15 minutes). As part of the modular range, you can also add accessories such as brakes, encoders, and shaft extension kits to fine tune your combination to perfectly meet the requirements of your application.
