| Part number | 776623 |
|---|---|
| Motor type | BLDC |
| Nominal voltage | 48 V |
| Nominal power | 415 W |
| No load speed | 4902 rpm |
| No load current | 1.5 A |
| Nominal speed | 4500 rpm |
| Nominal continuous current | 9.6 A |
| Nominal continuous torque | 0.88 Nm |
| Max intermittent torque | 1.54 Nm |
| Stall current | 75.60 A |
| Stall torque | 7.30 Nm |
| Maximum efficiency | 82% |
| Thermal resistance (Ra) | 0.15 Ohms |
| Speed constant | 103.0 rpm/V |
| Torque constant | 0.10 Nm/A |
| Speed torque gradient | 691.7 rpm/Nm |
| Rotor inertia | 2.77 x 10¯⁴ Kgm² |
| Radial load | 350 N |
| Max ambient temperature | 40°C |
| Motor IP rating | IP54 |
| Enclosure | Enclosed |
| Insulation class | B |
| Winding type | Delta |
| Motor poles | 8 |
| Stack length | 80 mm |
| Motor length | 124 mm |
| Weight | 2.6 Kg |
| Weight (kg) | 2.60 |

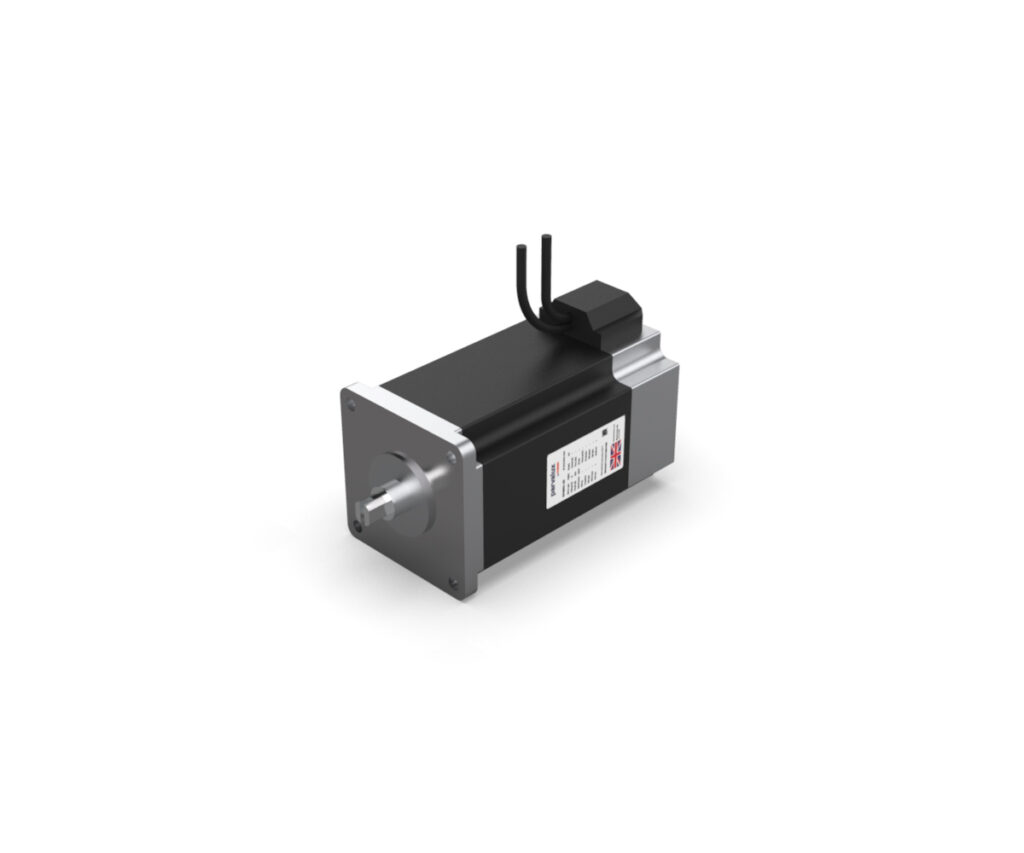

PBL70-80 48V 4500 RPM
Part No:776623
L: 124.0 × W: 70.0 × H: 70.0mm
PBL70-80 48V 4500 RPM - BLDC motor - 48 V - 415 W - Delivers up to 1.54 Nm of torque - Modular motor - configure online and order in quantities of up to 10 pieces direct from our website
Volume Discounts
| Quantity | Price |
|---|---|
| 1 - 4 | £552.45 / unit |
| 5 - 10 | £414.34 / unit |
| 10+ | Please Enquire |
49 in stock
The Parvalux PBL70 is a brushless direct current (BLDC) motor. It is available with a voltage of 48V DC and output power up to 276 Watts. It is rated for nominal continuous torque up to 0.77 Nm (S1) and maximum intermittent torque up to 1.5 Nm (S2 - 15 mins). This motor is perfectly suited for use with a range of Parvalux right-angle and inline gearboxes enabling you to assemble the perfect geared motor combination for your application.
